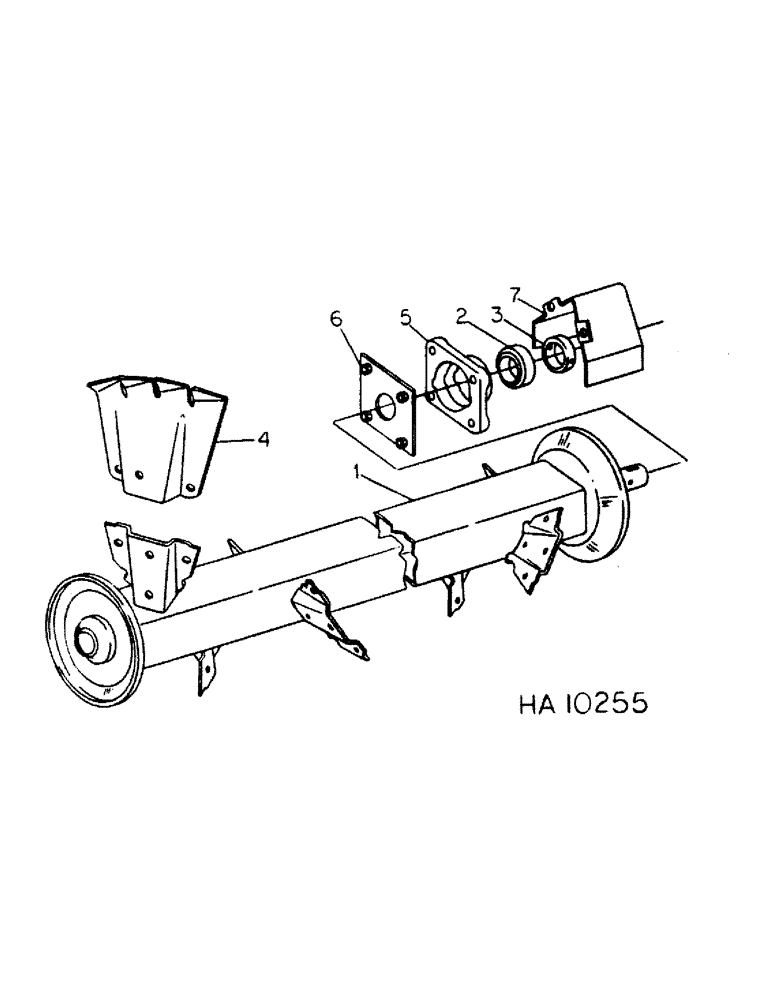

Запчасти Case IH 555 (A-58) - WIDESPREAD

1

820475C1

ROTATOR

WIDESPREAD ASSY, 530

1шт.

1

820476C1

ROTATOR

WIDESPREAD ASSY, 540, 550, 555 and 560

1шт.

22337R1

PIN,1/4" x 2 1/2", Coiled

1шт.

2

1414239R91

BALL BEARING

widespread shaft

1шт.

3

COLLAR ASSY, bearing locking, includes 1-139042 screw, for service order 1-517645R11 collar assy

1шт.

139042

BAR

5/16-24 x 5/16 hdls hex soc

1шт.

3

517645R11

COLLAR

ASSY, bearing locking, includes 1-102592 screw

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hdls-cup-pt

1шт.

4

820471C1

PLATE

widespread LH, 530

6шт.

4

820472C1

PLATE

widespread RH, 530

6шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

24шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

24шт.

120384

WASHER,1/2"

LOCK, 1/2"

24шт.

4

820471C1

PLATE

widespread LH, 540, 550 & 555

8шт.

4

820472C1

PLATE

widespread RH, 540, 550 & 555

8шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

32шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

32шт.

120384

WASHER,1/2"

LOCK, 1/2"

32шт.

4

820471C1

PLATE

widespread LH, 560

8шт.

4

820472C1

PLATE

widespread RH, 560

8шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 type 8

32шт.

21330R1

NUT,1/2"-13, G8

1/2 type 8

32шт.

5

820356C1

HOUSING

bearing

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

820363C1

BAR

ASSY, bearing housing support

1шт.

22482R1

WASHER

1.406 x 2.250 x .105

4шт.

7

821797C1

SHIELD

widespread shaft RH

1шт.
