Запчасти Case IH 555 (A-53) - WIDESPREAD AND APRON DRIVE CONTROLS, 530, 540 AND 550 MODELS

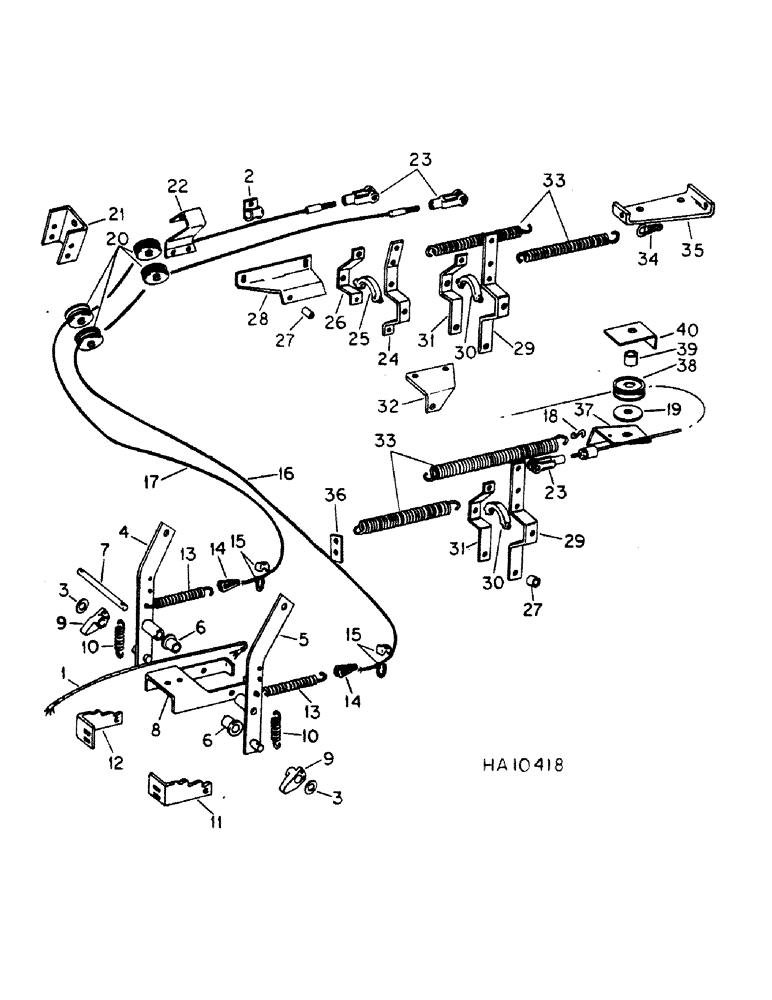

Схема запчастей Case IH 555 - (A-53) - WIDESPREAD AND APRON DRIVE CONTROLS, 530, 540 AND 550 MODELS

Артикул

Название

Примечание

Количество

1

ROPE, lever control, 1/4 x 12 ft nylon braided, dealer to purchase locally

1шт.

2

820597C2

GUIDE

cable

1шт.

3

178374R1

WASHER

.531 x 1.250 x .054

4шт.

4

820337C1

LEVER

ASSY, widespread control, for service order 1-822509C1 lever assy

1шт.

4

822509C1

LEVER

ASSY, widespread control

1шт.

5

820338C1

LEVER ASSY, apron drive control, for service order 1-822508C1 lever assy

1шт.

5

822508C1

LEVER

ASSY, apron drive control

1шт.

6

820317C1

BUSHING

lever pivot

4шт.

7

820489C1

PIN

lever pivot

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

8

820486C2

CHANNEL

lever pivot pin support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

.406 x 1.00 x .056

1шт.

9

820343C1

PAWL

control lever sector

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

10

34A

SPRING

pawl

2шт.

11

820487C1

SECTOR

apron drive control lever, for service order 1-822512C1 sector

1шт.

11

822512C1

SECTOR

apron drive control lever

1шт.

12

820488C1

SECTOR

widespread control lever, for service order 1-822511C1 sector

1шт.

12

822511C1

SECTOR

widespread control lever

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 carriage

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

.344 x .750 x .054

4шт.

13

821365C1

SPRING

control cable front tension, for service order 357832R1 spring

2шт.

13

357832R1

SPRING

control cable front tension

2шт.

14

457796R1

EYE

control cable

2шт.

15

480472R1

CLIP

CLAMP, control cable, replaces 457797R1

4шт.

16

CABLE ASSY, apron drive control, for service on 530 spreader built serial no. 2239 and below order 1-820399C2 cable and cut to length required

1шт.

16

CABLE ASSY, apron drive control, for service on 540 spreader built serial no. 2683 and below order 1-820399C2 cable and cut to length required

1шт.

16

CABLE ASSY, apron drive control, for service on 550 spreader built serial no. 1841 and below order 1-820399C2 cable and cut to length required

1шт.

16

CABLE ASSY, apron drive control, for 530 spreader w/serial no. 2240 and above order 1-820399C2 cable 225.7 inches in length and cut to 175.7 inches

1шт.

16

CABLE ASSY, apron drive control, for 540 spreader w/serial no. 2684 and above order 1-820399C2 cable 225.7 inches in length and cut to 182.7 inches

1шт.

16

CABLE ASSY, apron drive control, for 550 spreader w/serial no. 1842 and above order 1-820399C2 cable 225.7 inches in length and cut to 203.7 inches

1шт.

17

CABLE ASSY, widespread drive control, for service on 530 spreader built serial no. 2239 and below order 1-820399C2 cable and cut to length required

1шт.

17

CABLE ASSY, widespread drive control, for service on 540 spreader built serial no. 2683 and below order 1-820399C2 cable and cut to length required

1шт.

17

CABLE ASSY, widespread drive control, for service on 550 spreader built serial no. 1841 and below order 1-820399C2 cable and cut to length required

1шт.

17

CABLE ASSY, beater drive control, for 530 spreader w/serial no. 2240 and above order 1-820399C2 cable 225.7 inches in length and cut to 197.7 inches

1шт.

17

CABLE ASSY, beater drive control, for 540 spreader w/serial no. 2684 and above order 1-820399C2 cable 225.7 inches in length and cut to 203.7 inches

1шт.

17

CABLE ASSY, beater drive control, for 550 spreader w/serial no. 1842 and above order 1-820399C2 cable 225.7 inches in length

1шт.

820399C2

CABLE

ASSY, 225.7"

1шт.

18

822534C1

HOOK

s type spring connecting, replaces 587368R91 chain link, 530 serial no. 5509 and above, 540 serial no. 6327 and above, 550 serial no. and above

1шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

2шт.

19

21782R1

WASHER

.656 x 1.50 x .054

1шт.

20

820631C1

PULLEY

cable guide

4шт.

607893R1

WASHER

.203 x .500 x .056

6шт.

23668R1

CLEVIS PIN,3/16" x 1 3/4"

PIN, CLEVIS, 3/16" x 1 3/4"

2шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cotter

2шт.

21

820336C1

CHANNEL

front pulley mtg

1шт.

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

820335C1

SUPPORT

slide pulley

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4-28 adj rod end

2шт.

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end

2шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cotter

2шт.

24

820328C1

LEVER

apron drive clutch control, for service order 1-822231C1 lever

1шт.

24

822231C1

LEVER

apron drive clutch control

1шт.

25

820333C1

FORK

clutch shifter

1шт.

21118R1

LUBE NIPPLE,1/8" x .47" lg, Drive

FITTING, 1/8 str drive type

1шт.

26

820326C1

CLAMP

shifter frok retaining

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

820520C1

SPACER

lever pivot

2шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20600R1

WASHER

.281 x .750 x .105

2шт.

28

820327C1

SUPPORT

apron clutch control lever pivot

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

29

820324C1

LEVER

widespread drive clutch control, for service order 1-822513C1 lever

1шт.

29

822513C1

LEVER

widespread drive clutch control

1шт.

30

820333C1

FORK

YOKE, clutch shifter

1шт.

21118R1

LUBE NIPPLE,1/8" x .47" lg, Drive

FITTING, 1/8 str drive type

1шт.

31

820325C1

CLAMP

shifter yoke retainig

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

820323C1

SUPPORT

widespread clutch control lever pivot

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

33

617905R1

SPRING

widespread clutch control, 8 inch length, 530 serial no. 5508 and below, 540 serial no. 6326 and below, 550 serial no. and below

2шт.

34

820330C1

BOLT, return spring anchor eye, 530 serial no. 2239 and below, 540 serial no. 2683 and below, 550 serial no. 1841 and below

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

35

820322C1

SUPPORT

return spring anchor, 530 serial no. 2239 and below, 540 serial no. 2683 and below, 550 serial no. 1841 and below

1шт.

36

816792C1

STRAP

BAR, front spring anchor, 530 serial no. 2240 and above, 540 serial no. 2684 and above, 550 serial no. 1842 and above

1шт.

37

821052C2

ANGLE

rear pulley support, 530 serial no. 2240 and above, 540 serial no. 2684 and above, 550 serial no. 1842 and above

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 carriage

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

38

820652C1

PULLEY

widespread cable rear, 530 serial no. 2240 and above, 540 serial no. 2684 and above, 550 serial no. 1842 and above

1шт.

39

561277R1

SPACER,5/8" Tube x 1/2"

BUSHING, pulley, 530 serial no. 2240 and above, 540 serial no. 2684 and above, 550 serial no. 1842 and above

1шт.

40

820651C1

ANGLE

cable guide, 530 serial no. 2240 and above, 540 serial no. 2684 and above, 550 serial no. 1842 and above

1шт.

180214

BOLT, 3/8-16 x 1-1/4 hex hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

Выбрано товаров: 107
