Запчасти Case IH 555 (A-51) - SPREADER BOX, FRONT, 530, 540, 550 AND 555 MODELS

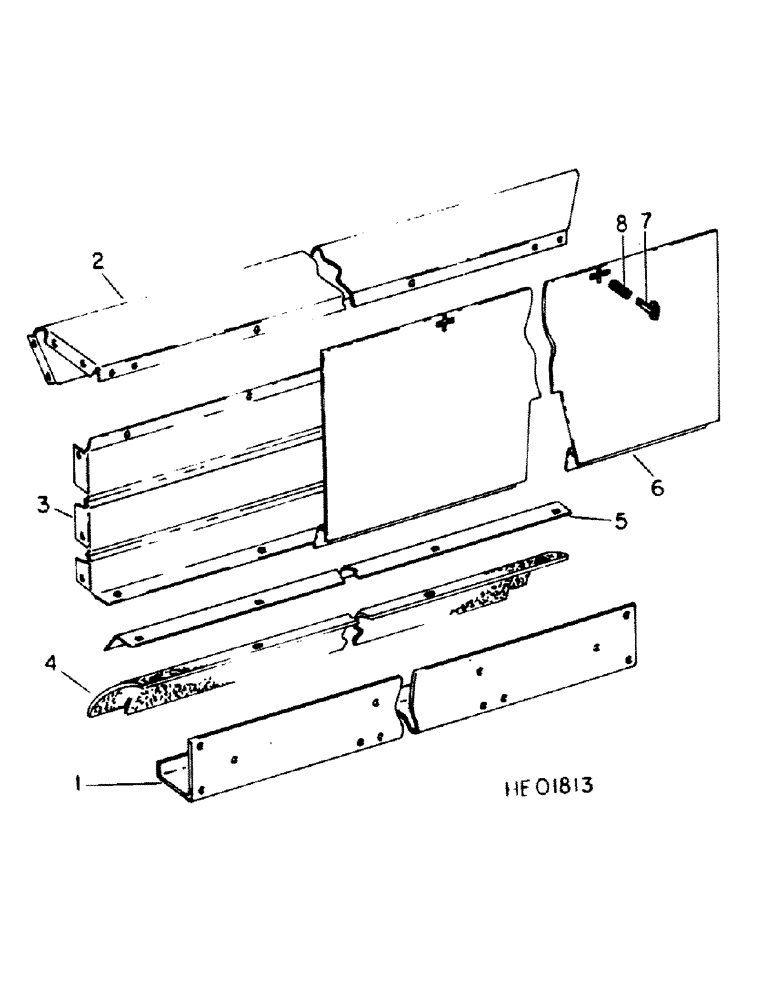

Схема запчастей Case IH 555 - (A-51) - SPREADER BOX, FRONT, 530, 540, 550 AND 555 MODELS

Артикул

Название

Примечание

Количество

1

820426C1

MEMBER

CROSSMEMBER, box front, 530

1шт.

1

820371C1

MEMBER

CROSSMEMBER, box front, 540

1шт.

1

820305C1

MEMBER

CROSSMEMBER, box front, 550 & 555

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

2

820458C1

SHIELD, box front top, 530, for service order 1-822131C91 shield assy

1шт.

2

822131C91

SHIELD

ASSY, box front top, 530, includes 1-202707C2 & 64553C2 caution product graphics

1шт.

2

820355C1

SHIELD, box front top, 540, 550 & 555, for service order 1-822158C91 shield assy

1шт.

2

822158C91

SHIELD

ASSY, box front top, 540, 550 & 555, includes 1-202707C2 & 64553C2 caution product graphics

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

8шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

4шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

3

820429C1

SIDE ASSY.

SIDE, box front, 530

1шт.

3

820318C1

SIDE ASSY.

SIDE, box front, 540, 550 & 555

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

11шт.

120377

NUT,3/8" - 16, Gr 5

11шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

11шт.

4

820410C1

SHEET

front apron cover, 530

1шт.

4

820297C1

SHEET

front apron cover, 540, 550 & 555

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage, 5 bolts used 530, 6 bolts used 540, 550 & 555

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

619856R1

WASHER

.406 x 1.000 x .056, 1 washer used per bolt

1шт.

5

820409C1

SUPPORT

cover sheet, 530

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

5

820298C1

SUPPORT

cover sheet, 540, 550 & 555

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

6

820435C1

SHIELD

box front, 530

1шт.

6

820654C1

SHIELD

box front, 540, 550 & 555

1шт.

7

593377R1

LATCH

shield

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

619856R1

WASHER

.406 x 1.00 x .056

2шт.

8

M296

SPRING

shield latch

2шт.

Выбрано товаров: 39
