Запчасти Case IH 555 (A-47) - SPREADER BOX, SIDE LH, 530, 540, 550 AND 555 MODELS

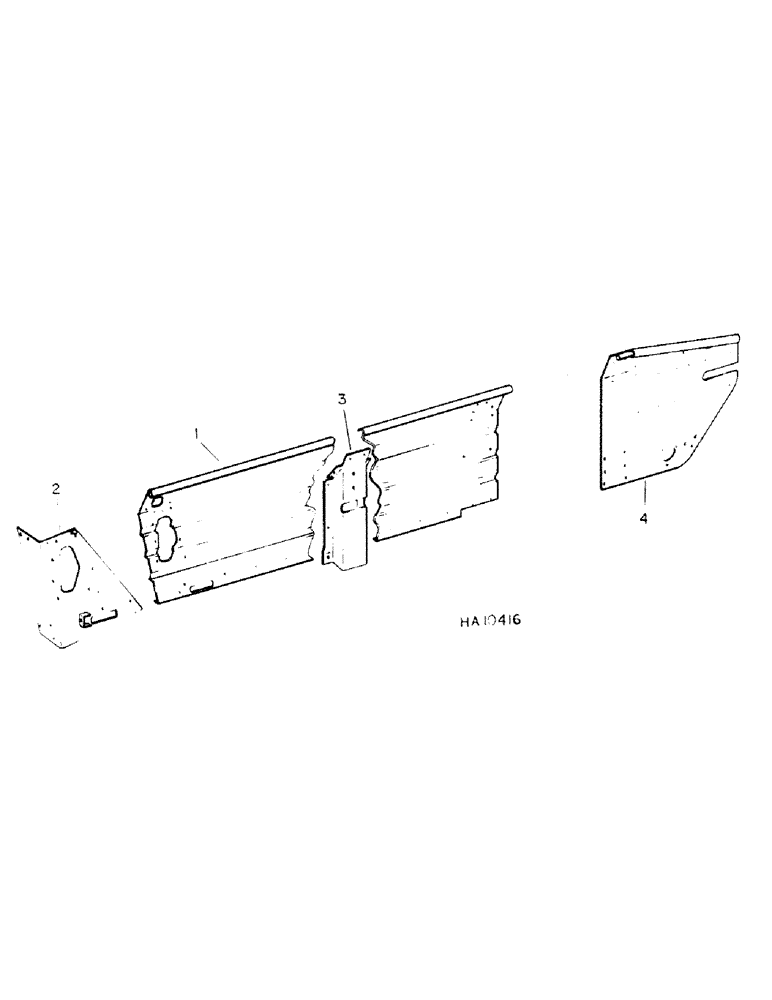

Схема запчастей Case IH 555 - (A-47) - SPREADER BOX, SIDE LH, 530, 540, 550 AND 555 MODELS

Артикул

Название

Примечание

Количество

1

820402C2

SIDE ASSY.

SIDE, box main LH, 530 & 540

1шт.

1

820307C2

SIDE ASSY.

SIDE, box main LH, 550 & 555, Serial Range: 1972-1977

1шт.

1

821828C1

SIDE ASSY.

SIDE, box main LH, 550 & 555, 1977 and since

1шт.

2

820349C1

SUPPORT

ASSY, box side front LH

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

3

820457C1

SUPPORT

ASSY, box side center, vertical LH

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 crg type 5

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

4

820360C1

SIDE ASSY.

SIDE ASSY, box rear LH

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Выбрано товаров: 14
