Запчасти Case IH 555 (A-45) - SPREADER BOX, BOTTOM W/FOUR PIECE BOARD CONNECTING, 540, 550, 555 MODELS

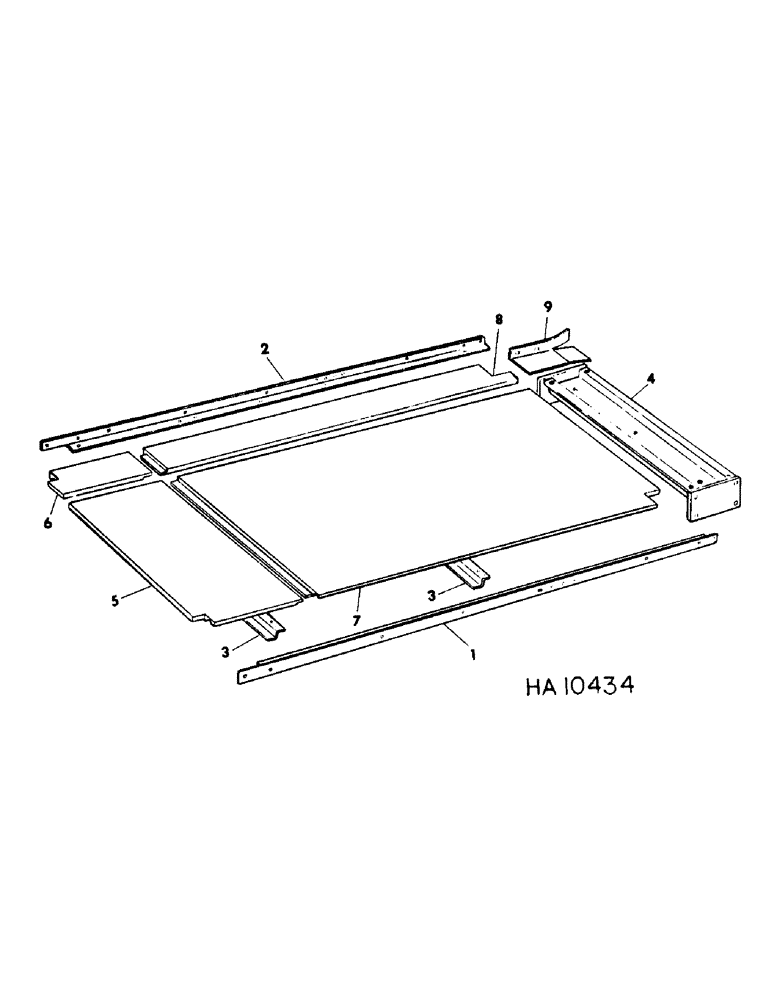

Схема запчастей Case IH 555 - (A-45) - SPREADER BOX, BOTTOM W/FOUR PIECE BOARD CONNECTING, 540, 550, 555 MODELS

Артикул

Название

Примечание

Количество

1

820400C2

ANGLE

box bottom support side LH, 540

1шт.

1

820312C2

ANGLE

box bottom support side LH, 550 & 555

1шт.

2

820401C2

ANGLE

box bottom support side RH, 540

1шт.

2

820313C2

ANGLE

box bottom support side RH, 550 & 555

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg, 8 used 540, 12 used 550 & 555

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 hex flanged lock, 1 per bolt

1шт.

3

821835C1

MEMBER

CROSSMEMBER, box bottom, 5 used 540, 6 used 550 & 555

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg, 10 used 540, 12 used 550 & 555

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

4

821474C1

MEMBER

CROSSMEMBER ASSY, box bottom rear

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

4шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

5

821850C1

BOARD

box bottom front LH, 540

1шт.

5

821854C1

BOARD

box bottom front LH, 550 & 555

1шт.

6

821851C1

BOARD

box bottom front RH, 540

1шт.

6

821855C1

BOARD

box bottom front RH, 550 & 555

1шт.

7

821848C1

BOARD

box bottom rear LH, 540, 550 & 555

1шт.

8

821849C1

BOARD

box bottom rear RH, 540, 550 & 555

1шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4 crg type 5, 36 used 540, 42 used 550 & 555

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock, 1 per bolt

1шт.

9

GUIDE, center apron chain, for service parts refer to apron shaft front

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Выбрано товаров: 29
