Запчасти Case IH 555 (A-42) - SPREADER BOX, BOTTOM W/THREE PIECE BOARD CONNECTING, 530, 540, 550 AND 555 MODELS

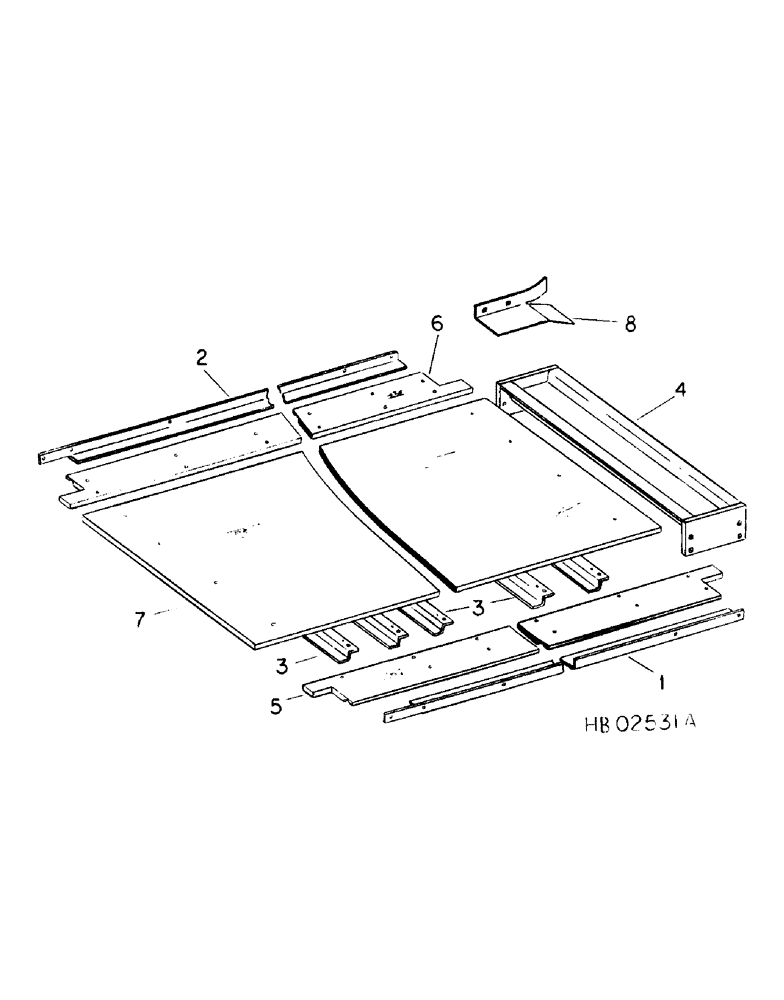

Схема запчастей Case IH 555 - (A-42) - SPREADER BOX, BOTTOM W/THREE PIECE BOARD CONNECTING, 530, 540, 550 AND 555 MODELS

Артикул

Название

Примечание

Количество

1

820400C2

ANGLE

box bottom support side LH, 530 and 540

1шт.

1

820312C2

ANGLE

box bottom support side LH, 550 and 555

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg, 4 used 530 & 540, 6 used 550 & 555

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 hex flanged lock, 1 per bolt

1шт.

2

820401C2

ANGLE

box bottom support side RH, 530 and 540

1шт.

2

820313C2

ANGLE

box bottom support side RH, 550 and 555

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 hex flanged lock

6шт.

3

820288C1

MEMBER

CROSSMEMBER, box bottom, 530, for service order 821834C1 crossmember

5шт.

3

820287C1

MEMBER

CROSSMEMBER, box bottom, 540, 550 & 555, 5 used 540, 6 used 550 & 555, for service order 821835C1 crossmember

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLTS, 3/8-16 x 1 crg

14шт.

120377

NUT,3/8" - 16, Gr 5

14шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.

4

820291C1

CROSSMEMBER ASSY, box bottom rear, 530, for service order 821690C1 crossmember

1шт.

4

820286C1

CROSSMEMBER ASSY, box bottom rear, 540, 550 and 555, for service order 821474C1 crossmember

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

4шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

5

820680C2

BOARD

box bottom outer LH, 530 & 540

1шт.

5

820682C2

BOARD

box bottom outer LH, 550 & 555

1шт.

598797R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

BOLT, 1/4-20 x 1-1/4 crg, 12 used 530 & 540, 14 used 550 & 555

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 per bolt 1/4"

1шт.

6

820681C2

BOARD

box bottom outer RH, 530 & 540

1шт.

6

820683C2

BOARD

box bottom outer RH, 550 & 555

1шт.

598797R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

BOLT, 1/4-20 x 1-1/4 crg, 12 used 530 & 540, 14 used 550 & 555

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 per bolt 1/4"

1шт.

7

820679C1

BOARD

box bottom centre, 530, serial no. 5929 and below, for service order 1-821846C1 board, 1-821847C1 board and 1-821834C1 crossmember

1шт.

598797R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

BOLT, 1/4-20 x 1-1/4 crg

24шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

24шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

24шт.

7

820678C1

BOARD

box bottom centre, 540, serial no. 7308 and below, for service order 1-821848C1 board, 1-821849C1 board, 1-821850C1 board, 1-821851C1 board and 1-821835C1 crossmember

1шт.

598797R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

BOLT, 1/4-20 x 1-1/4 crg

30шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

30шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

30шт.

7

820677C1

BOARD

box bottom centre, 550 & 555, 550 serial no. 5717 and below, for service order 1-821848C1 board, 1-821849C1 board, 1-821854C1 board, 1-821855C1 board and 1-821835C1 crossmember

1шт.

598797R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

BOLT, 1/4-20 x 1-1/4 crg

35шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

35шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

35шт.

8

GUIDE, centre apron chain, for service parts refer to apron shaft front

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Выбрано товаров: 47
