Запчасти Case IH 555 (A-40) - APRON CHAIN, PINTLE TYPE, 530, 540, 550 AND 555 MODELS

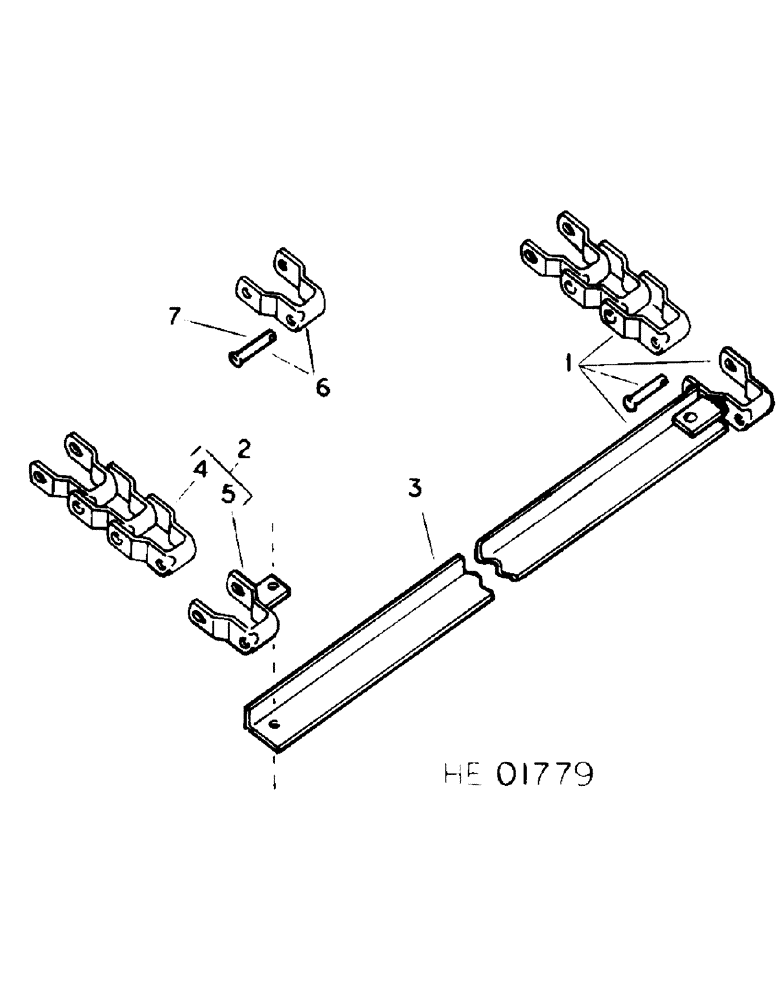

Схема запчастей Case IH 555 - (A-40) - APRON CHAIN, PINTLE TYPE, 530, 540, 550 AND 555 MODELS

Артикул

Название

Примечание

Количество

1

820395C91

CHAIN (AG)

CHAIN ASSY, 667X pintle type apron w/angles, 530, includes 1-820389C91 chain set, 18-820344C92 angle assy and 36-106916 rivet, opt w/820377C91 chain assy

1шт.

1

820377C91

CHAIN (AG)

CHAIN ASSY, 667J pintle type apron w/angles, 530, includes 1-820314C91 chain set, 18-820420C92 angle assy and 36-106916 rivet, opt w/820395C91 chain asy

1шт.

1

820388C91

CHAIN (AG)

CHAIN ASSY, 667X pintle type apron w/angles, 540, includes 1-820387C91 chain set, 18-820392C92 angle assy and 36-106916 rivet, opt w/820387C91 chain assy

1шт.

1

820387C91

CHAIN (AG)

CHAIN ASSY, 667J pintle type apron w/angles, 540, includes 1-820314C91 chain set, 18-820434C92 angle assy and 36-106916 rivet, opt w/820388C91 chain assy

1шт.

1

820381C91

CHAIN (AG)

CHAIN ASSY, 667X pintle type apron w/angles, 550 and 555, includes 1-820382C91 chain set, 22-820392C92 angle assy and 44-106916 rivet, opt w/820397C91 chain assy

1шт.

1

820397C91

CHAIN (AG)

CHAIN ASSY, 667J pintle type apron w/angles, 550 and 555, includes 1-820315C91 chain set, 22-820434C92 angle assy and 44-106916 rivet, opt w/820381C91 chain assy

1шт.

2

820389C91

CHAIN (AG)

CHAIN SET, 667X pintle type, 530 & 540, includes 36-820383C1 link, and 188-820667C1 link, opt w/820314C91 chain set

1шт.

2

820314C91

CHAIN (AG)

CHAIN SET, 667J pintle type, 530 & 540, includes 36-820366C1 link and 188-820376C1 link, opt w/820389C91 chain set

1шт.

2

820382C91

SET

CHAIN SET, 667X pintle type, 550 & 555, includes 44-820383C1 link and 220-820667C1 link, opt w/820315C91 chain set

1шт.

2

820315C91

CHAIN (AG)

CHAIN SET, 667J pintle type, 550 & 555, includes 44-820366C1 link and 220-820376C1 link, opt w/820382C91 chain set

1шт.

3

820344C92

ANGLE

ASSY, 667X pintle type apron w/attaching links, 530, includes 2-820383C1 link, 2-160916 rivet, 4-820370C1 pin and 4-187352 pin

18шт.

3

820420C92

ANGLE ASSY, 667J pintle type apron w/attaching links, 530, includes 2-820366C1 link, 2 106916 rivet, 4-821371C1 pin and 4-187352 pin

18шт.

3

820392C92

ANGLE

ASSY, 667X pintle type apron w/attaching links, 540, includes 2-820383C1 link, 2-106916 rivet, 4-821370C1 pin and 4-187352 pin

18шт.

3

820434C92

ANGLE

ASSY, 667J pintle type apron w/attaching links, 540, includes 2-820366C1 link, 2-106916 rivet, 4-821371C1 pin and 4-187352 pin

18шт.

3

820392C92

ANGLE

ASSY, 667X pintle type apron w/attaching links, 550 & 555, includes 2-820383C1 link, 2-106916 rivet, 4-821370C1 pin and 4-187352 pin

22шт.

3

820434C92

ANGLE

ASSY, 667J pintle type apron w/attaching links, 550 & 555, includes 2-820366C1 link, 2-106916 rivet, 4-821371C1 pin and 4-187352 pin

22шт.

CHAIN , 10 ft length CSD 667X, 530 and 540, for each chain assy use 92 plain links and assemble in sequence of one space of 2 connecting links, one plain link and one attaching link, 14 spaces of 5 plain links and one attaching link and 3 spaces of 6 plain links and one attaching link followed by 3 plain links

1шт.

CHAIN, 10 ft length CSD 667X, 550 and 555, for each chain assy use 108 plain links and assemble in sequence of one space of 2 connecting links, one plain link and one attaching link then 21 spaces of 5 plain links and one attaching link followed by 2 plain links

1шт.

5

820383C1

LINK

667X pintle ty[e attaching, 36 used 530 and 540, 44 used 550 and 555

1шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1 truss-hd, 1 per link

1шт.

5

820366C1

LINK

667J pintle type attaching, 36 used 530 and 540, 44 used 550 and 555

1шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1 truss-hd, 1 per link

1шт.

6

820667C1

LINK

connecting w/stainless cotters 667X pintle type apron chain, includes 2-821370C1 pin and 2-187352 pin, 188 used 530 540, 220 used 550 and 555

1шт.

6

820376C1

LINK

connecting 667J pintle chain, includes 2-821371C1 pin and 2-187352 pin, 188 used 530 and 540, 220 used 550 and 555

1шт.

7

821370C1

PIN

chain coupler, 7/16" diameter, for 667X pintle chain

1шт.

187352

COTTER PIN,1/8" x 3/4", Stainless

Pin, Split (Cotter), 1/8" x 3/4", Stainless

1шт.

7

821371C1

PIN

chain coupler, 3/8" diameter, for 667J pintle chain

1шт.

187352

COTTER PIN,1/8" x 3/4", Stainless

Pin, Split (Cotter), 1/8" x 3/4", Stainless

1шт.

Выбрано товаров: 28
