Запчасти Case IH 555 (A-39) - APRON CHAIN, HEAVY DUTY LOCK TYPE, LINKS WITH INSIDE EDGE

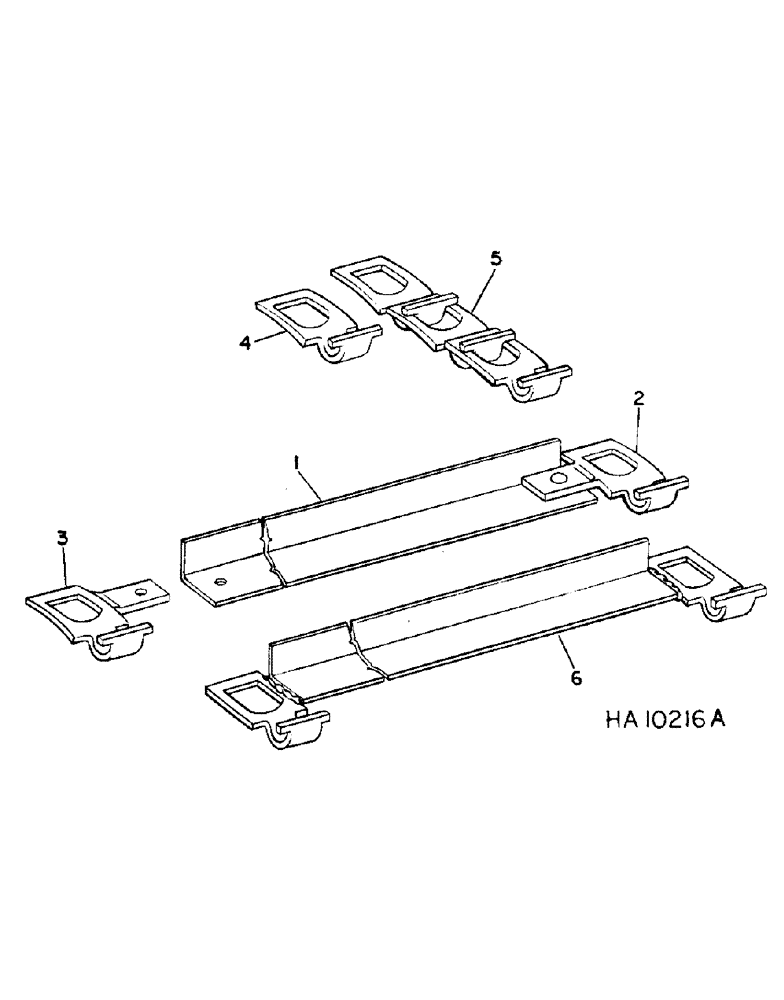

Схема запчастей Case IH 555 - (A-39) - APRON CHAIN, HEAVY DUTY LOCK TYPE, LINKS WITH INSIDE EDGE

Артикул

Название

Примечание

Количество

1

821375C91

ANGLE

ASSY, apron, 530 model

18шт.

1

821377C91

ANGLE

ASSY, apron, 540 model

18шт.

1

821377C91

ANGLE

ASSY, apron, 550 & 555 model

22шт.

1

821377C91

ANGLE

ASSY, apron, 560 model, includes ref no 2 & 3

26шт.

2

821197C1

LINK ASSY.

LINK, attach LH, 530 & 540 model

18шт.

2

821197C1

LINK ASSY.

LINK, attach LH, 550 & 555 model

22шт.

2

821197C1

LINK ASSY.

LINK, attach LH, 560 model

26шт.

3

821198C1

LINK ASSY.

LINK, attach RH, 530 & 540 model

18шт.

3

821198C1

LINK ASSY.

LINK, attach RH, 550 & 555 model

22шт.

3

821198C1

LINK ASSY.

LINK, attach RH, 560 model

26шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1 pln t/hd sol

1шт.

4

821196C1

LINK

apron plain, 530 & 540 model

162шт.

4

821196C1

LINK

apron plain, 550 & 555 model

190шт.

4

821196C1

LINK

apron plain, 560 model

226шт.

CHAIN ASSY, w/angles, 530 & 540 model, for each chain assy use 162 plain links of 821196C1, and 18 angle assy of 821375C91 for 530 model, and 821377C91 for 540 model and assemble in sequence of 9 spaces of 4 plain links and one angle assy, then 9 spaces of 5 plain links and one angle assy

1шт.

5

CHAIN ASSY, w/angles, 540 & 555 model, for each chain assy use 190 plain links of 821196C1 and 22 angle assy of 821377C91, and assemble in sequence of 15 spaces and 4 plain links and one angle assy, then 7 spaces of 5 plain links and one angle assy

1шт.

5

CHAIN ASSY, w/angles, 560 model, for each chain assy use 226 plain links of 821196C1 and 26 angle assy of 821377C91, and assemble in sequence of 17 spaces and 4 plain links and one angle assy, then 9 spaces of 5 plain links and one angle assy

1шт.

6

ANGLE ASSY, apron welded, for service order angle assy, ref 1

1шт.

822373C91

CHAIN (CE)

PACKAGE, apron chain, 530 model, consists of

1шт.

821375C91

ANGLE

ASSY

18шт.

821196C1

LINK

162шт.

822374C91

PACKAGE

apron chain, 540 model

1шт.

821377C91

ANGLE

ASSY

18шт.

821196C1

LINK

162шт.

822375C91

CHAIN (CE)

PACKAGE, apron chain, 550 & 555 model

1шт.

821377C91

ANGLE

ASSY

22шт.

821196C1

LINK

190шт.

822376C91

CHAIN (CE)

PACKAGE, apron chain, 560 model

1шт.

821377C91

ANGLE

ASSY

26шт.

821196C1

LINK

226шт.

Выбрано товаров: 30
