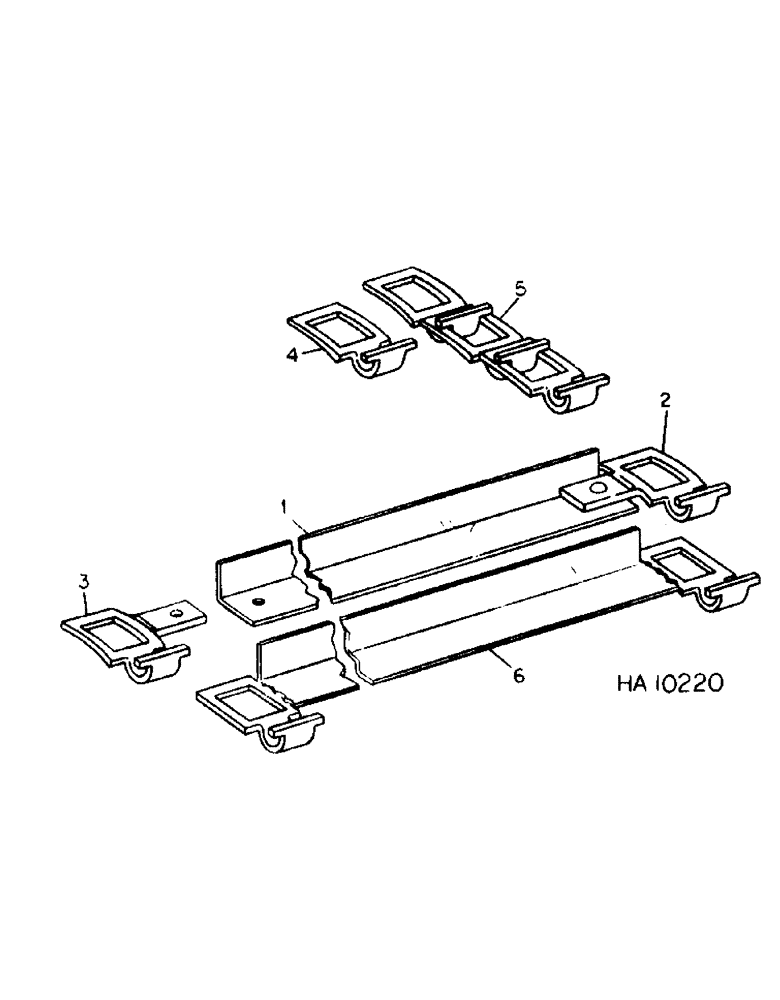

Запчасти Case IH 555 (A-38) - APRON CHAIN, HEAVY DUTY TYPE, LINKS WITH INSIDE EDGES

1

821898C91

ANGLE

ASSY, apron, 530 model

18шт.

1

821949C91

ANGLE

ASSY, apron, 540 model

18шт.

1

821949C91

ANGLE

ASSY, apron, 550 & 555 model

22шт.

1

821949C91

ANGLE

ASSY, apron, 560 model, includes 1-821941C1 link, 1-821942C1 link and 2-106916 rivets

26шт.

2

821941C1

LINK

attach LH, 530 & 540 model

18шт.

2

821941C1

LINK

attach LH, 550 & 555 model

22шт.

2

821941C1

LINK

attach LH, 560 model

26шт.

3

821942C1

LINK

attach RH, 530 & 540 model

18шт.

3

821942C1

LINK

attach RH, 550 & 555 model

22шт.

3

821942C1

LINK

attach RH, 560 model

26шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1 pln t/hd sol one per link

1шт.

4

821940C1

LINK

apron plain, 530 & 540 model

164шт.

4

821940C1

LINK

apron plain, 550 & 555 model

192шт.

4

821940C1

LINK

apron plain, 560 model

228шт.

CHAIN ASSY, apron w/angles, 530 & 540 model, for each chain assy use 164 plain links of 821940C1 and 18 angle assy of 821898C91 for 530 model, and 821949C91 for 540 model and assemble in sequence of 8 spaces of 4 plain links and one angle assy, then 10 spaces of 5 plain links and one angle assy

1шт.

5

CHAIN ASSY, apron w/angles, 550 & 555 model, for each chain assy use 192 plain links of 821940C1 and 22 angle assy of 821949C91 and assemble in sequence of 14 spaces of 4 plain links and one angle assy, then 8 spaces of 5 plain links and one angle assy

1шт.

5

CHAIN ASSY, apron w/angles, 560 models, for each chain assy use 228 plain links of 821940C1 and 26 angle assy of 821949C91 and assemble in sequence fo 16 spaces of 4 plain links and one angle assy, then 10 spaces of 5 plain links and one angle assy

1шт.

6

ANGLE ASSY, apron welded, for service order angle assy, ref no 1

1шт.

821394C91

PACKAGE

apron chain, 530 model, consists of

1шт.

821898C91

ANGLE

ASSY

18шт.

821940C1

LINK

164шт.

821395C91

PACKAGE

apron chain, 540 model, consists of

1шт.

821949C91

ANGLE

ASSY

18шт.

821940C1

LINK

164шт.

821396C91

PACKAGE

apron chain, 550 & 555 model , consists of

1шт.

821949C91

ANGLE

ASSY

22шт.

821940C1

LINK

192шт.

822389C91

CHAIN (CE)

PACKAGE, apron chain, 560 model, consists of

1шт.

821949C91

ANGLE

ASSY

26шт.

821940C1

LINK

228шт.
