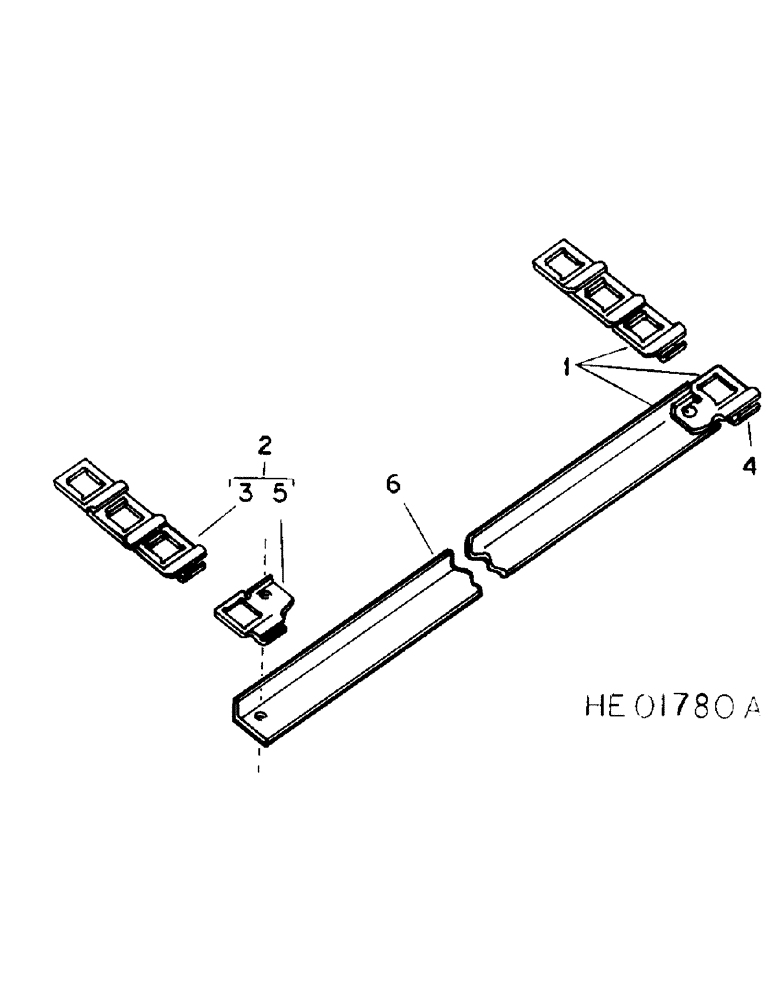

Запчасти Case IH 555 (A-37) - APRON CHAIN, STEEL DETACHABLE TYPE, 530, 540, 550 AND 555 MODELS

1

820390C91

CHAIN (AG)

CHAIN ASSY, steel detachable type 67H apron w/angles, 530, includes 1-820391C91 chain set, 14-820329C91 angle assy and 28-106915 rivet

1шт.

1

820384C91

CHAIN (AG)

CHAIN ASSY, steel detachable type 67XH apron w/angles, 540, includes 1-820385C91 chain set, 15-820334C91 angle assy and 30-106915 rivet

1шт.

1

820374C91

CHAIN (AG)

CHAIN ASSY, steel detachable type 67XH apron w/angles, 550 and 555, includes 1-820375C91 chain set, 18-820334C91 angle assy and 36-106915 rivet

1шт.

2

820391C91

CHAIN (AG)

CHAIN SET, 67H detachable type, 530, includes 2-CS 67H chain, 14-820404C1 link and 14-820405C1 link

1шт.

2

820385C91

CHAIN (AG)

CHAIN SET, 67XH detachable type, 540, includes 2-CS 67XH chain, 15-820378C1 link and 15-820379C1 link

1шт.

2

820375C91

SET

CHAIN SET, 67XH steel detachable type apron, 550 and 555, includes 2-CS 67XH chain , 18-820378C1 link and 18-820379C1 link

1шт.

3

CS67H

CHAIN (AG)

CHAIN ASSY, 10 ft length 67H, 530, use 95 plain links and assemble in sequence of 11 spaces of 7 plain links and one attaching link then 3 spaces of 6 plain links and one attaching links

2шт.

3

CS67XH

CHAIN (AG)

CHAIN ASSY, 10 ft length 67XH, 540, use 94 plain links and assemble in sequence of 11 spaces of 6 plain links and one attaching link then 4 spaces of 7 plain links and one attaching links

2шт.

3

CS67XH

CHAIN (AG)

CHAIN ASSY, 10 ft length 67XH, 550 and 555, use 111 plain links and assemble in sequence of 15 spaces of 6 plain links and one attaching link then 3 spaces of 7 plain links and one attaching links

2шт.

4

820404C1

LINK

LH attaching, 530

14шт.

4

820378C1

LINK ASSY.

LINK, LH attaching, 540

15шт.

4

820378C1

LINK ASSY.

LINK, LH attaching, 550 and 555

18шт.

5

820405C1

LINK

RH attaching, 530

14шт.

5

820379C1

LINK ASSY.

LINK, RH attaching, 540

15шт.

5

820379C1

LINK ASSY.

LINK, RH attaching, 550 and 555

18шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd, 1 rivet used per link

1шт.

6

820329C91

ANGLE

ASSY, apron, 530, includes 1-820404C1 link, 1-820405C1 link and 2-106915 rivets

14шт.

6

820334C91

ANGLE

ASSY, apron, 540, includes 1-820378C1 link, 1-820379C1 link and 2-106915 rivet

15шт.

6

820334C91

ANGLE

ASSY, apron, 550 and 555, includes 1-820378C1 link, 1-820379C1 link and 2-106915 rivet

18шт.
