Запчасти Case IH 555 (A-35) - APRON SHAFT FRONT, 530, 540, 550 AND 555 MODELS

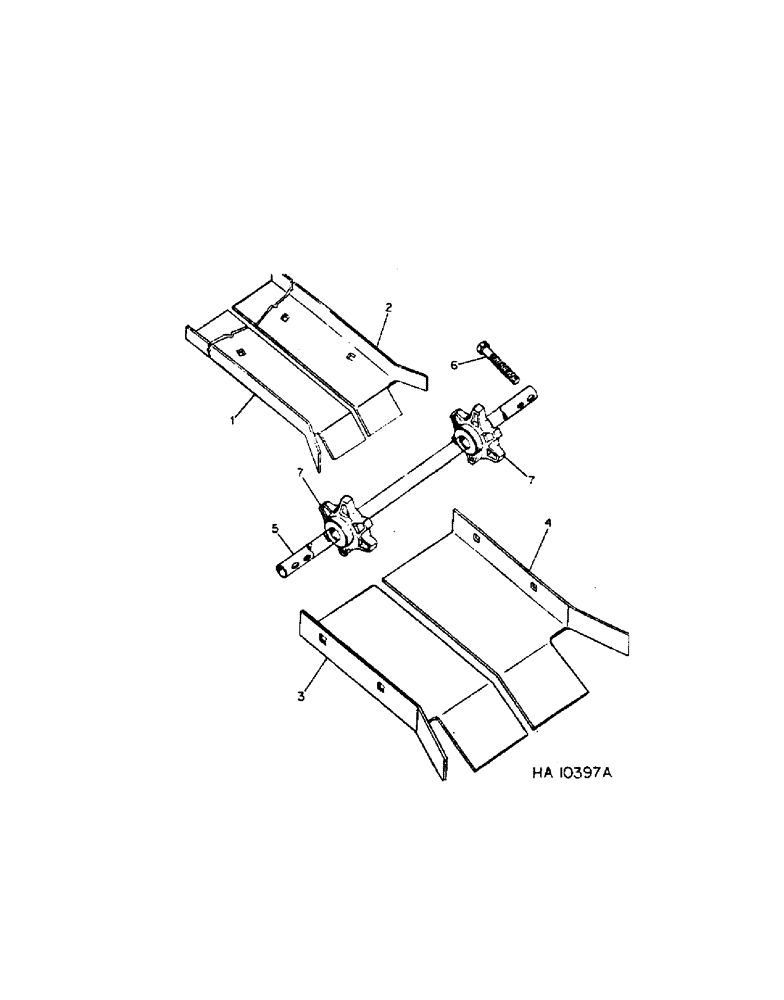

Схема запчастей Case IH 555 - (A-35) - APRON SHAFT FRONT, 530, 540, 550 AND 555 MODELS

Артикул

Название

Примечание

Количество

1

820664C4

GUIDE

front apron chain LH

1шт.

2

820700C4

GUIDE

front apron chain RH

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

822179C1

GUIDE

center apron chain LH, replaces 820365C1 LH and RH by ordering w/1-822180C1 RH guide

1шт.

4

822180C1

GUIDE

center apron chain RH, replaces 820365C1 RH and LH by ordering w/1-822179C1 LH guide

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

820431C1

TUBE,1.25" OD, 51.4" Length

front apron, 530

1шт.

5

820354C1

TUBE,1.25" OD, 63.4" Length

front apron, 540, 550 and 555 models

1шт.

6

820430C1

BOLT,Hex, 1/2" - 13 x 5 1/2", Full Thd

apron tightener

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

21226R1

WASHER

1.281 x 2.000 x .105

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

7

820433C1

SPROCKET ASSY.

SPROCKET, front apron 6T

2шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 str lub self tapping

2шт.

Выбрано товаров: 18
