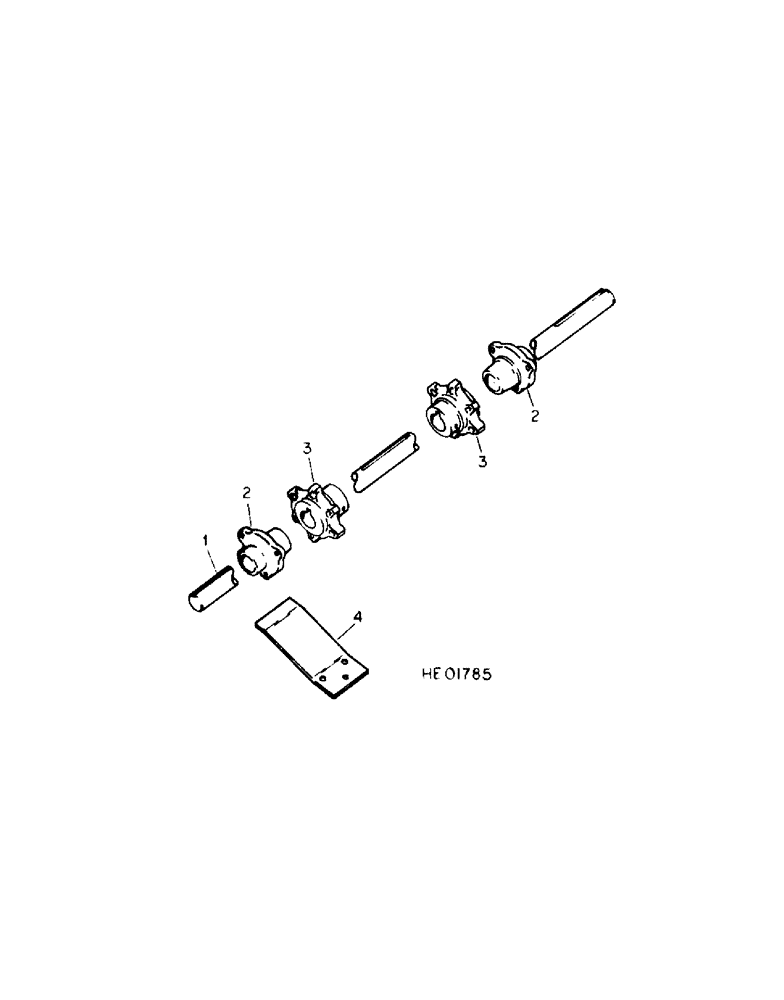

Запчасти Case IH 555 (A-35[A]) - APRON SHAFT REAR - 530, 540, 550 AND 555 MODELS

1

820437C1

SHAFT

rear apron, 530

1шт.

1

820269C1

SHAFT

rear apron, 540 and 550

1шт.

1

820267C1

SHAFT

rear apron, 555

1шт.

608085R1

WASHER

1.406 x 2.00 x .054

1шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

2

820268C1

SUPPORT,1.381" ID x 2" OD x 2.45"

rear apron shaft

2шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 str lub self tapping

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

3

820271C1

SPROCKET ASSY.

SPROCKET, rear apron 6T

2шт.

Q5023

KEY,5/16" Sq x 2 1/4", Par

5/16 sq x 2-1/4 parallel

2шт.

617943R1

PIN,5/16" x 2 1/2", Coiled

2шт.

4

820386C1

SUPPORT

rear apron chain guide, 555

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 x 5/8 hex-hd

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.
