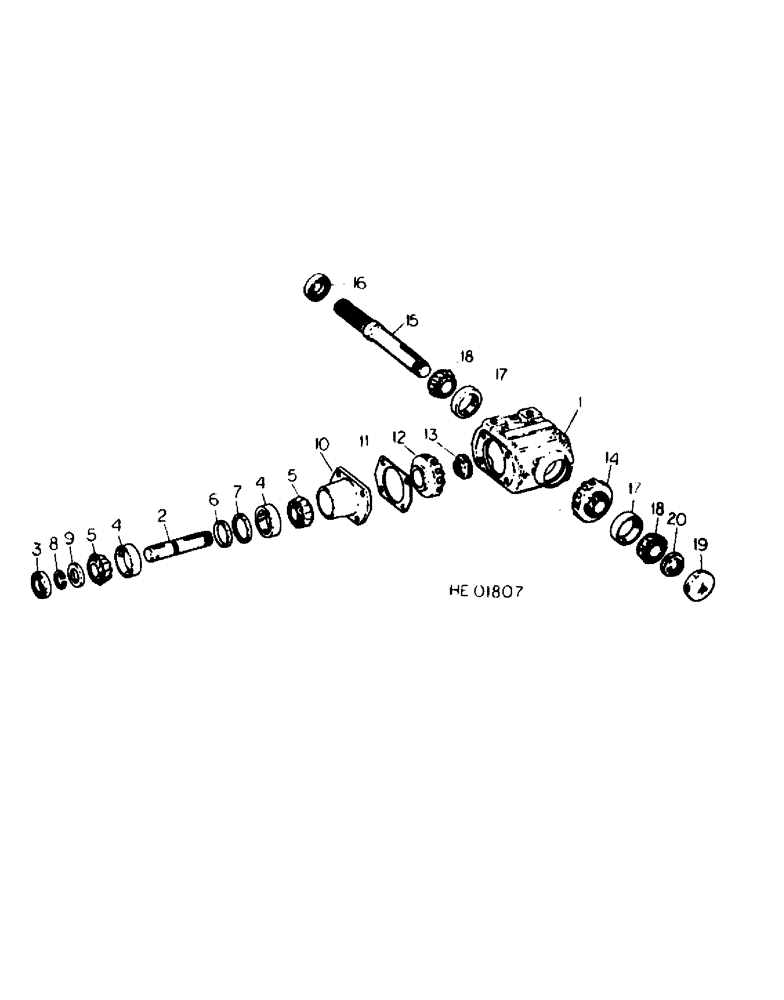

Запчасти Case IH 555 (A-34) - WIDESPREAD DRIVE GEAR CASE

820215C91

CASE

ASSY, widespread drive gear

1шт.

1

820212C1

CASE

widespread drive gear

1шт.

684183R1

PLUG

1/4-18 NPTF vent

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 NPTF auto Hex Socket

2шт.

2

820201C1

SHAFT

gear case input

1шт.

3

820202C1

OIL SEAL

gear case input shaft oil

1шт.

4

651817R1

BEARING CUP

CUP, input shaft bearing

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, input shaft bearing

2шт.

6

820583C1

SPACER

input shaft bearing

1шт.

7

820204C1

RING

bearing retaining

1шт.

8

609053R1

SNAP RING,#125, Ext

Ring, Snap, , bearing #125, Ext

1шт.

9

820203C1

WASHER

bearing spacer

1шт.

10

820205C1

RETAINER

input shaft bearing

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

820206C1

SHIM

bearing retainer, .010

1шт.

11

820207C1

SHIM

bearing retainer, .005

1шт.

11

820208C1

SHIM

bearing retainer, .003

1шт.

12

820210C1

GEAR

input shaft bevel, 14T

1шт.

Q1482

KEY,5/16" Sq x 1", Par

5/16 x 1 sq parallel

1шт.

13

594436R1

NUT

input shaft lock

1шт.

14

820211C1

GEAR

output shaft bevel, 14T

1шт.

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

15

820214C1

SHAFT

gear case output

1шт.

16

820213C1

OIL SEAL

SEAL, gear case output shaft oil

1шт.

17

651817R1

BEARING CUP

CUP, ouptput shaft bearing

2шт.

18

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, output shaft bearing

2шт.

19

594434R1

CAP

output shaft access hole

1шт.

20

594436R1

NUT

output shaft lock

1шт.
