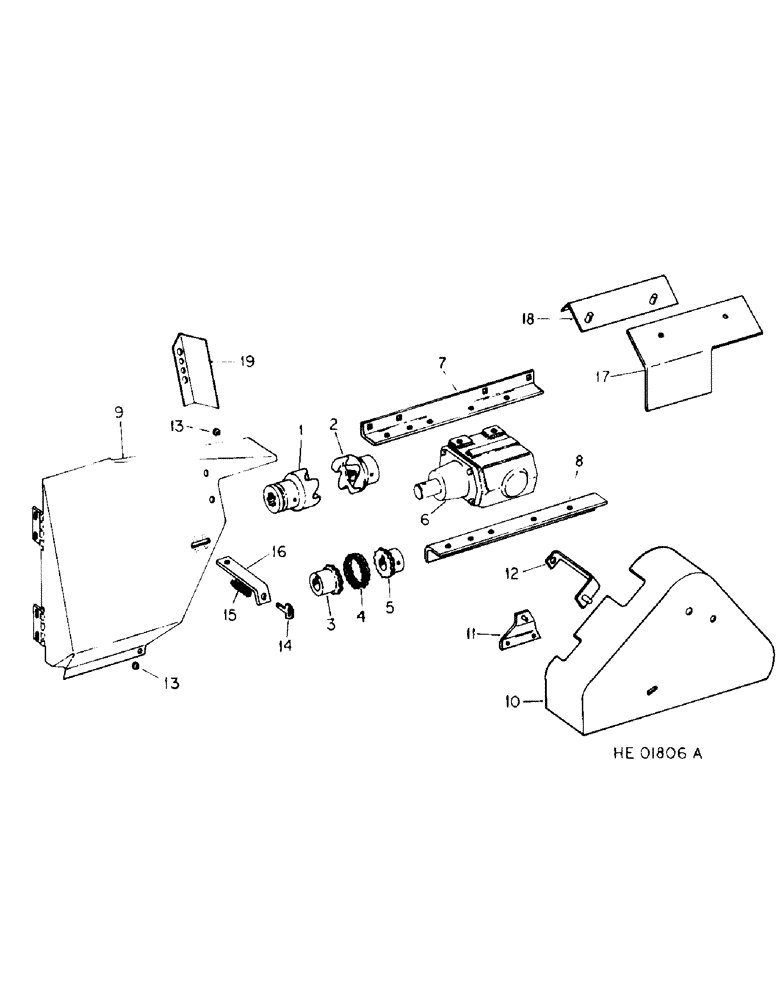

Запчасти Case IH 555 (A-31) - WIDESPREAD DRIVE AND REAR SHIELD, 530, 540, 550 AND 555

1

820257C1

SPLINED COUPLING

CLUTCH, widespread drive sliding 6T, 530, 540 and 550, for use on machines built 1972 to June 1975

1шт.

23041R1

WASHER

1.156 x 1.50 x .054

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF2 str lub

1шт.

1

821200C1

CLUTCH

widespread drive sliding 17T, 530, 540 and 550, for use on machines built June 1975 and since

1шт.

23041R1

WASHER

1.156 x 1.500 x .054

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF2 str lub

1шт.

2

820235C1

SPLINED COUPLING

CLUTCH, widespread drive pinion, 530, 540 and 550

1шт.

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff

1шт.

617943R1

PIN,5/16" x 2 1/2", Coiled

1шт.

3

820259C1

SPROCKET ASSY.

SPROCKET, widespread drive coupling front, 555

1шт.

Q42

KEY,5/16" Sq x 1 3/8", Par

5/16 sq x 1-3/8 parallel

1шт.

4

611979R91

CHAIN (AG)

CHAIN ASSY, drive coupling, 555

1шт.

5

820258C1

SPROCKET ASSY.

SPROCKET, widespread drive coupling rear, 555

1шт.

117977

WOODRUFF KEY

KEY, 5/16 x 1 Woodruff

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

6

820215C91

CASE

ASSY, widespread drive gear, for component parts refer to widespread drive gear case

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

1шт.

7

820321C2

ANGLE

widespread drive support upper, 530, 540 and 550

1шт.

7

820359C1

ANGLE

widespread drive support upper, 555

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

8

820320C2

ANGLE

widespread drive support lower, 530, 540 and 550 models

1шт.

8

820358C1

ANGLE

widespread drive support lower, 555

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

3шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

9

820505C1

SHIELD

ASSY, rear drive, 530, 540 and 550 models

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

10

820512C1

SHIELD ASSY, rear drive, 555

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 wing

2шт.

619856R1

WASHER

.406 x 1.00 x .056

2шт.

11

820515C1

SUPPORT

ASSY, drive shield front, 555

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12

820517C1

SUPPORT

ASSY, drive shield rear, 555

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

820496C1

BUMPER

rubber, 530, 540 & 550

2шт.

14

593377R1

LATCH

shield, 530, 540 and 550 models

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

15

M296

SPRING

shield latch, 530, 540 & 550

1шт.

16

820495C1

BRACKET

latch mounting, 530, 540 and 550

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

820519C1

SHIELD

widespread drive, 555

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 wing

2шт.

619856R1

WASHER

.406 x 1.00 x .056

2шт.

18

820639C1

ANGLE

ASSY, shield support, 555

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

19

820118C1

SUPPORT

product graphic, 530, 540 and 550, built, Serial Range: 1972-1979

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

19

820118C1

SUPPORT

product graphic, 555

1шт.
