Запчасти Case IH 555 (A-30[A]) - APRON HYDRAULIC DRIVE 555 MODEL

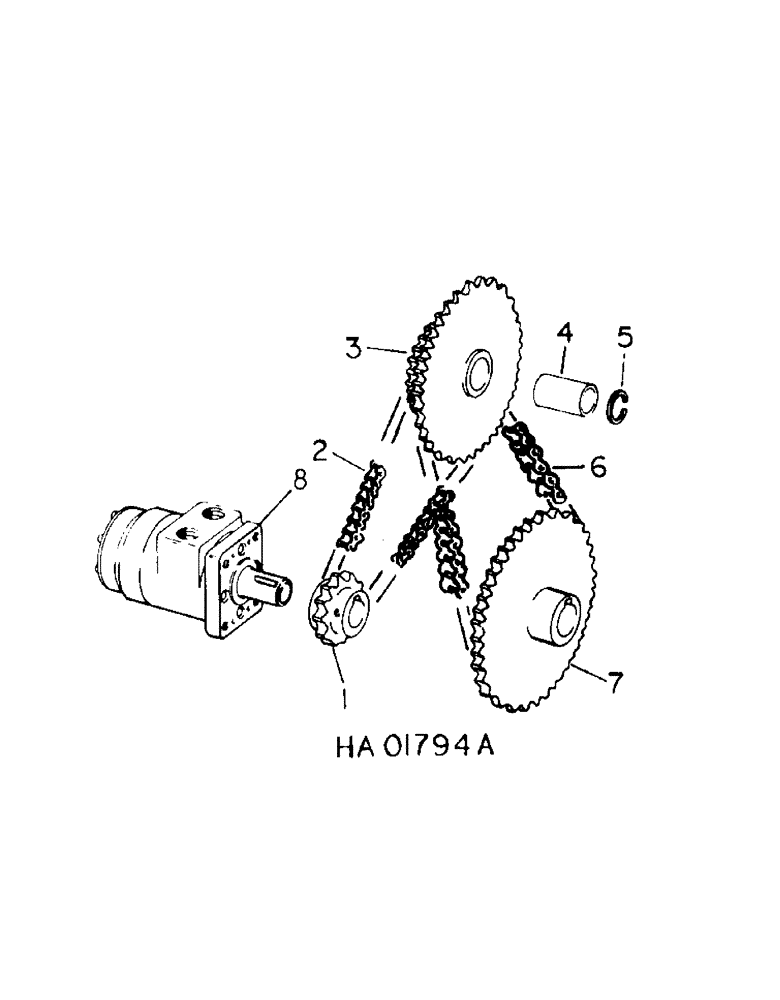

Схема запчастей Case IH 555 - (A-30[A]) - APRON HYDRAULIC DRIVE 555 MODEL

Артикул

Название

Примечание

Количество

1

820242C1

SPROCKET ASSY.

SPROCKET ASSY, 16T apron counter shaft drive

1шт.

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

120570

SCREW, 1/4-20 x 3/8 hex soc hd cup pt set

1шт.

2

CHAIN ASSY, apron countershaft drive, for service of the complete chain use 81 links of 1/2 inch single pitch roller chain from a 10 foot roll 1790D and add one connecting link 1301D

1шт.

1301D

CHAIN LINK

CONNECTING LINK

1шт.

3

820501C91

SPROCKET ASSY, apron countershaft dual, includes 1-608693R1 bushing

1шт.

23041R1

WASHER

1.156 x 1.500 x .054

3шт.

4

608693R1

BUSHING

dual sprocket

1шт.

5

454319R1

RING

sprocket retaining

1шт.

6

CHAIN ASSY, apron shaft drive, for service of the complete chain use 43 links of 3/4 inch single pitch roller chain from a 10 foot roll of 611362R91, add one connecting link of 574532R91 and two offset links of 612612R91

1шт.

574532R91

CLIP, SPRING

CONNECTING LINK

1шт.

612612R91

CHAIN LINK

OFFSET LINK

1шт.

7

820250C1

SPROCKET ASSY.

SPROCKET ASSY, 36T apron shaft driven

1шт.

457400R1

KEY,5/16" Sq x 1 3/4", Par

5/16 x 1-3/4 sq parallel

1шт.

608085R1

WASHER

1.406 x 2.00 x .054

1шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

8

1414117R91

MOTOR

ASSY, apron drive, for component parts of this assy refer to hydraulic apron drive motor in this section of the parts catalogue

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Выбрано товаров: 19
