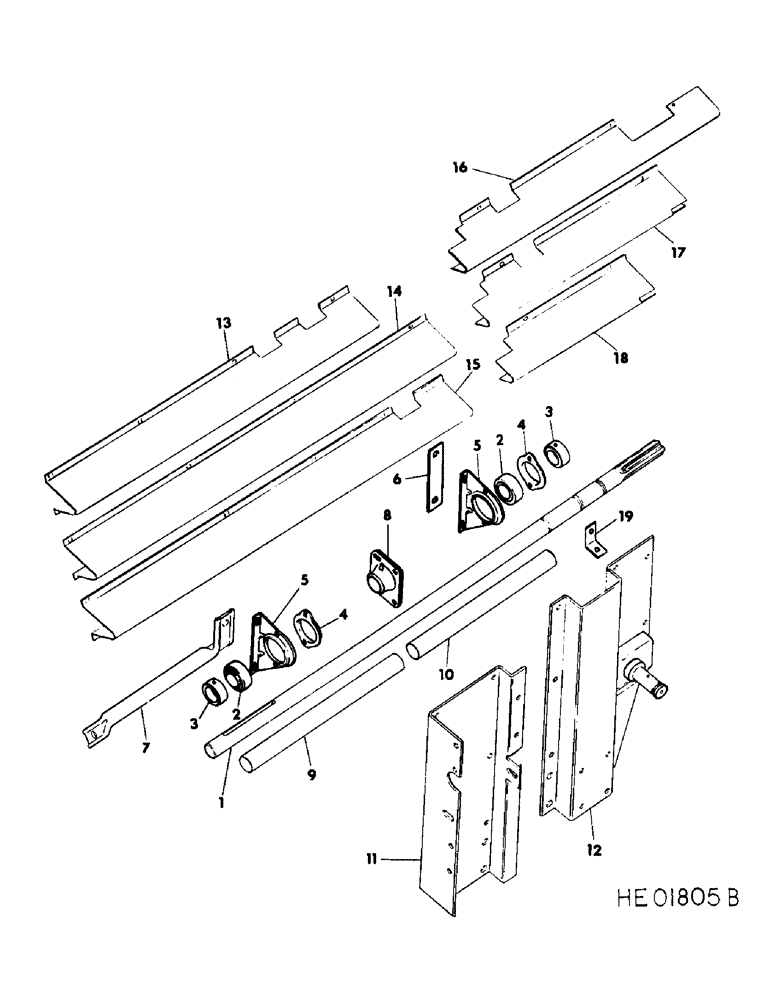

Запчасти Case IH 555 (A-20) - MAIN DRIVE SHAFT AND SHIELDS, 530, 540, 550, AND 555 MODELS

1

820262C1

SHAFT

main drive side 6T, 530 & 540, when service stock is exhausted order 1-821930C1, shaft and 1-821200C1, clutch

1шт.

1

821930C1

SHAFT

main drive side 17T, 530 & 540, for use on machines built June 1975 season and since

1шт.

1

820436C1

SHAFT

main drive side 6T, 550, when service stock is exhausted order 1-821199C1, shaft and 1-821200C1, clutch

1шт.

1

821199C1

SHAFT

main drive side 17T, 550, for use on machines built June 1975 season and since

1шт.

1

820261C1

SHAFT, main side drive, 555

1шт.

2

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

side shaft front, 555

1шт.

2

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

side shaft frt and rear, 530, 540 and 550

2шт.

3

557115R11

COLLAR

COLLAR, bearing locking, 555, includes 1-115321, screw

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16-18 x 5/16 cup-pt set

1шт.

3

557115R11

COLLAR

COLLAR, bearing locking, 530, 540 and 550, includes 1-115321, screw

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16-18 x 5/16 cup-pt set

2шт.

4

581469R1

FLANGE,Bearing

TTE, bearing, 555

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

581469R1

FLANGE,Bearing

TTE, bearing, 530, 540 and 550

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

820483C1

HOUSING ASSY.

FLANGETTE, bearing, 555

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

.531 x 1.250 x .054

2шт.

5

820483C1

HOUSING ASSY.

FLANGETTE, bearing, 530, 540 and 550

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

178374R1

WASHER

.531 x 1.250 x .054

4шт.

6

820341C1

BAR

SHIM, rear bearing pillow block, 530, 540 and 550

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

.531 x 1.250 x .054

2шт.

7

820564C1

BRACE

front side drive support, 530

1шт.

7

820492C1

BRACE

front side drive support, 540, 550 and 555

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

820422C91

HOUSING ASSY.

BEARING ASSY, side drive shaft shield

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 x 5/8 hex hd

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

.406 x 1.00 x .056

2шт.

9

TUBE, side drive shaft front, 530 & 540, use 75.7 in. from 85.7 in. of 820464C1, for service order 1-821066C1 shield

1шт.

9

TUBE, side drive shaft front, 550 & 555, for service order 1-821067C1 shield

1шт.

10

TUBE, side drive shaft rear, 530 & 540, use 36.0 in. from 85.7 in. of 820464C1, for service order 1-821065C1 shield

1шт.

10

TUBE, side drive shaft rear, 550, use 48.0 in. from 85.7 in. of 820464C1, for service order 1-821068C1 shield

1шт.

10

TUBE, side drive shaft rear, 555, use 59.0 in. from 85.7 in. of 820464C1, for service order 1-821069C1 shield & 1-821085C1 support

1шт.

11

820239C1

SUPPORT

rear drive, 530, 540 & 550

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

2шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

NUT, 3/8-16 hex

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

12

820255C1

SUPPORT ASSY, rear drive, 555

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

6шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

2шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 crg

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

13

821066C2

SHIELD

side drive shaft front, 530 and 540

1шт.

14

821067C1

SHIELD

side drive shaft front, 550 and 555, prior to 1977 season

1шт.

15

821822C1

SHIELD

side drive shaft front, 550 and 555, 1977 season and since

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

16

821065C1

SHIELD

side drive shaft rear, 530 and 540

1шт.

17

821068C1

SHIELD

side drive shaft rear, 550

1шт.

18

821069C1

SHIELD

side drive shaft rear, 555

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

19

821085C1

SUPPORT

rear shield, 555

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
