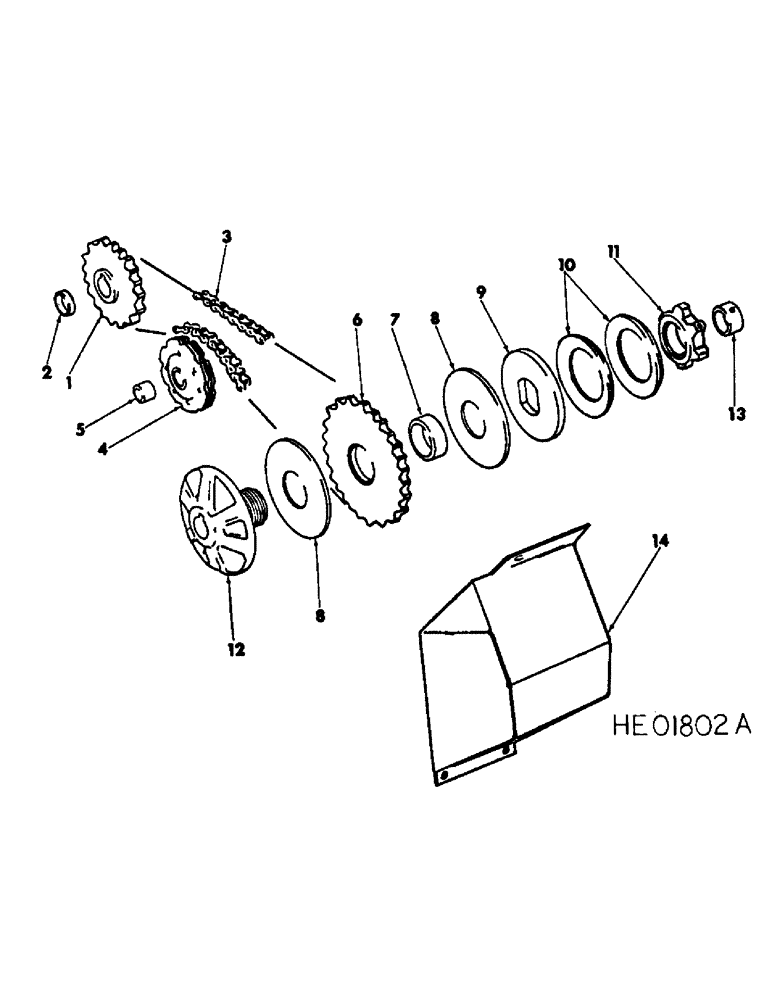

Запчасти Case IH 555 (A-16) - MAIN DRIVE CHAIN AND CLUTCH, 540 RPM, 530, 540, 550 AND 555 MODELS
№
Артикул
Название
Примечание
Количество
1
820266C1
SPROCKET ASSY.
SPROCKET ASSY, 20T main drive, for use w/540 RPM PTO
1шт.
617941R1
PIN,5/16" x 2", Coiled
1шт.
124553
WOODRUFF KEY,#15, 1/4" x 1", HT
1шт.
2
820502C1
SPACER
drive sprocket, 530
1шт.
2
820503C1
SPACER
drive sprocket, 540, 550 & 555
1шт.
3
CHAIN ASSY, main drive, 530, use 49 links of 1-1/2 inch extended pitch roller chain from a 10 foot roll of 569090R91 and add one connecting link of 587368R91
1шт.
3
CHAIN ASSY, main drive, 540, 550 & 555, use 49 links of 1-1/2 inch extended pitch roller chain from a 10 foot roll of 569090R91 and add on connecting link of 587368R91 & one offset link of 567009R91
1шт.
587368R91
CHAIN LINK
CONNECTING LINK
1шт.
567009R91
CHAIN LINK
OFFSET LINK
1шт.
4
820290C91
SPROCKET ASSY.
SPROCKET, 8T main drive chain tightener
1шт.
426-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8
5/8-11 x 2-1/2 hex hd
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
21782R1
WASHER
.656 x 1.500 x .054
1шт.
5
23223R1
SPACER,3/4" X-Strng Pipe x 5/8"
3/4 x 5/8 extra strong pipe
1шт.
6
820247C91
SPROCKET ASSY.
SPROCKET ASSY, 31T main drive clutch, includes 1-592954R1, bushing
1шт.
7
592954R2
BUSHING
clutch sprocket
1шт.
8
592952R1
FACING
clutch
2шт.
9
592955R1
PLATE
clutch
1шт.
10
820669C1
WASHER
clutch
2шт.
11
592957R1
COLLAR
clutch locking
1шт.
12
592951R2
HUB
clutch
1шт.
T14185
KEY, 1/4 x 2-3/4 sq parallel 1/4" Sq x 2 3/4", Par
1шт.
20885R1
WASHER
1.156 x 2.000 x .054
1шт.
13
611902R2
COLLAR
drive clutch retaining
1шт.
83-1316
SET SCREW,Hex Soc, 5/16"-18 x 3/8"
SCREW, 5/16-18 x 3/8 hex soc hd cup pt set
2шт.
14
820367C1
SHIELD
ASSY, main drive clutch
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
Выбрано товаров: 30
