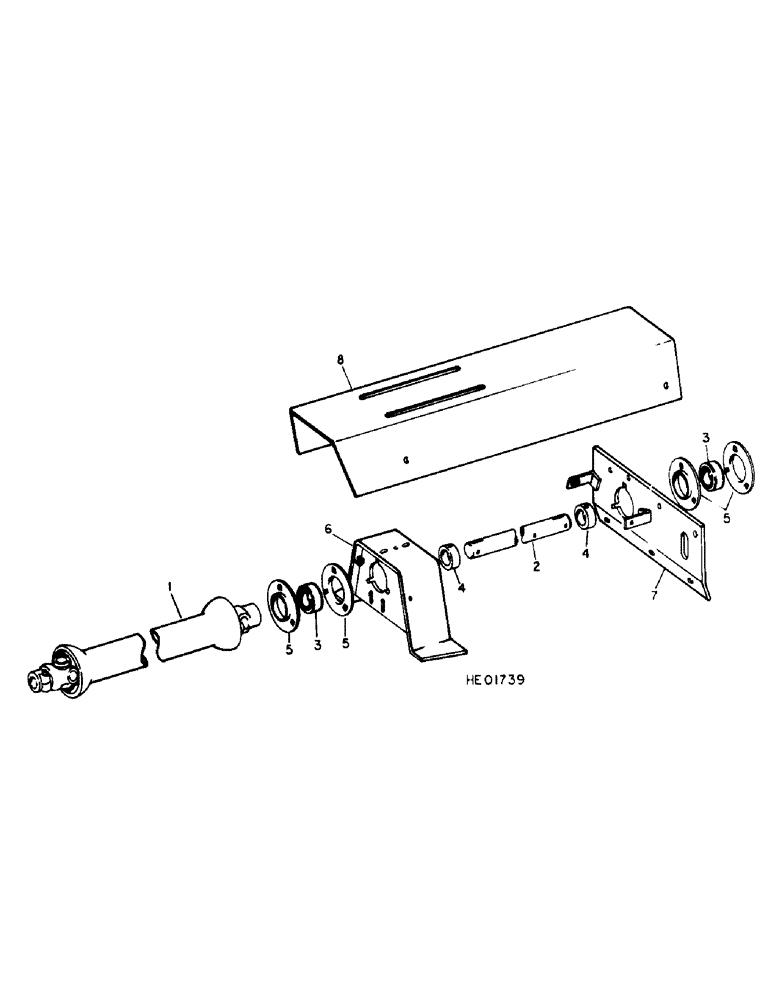

Запчасти Case IH 555 (A-11) - MAIN DRIVE SHAFT FRONT, W/540 RPM, 530, 540, 550 AND 555 MODELS

1

JOINT UNIVERSAL, refer to main drive universal joint, 540 RPM

1шт.

617943R1

PIN,5/16" x 2 1/2", Coiled

1шт.

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

2

820421C1

SHAFT

main drive front

1шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

20885R1

WASHER

1.156 x 2.00 x .054

1шт.

3

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

front shaft

2шт.

4

557115R11

COLLAR

COLLAR ASSY, bearing locking, includes 1-115321, screw-screw, 5/16-18 x 5/16 cup-pt set

1шт.

5

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, bearing

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

619856R1

WASHER

.406 x 1.000 x .056

3шт.

6

820346C2

SUPPORT

ASSY, drive shaft front brg, 530, 550 and 555

1шт.

6

820484C1

SUPPORT

ASSY, drive shaft front brg, 540

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

820481C1

SUPPORT

ASSY, drive shaft rear brg, 540, 550 and 555

1шт.

7

820637C1

SUPPORT

ASSY, drive shaft rear brg, 530

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

8

820511C1

SHIELD

main drive front shaft, for service order 1-822106C91, shield assy

1шт.

8

822106C91

SHIELD

ASSY, main drive front shaft, includes 1-61907C1, caution product graphic, 530, 540 and 550

1шт.

8

820209C2

SHIELD

main drive front shaft, 555

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 hex hd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16

4шт.
