Запчасти Case IH 550 (9-132) - SPLASH SHIELD (09) - CHASSIS/ATTACHMENTS

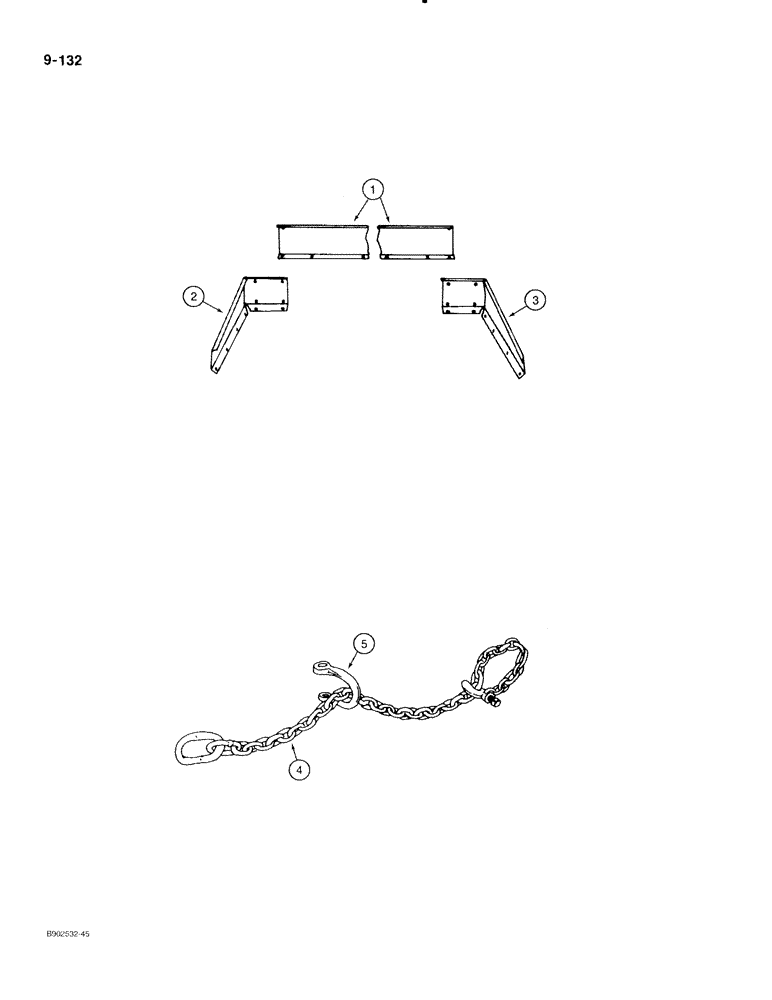

Схема запчастей Case IH 550 - (9-132) - SPLASH SHIELD (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

820696C1

SHIELD

- front splash

1шт.

2

820697C1

SHIELD

- left-hand side

1шт.

3

820698C1

SHIELD

- right-hand side

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Side shields to box sides Hex, 3/8"-16 x 3/4", G5, Full Thd

8шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Side shields to box front top shield Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Side shields to front shield Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Front shield to box front top shield Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Filler bolts in side shields for Models 540 and 550 Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

425-106

NUT,3/8"-16, Cl 5

24шт.

492-11038

LOCK WASHER,3/8"

24шт.

4

63506C2

CHAIN (CE)

CHAIN - safety, 20,000 pounds capactiy, HIGHWAY SAFETY CHAIN

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Highway safety chain Hex, 5/8"-11 x 3 1/2", G5

1шт.

Part of clevis and hardware kit P/N 61913C92.

1шт.

20033R1

LOCK NUT

NUT - hex lock, 5/8 inch NC, HIGHWAY SAFETY CHAIN

1шт.

Part of clevis and hardware kit P/N 61913C92.

1шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-1/2 inch, HIGHWAY SAFETY CHAIN

1шт.

Part of clevis and hardware kit P/N 61913C92.

1шт.

22244R1

LOCK NUT

- hex, self-locking, 3/4 inch NC, HIGHWAY SAFETY CHAIN

1шт.

Part of clevis and hardware kit P/N 61913C92.

1шт.

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 5/32 inch, HIGHWAY SAFETY CHAIN

1шт.

Part of clevis and hardware kit P/N 61913C92.

1шт.

5

148558C1

CLEVIS

- safety chain, HIGHWAY SAFETY CHAIN

1шт.

Part of clevis and hardware kit P/N 61913C92.

1шт.

61913C92

PACKAGE

KIT - clevis and hardware, safety chain, includes P/N 413-1056 through Ref. 5, HIGHWAY SAFETY CHAIN

1шт.

Выбрано товаров: 24
