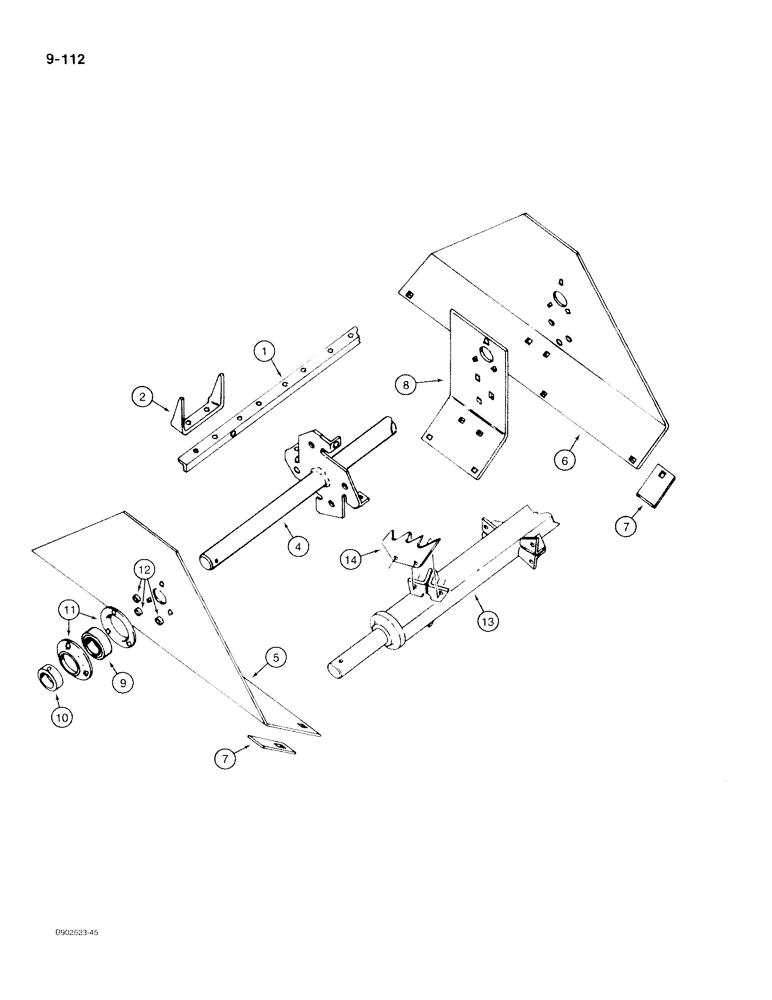

Запчасти Case IH 550 (9-112) - UPPER BEATER AND MOUNTING, MODELS 540 AND 550 ONLY, MACHINES BUILT 1972 TO MAY 1976 (09) - CHASSIS/ATTACHMENTS

1

820446C91

ANGLE

ASSEMBLY - beater number 1, includes items 2 and 3

1шт.

1

820447C91

ANGLE

ASSEMBLY - beater number 2, includes items 2 and 3

1шт.

1

820448C91

ANGLE

ASSEMBLY - beater number 3, includes items 2 and 3

1шт.

1

820449C91

ANGLE

ASSEMBLY - beater number 4, includes items 2 and 3

1шт.

2

593073R1

TOOTH

- beater, double

8шт.

3

106916

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, not shown

14шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Beater angles to shaft brackets Hex, 3/8"-16 x 7/8", G5, Full Thd

12шт.

425-106

NUT,3/8"-16, Cl 5

12шт.

492-11038

LOCK WASHER,3/8"

12шт.

4

820440C1

SHAFT - upper beater

1шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

1шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), , in left-hand end of beater shaft 1/4" x 2 1/2"

1шт.

5

820453C1

SUPPORT

- upper beater, left-hand

1шт.

6

820454C1

SUPPORT

- upper beater, right-hand

1шт.

7

820635C1

BAR

- rear, spacer, upper beater

2шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch, (2) used for supports to box main sides, (1) used for support and rear spacer bar to box left-hand rear side

3шт.

425-106

NUT,3/8"-16, Cl 5

3шт.

492-11038

LOCK WASHER,3/8"

3шт.

8

820452C1

PLATE

- right-hand support reinforcement

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

9

617667R92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

- upper beater shaft

2шт.

10

557995R11

COLLAR

ASSEMBLY - bearing locking

2шт.

83-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - set, headless slotted, 5/16 NC x 5/16 inch, cup point

2шт.

11

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

RETAINER - bearing

4шт.

12

622535R1

SPACER,1/2" X-Strng Pipe x 7/16"

bearing mounting 1/2" X-Strng Pipe x 7/16"

6шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - carriage, 3/8 NC x 1-1/2 inch

3шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

13

821076C2

BEATER

SHAFT - upper beater , MODELS 540 AND 550 - BUILT MAY 1976 AND AFTER MODELS 560 - BUILT 1980 AND AFTER

1шт.

NOTE: Items 13 and 14 replace items 1, 2, 3 and 4 (including hardware) on the models built at the later dates.

1шт.

14

821081C1

PLATE

- upper beater , MODELS 540 AND 550 - BUILT MAY 1976 AND AFTER MODELS 560 - BUILT 1980 AND AFTER

16шт.

NOTE: Items 13 and 14 replace items 1, 2, 3 and 4 (including hardware) on the models built at the later dates.

1шт.

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

Plates to upper beater shaft, Models 540 and 550 - Built May 1976 and after Models 560 - Built 1980 and after Hex, 3/8"-16 x 1", G8, Full Thd

32шт.

NOTE: Items 13 and 14 replace items 1, 2, 3 and 4 (including hardware) on the models built at the later dates.

1шт.

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8 , MODELS 540 AND 550 - BUILT MAY 1976 AND AFTER MODELS 560 - BUILT 1980 AND AFTER

32шт.

NOTE: Items 13 and 14 replace items 1, 2, 3 and 4 (including hardware) on the models built at the later dates.

1шт.

492-11038

LOCK WASHER,3/8"

MODELS 540 AND 550 - BUILT MAY 1976 AND AFTER MODELS 560 - BUILT 1980 AND AFTER 3/8"

32шт.

NOTE: Items 13 and 14 replace items 1, 2, 3 and 4 (including hardware) on the models built at the later dates.

1шт.

608700R1

WASHER

- flat, 1-9/32 x 2 x 3/64 inch , MODELS 540 AND 550 - BUILT MAY 1976 AND AFTER MODELS 560 - BUILT 1980 AND AFTER

8шт.

NOTE: Items 13 and 14 replace items 1, 2, 3 and 4 (including hardware) on the models built at the later dates.

1шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), , Models 540 and 550 - built May 1976 and after; Models 560 - built 1980 and after 1/4" x 2 1/2"

1шт.

NOTE: Items 13 and 14 replace items 1, 2, 3 and 4 (including hardware) on the models built at the later dates.

1шт.
