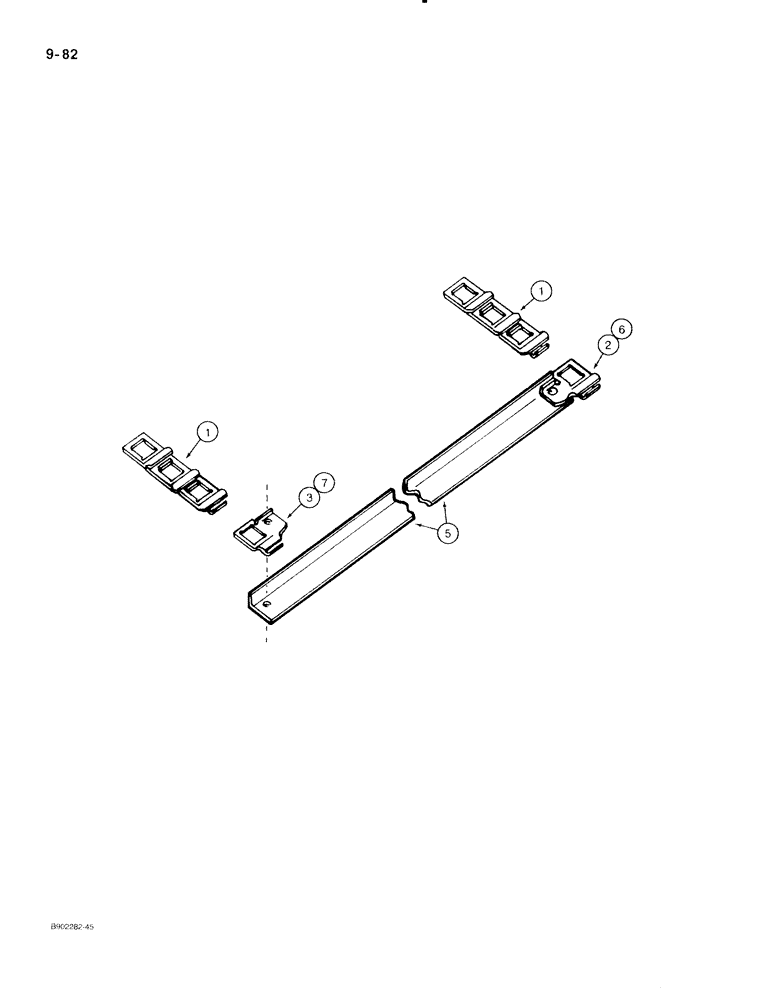

Запчасти Case IH 550 (9-082) - APRON CHAIN, STEEL DETACHABLE TYPE, MODEL 550 ONLY (09) - CHASSIS/ATTACHMENTS

820374C91

CHAIN (AG)

CHAIN ASSEMBLY - apron, complete including angles, steel detachable type, 67XH

1шт.

820375C91

SET

CHAIN ASSEMBLY - includes plain and attaching links

1шт.

1

CS67XH

CHAIN (AG)

CHAIN - plain links, 10 foot long

2шт.

2

820378C1

LINK ASSY.

LINK - left-hand attaching

18шт.

3

820379C1

LINK ASSY.

LINK - right-hand attaching

18шт.

4

106915

RIVET,Tr Hd, 5/16" x 7/8"

- truss head, 5/16 x 7/8", Not shown

36шт.

820334C91

ANGLE

ASSEMBLY - apron

18шт.

5

NSS

NOT SOLD SEPARAT

ANGLE - apron

1шт.

6

820378C1

LINK ASSY.

LINK - left-hand attaching

1шт.

7

820379C1

LINK ASSY.

LINK - right-hand attaching

1шт.

8

106915

RIVET,Tr Hd, 5/16" x 7/8"

- truss head, 5/16 x 7/8", Not shown

2шт.
