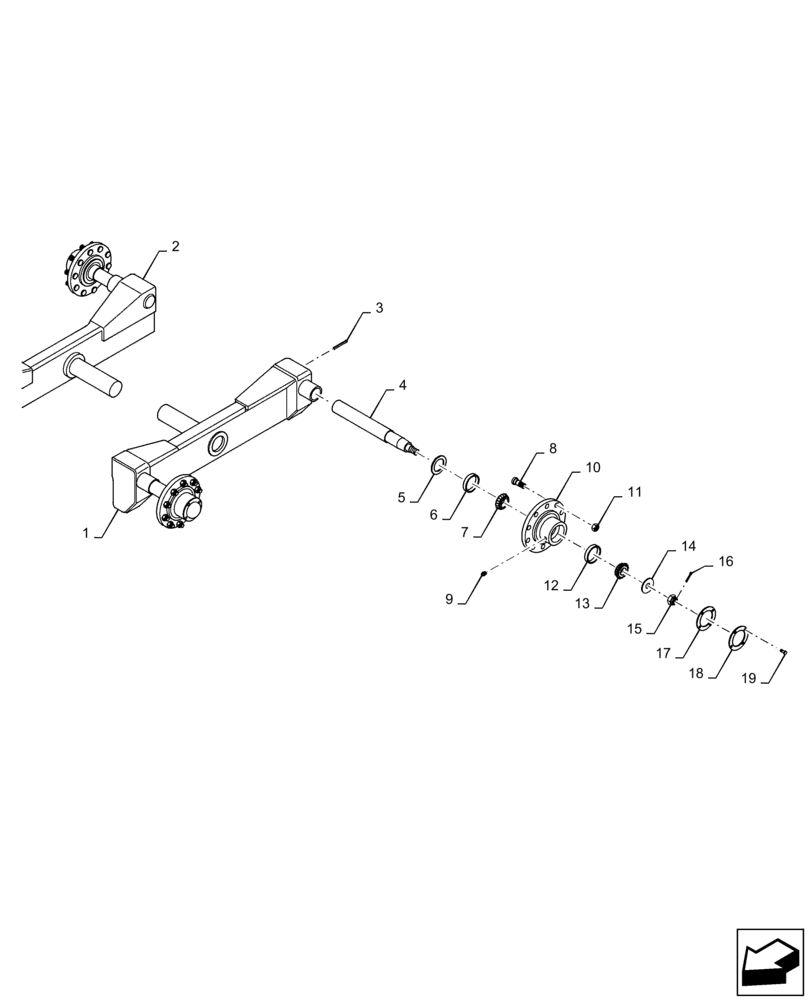

Запчасти Case IH 550 (9-030) - AXLE, TANDEM ASSY, 550 (09) - CHASSIS/ATTACHMENTS

1

47841985

AXLE

Tandem, LH

1шт.

2

47841986

AXLE

Tandem, RH

1шт.

3

86505842

PIN

Slotted

4шт.

4

47841988

SPINDLE

4шт.

5

619443

SEAL,76.2mm ID x 114.48mm OD x 11.89mm Thk

4шт.

6

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

4шт.

7

371884A1

BEARING CONE,63.5mm ID x 30.24mm W

4шт.

8

16412418

STUD

40шт.

9

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

4шт.

10

47841990

HUB

4шт.

11

14091203

NUT

40шт.

12

21884250

BEARING CUP,107.95mm OD

4шт.

13

86594308

BEARING CONE,44.45mm ID x 29.32mm W

4шт.

14

17952632

WASHER

4шт.

15

86528704

SLOTTED NUT,1 1/4"-12

4шт.

16

70929952

COTTER PIN,7/32" x 2"

4шт.

17

47841995

GASKET

Hub Cap

4шт.

18

28487101

HUB CAP

4шт.

19

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

16шт.
