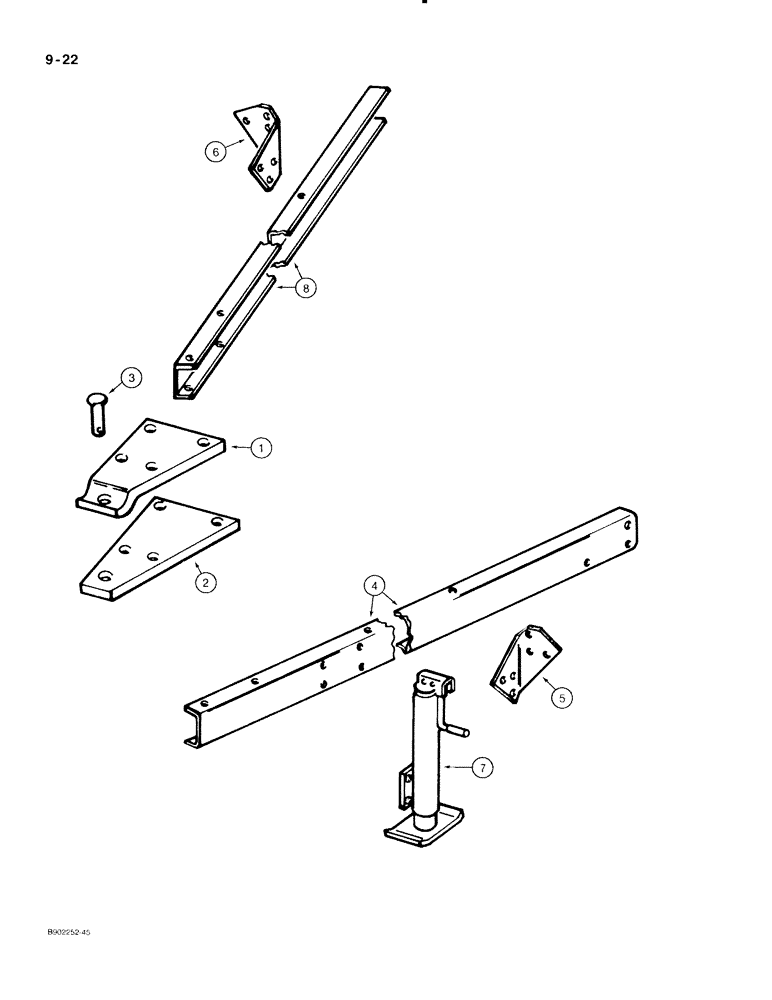

Запчасти Case IH 550 (9-022) - HITCH, USED ON ALL MODELS EXCEPT 560 (09) - CHASSIS/ATTACHMENTS

1

820301C1

PLATE

- clevis, top

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch, top plate to hitch channels

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

820296C1

PLATE

- clevis, bottom, flat, used on Model 530, Model 540 SN 5891 and after and Model 550 SN 4401 and after

1шт.

2

820302C1

PLATE

- clevis, bottom, formed, used on Model 540 prior to SN 5891 and Model 550 prior to SN 4401

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

Bottom plate to hitch channels Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

604683R1

HEADED PIN,1" x 4 1/2"

PIN - headed, 1 x 4-1/2 inch, hitch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

4

820427C1

CHANNEL

- hitch, left-hand side, Model 530 only

1шт.

4

820406C1

CHANNEL

- hitch, left-hand side, Model 540 prior to SN 5891

1шт.

4

821755C1

CHANNEL

- hitch, left-hand side, Model 540 SN 5891 and after

1шт.

4

820303C1

CHANNEL

- hitch, left-hand side, Model 550 prior to SN 4401

1шт.

4

821372C1

CHANNEL

- hitch, left-hand side, Model 550 SN 4401 and after

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Hitch channels to axle Hex, 1/2"-13 x 1 1/2", G5, Full Thd

3шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Hitch channels to supports Hex, 1/2"-13 x 1", G5, Full Thd

3шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

5

820372C1

SUPPORT

- hitch channel, left-hand side

1шт.

6

820373C1

SUPPORT

- hitch channel, right-hand side

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Supports to box front crossmember Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

7

821785C91

JACK

- hitch

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Jack to left-hand hitch channel

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

8

820428C1

CHANNEL

- hitch, right-hand side, used on Model 530 only

1шт.

8

820407C1

CHANNEL

- hitch, right-hand side, used on Model 540 prior to SN 5891

1шт.

8

821756C1

CHANNEL

- hitch, right-hand side, used on Model 540 SN 5891 and after

1шт.

8

820304C1

CHANNEL

- hitch, right-hand side, used on Model 550 prior to SN 4401

1шт.

8

821373C1

CHANNEL

- hitch, right-hand side, used on Model 550 SN 4401 and after

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Hitch channels to axle Hex, 1/2"-13 x 1 1/2", G5, Full Thd

3шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Hitch channel to supports Hex, 1/2"-13 x 1", G5, Full Thd

3шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.
