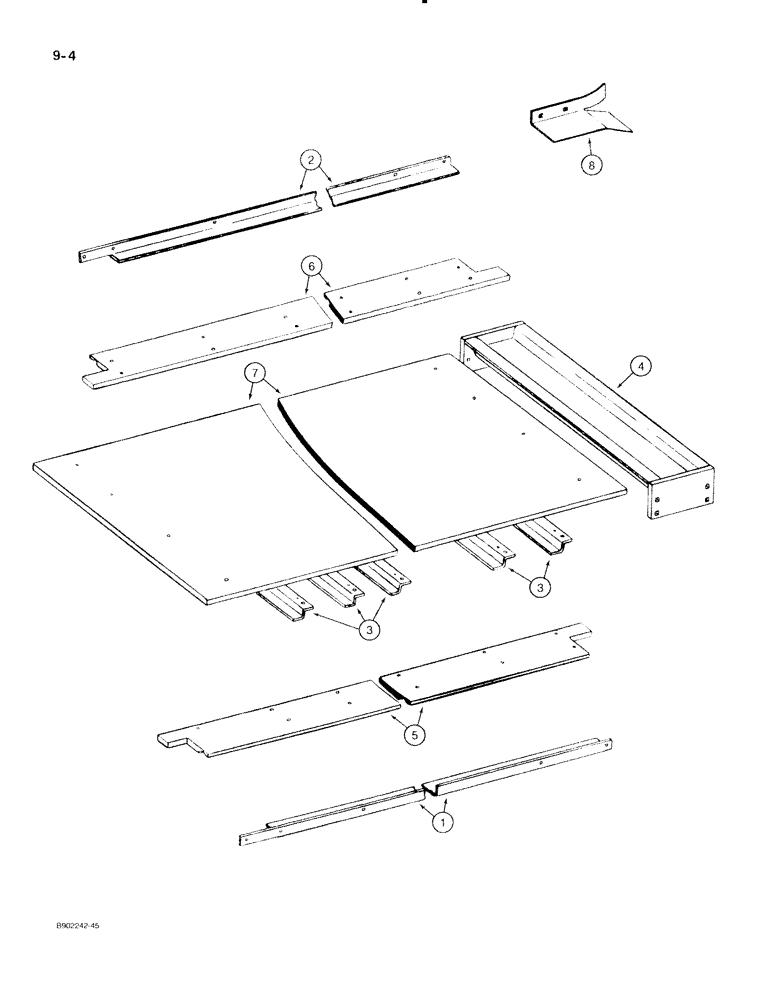

Запчасти Case IH 550 (9-004) - SPREADER BOX , BOTTOM, THREE PIECE BOARD CONNECTING, MODEL 550, PRIOR TO SERIAL NUMBER 5718 (09) - CHASSIS/ATTACHMENTS

1

820312C2

ANGLE

- box bottom support, left-hand side

1шт.

2

820313C2

ANGLE

- box bottom support, right-hand side

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

12шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, self-locking, flange, 3/8 inch NC

12шт.

3

821835C1

MEMBER

CROSSMEMBER - box bottom, replaces 820287C1 crossmember

6шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

14шт.

425-106

NUT,3/8"-16, Cl 5

14шт.

492-11038

LOCK WASHER,3/8"

14шт.

4

821474C2

MEMBER

CROSSMEMBER - box bottom, rear, replaces 820286C1 and 821474C1 crossmembers

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

820682C2

BOARD

- box bottom, outer, left-hand

1шт.

434-420

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

BOLT - carriage, 1/4 NC x 1-1/4 inch

14шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

14шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

14шт.

6

820683C2

BOARD

- box bottom, outer, right-hand

1шт.

434-420

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

BOLT - carriage, 1/4 NC x 1-1/4 inch

14шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

14шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

14шт.

7

820677C1

BOARD

- box bottom, center, no longer available, for service order (1) 821848C2 board, (1) 821849C2 borad, (1) 821854C2 board, (1) 821855C2 board, (see page 9-9, items 14, 15, 16, and 17) with (1) 821835C1 crossmember, item 3 above

1шт.

434-420

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

BOLT - carriage, 1/4 NC x 1-1/4 inch

35шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

35шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

35шт.

8

REF

INSTRUCTION

GUIDE - center apron chain, for service parts see page 9-77

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.
