Запчасти Case IH 550 (8-002) - HYDRAULIC HOSES AND CYLINDERS (08) - HYDRAULICS

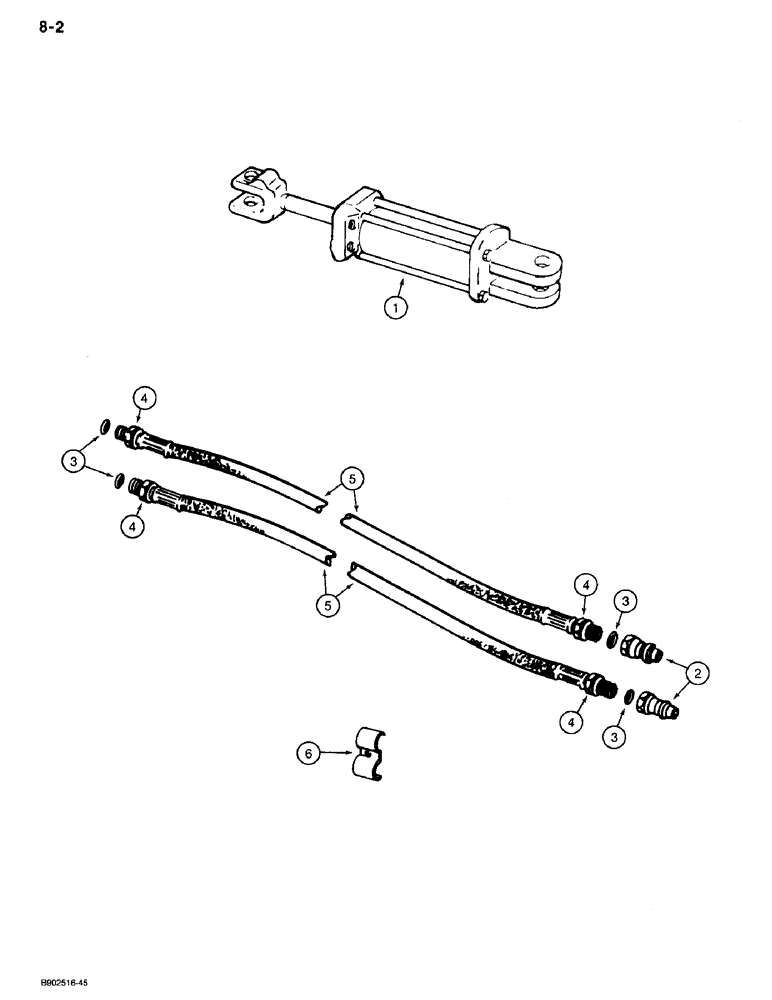

Схема запчастей Case IH 550 - (8-002) - HYDRAULIC HOSES AND CYLINDERS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

140683C94

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 3-1/2 ID x 8 inch stroke, endgate, parts list page 8-5, no longer available, for service order 1272147C91 cylinder assembly, parts list page 8-7

1шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch, cylinder mounting, use with 140683C94 cylinder assembly (above)

2шт.

520175R1

CLIP

PIN - hair, 3/16 inch diameter, use with 140683C94 cylinder assembly (above)

2шт.

1

1272147C91

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke, endgate, parts list page 8-7

1шт.

1

371292R95

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke, endgate, parts list page 8-9, no longer available, for service order 1263474C91 cylnider assembly plus (2) 1252129C1 adapters and (2) 237-6008 O-rings, part list page 8-11

1шт.

1

1263474C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 ID x 8 inch stroke, endgate, parts list page 8-11

1шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch, cylinder mounting, use with 1263474C91 cylinder assembly (above)

2шт.

520175R1

CLIP

PIN - hair, 3/16 diameter, use with 1263474C91 cylinder assembly (above)

2шт.

1

403842R93

CYLINDER ASSEMBLY - 3-1/2 ID x 8 inch stroke, endgate, parts list page 8-13, no longer available, for service order 1263474C91 cylinder assembly plus (2) each of 1252129C1 adapters, 237-6008 O-rings 28432R1 pins and 520175C1 pins, parts list page 8-11

1шт.

1

546719R91

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke, endgate, parts list page 8-15, no longer available, for service order 1272147C91 cylinder assembly plus (2) 1252129C1 adapters and (2) 237-6008 O-rings, part list page 8-7

1шт.

1

61105C91

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke, endgate, parts list page 8-17, no longer available, for service order 1272147C91 cylinder assembly plus (2) 1252129C1 adapters and (2) 237-6008 O-rings, parts list page 8-7

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - 3/4-16 male x 7/8-14 inch female O-ring boss

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

2

1272399C2

QUICK MALE COUPLING

COUPLING - hose, 7/8-14 inch thread, replaces 395149R1 coupling, if used

2шт.

2

1341843C1

QUICK MALE COUPLING

COUPLING - hose, 7/8-14 inch thread, for 66 series tractor, replaces 544787R91 coupling, if used

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

4

997928R1

FITTING,7/8" x 14 Female JIC, 1/2" Hose ID

COUPLING - 7/8-14 inch x flare swivel

4шт.

4

997974R1

FITTING,7/8" x 14 Male ORB, 1/2" Hose ID

COUPLING - 7/8-14 inch str thread, O-ring fixed

4шт.

5

407117R3

HOSE

- 1/2 ID, one wire braid, make hoses from bulk stock, select length to suit installation, if used

2шт.

5

407120R2

HOSE

- 1/2 inch ID, two wire braid, make hoses from bulk stock, select length to suit installation, if used

2шт.

6

677168R1

CLAMP

- hydraulic hoses

2шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch, clamp to main drive front shaft shield

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

Выбрано товаров: 24
