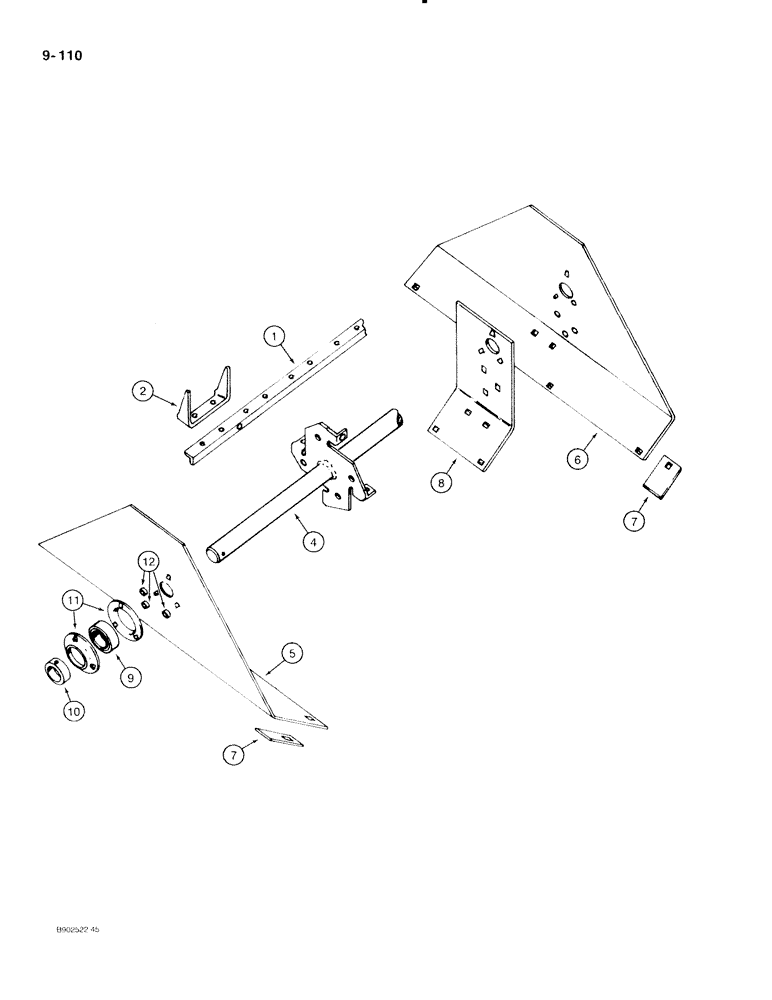

Запчасти Case IH 530 (9-110) - UPPER BEATER AND MOUNTING, MODEL 530 ONLY (09) - CHASSIS/ATTACHMENTS

1

820531C91

ANGLE

ASSEMBLY - beater number 1, includes items 2 and 3

1шт.

1

820532C91

ANGLE

ASSEMBLY - beater number 2, includes items 2 and 3

1шт.

1

820533C91

ANGLE

ASSEMBLY - beater number 3, includes items 2 and 3

1шт.

1

820534C91

ANGLE

ASSEMBLY - beater number 4, includes items 2 and 3

1шт.

2

593073R1

TOOTH

- beater, double

7шт.

3

106916

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, not shown

14шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Beater angles to shaft brackets Hex, 3/8"-16 x 7/8", G5, Full Thd

12шт.

425-106

NUT,3/8"-16, Cl 5

12шт.

492-11038

LOCK WASHER,3/8"

12шт.

4

820543C1

SHAFT

- upper beater

1шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch, on beater shaft between bearing and cotter pin or between bearing and sprocket

1шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), , in left-hand end of beater shaft 1/4" x 2 1/2"

1шт.

5

820453C1

SUPPORT

- upper beater, left-hand

1шт.

6

820454C1

SUPPORT

- upper beater, right-hand

1шт.

7

820635C1

BAR

- rear, spacer, upper beater

2шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch, (2) used for supports to box main sides, (1) used for support and rear spacer bar to box left-hand rear side

3шт.

425-106

NUT,3/8"-16, Cl 5

3шт.

492-11038

LOCK WASHER,3/8"

3шт.

8

820452C1

PLATE

- right-hand support reinforcement

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, , RH upper beater support and reinforcement plate to box main and rear sides and RH vertical support Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

9

617667R92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

- upper beater shaft

2шт.

10

557995R11

COLLAR

ASSEMBLY - bearing locking

2шт.

83-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - set, headless slotted, 5/16 NC x 5/16 inch, cup point

2шт.

11

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

RETAINER - bearing

4шт.

12

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

- bearing mounting

6шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, , Bearing retainers and spacers to LH beater support Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - carriage, 3/8 NC x 1-1/2 inch, bearing retainers and spacers to right-hand beater support and reinforcement plate

3шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

492-11038

LOCK WASHER,3/8"

6шт.
