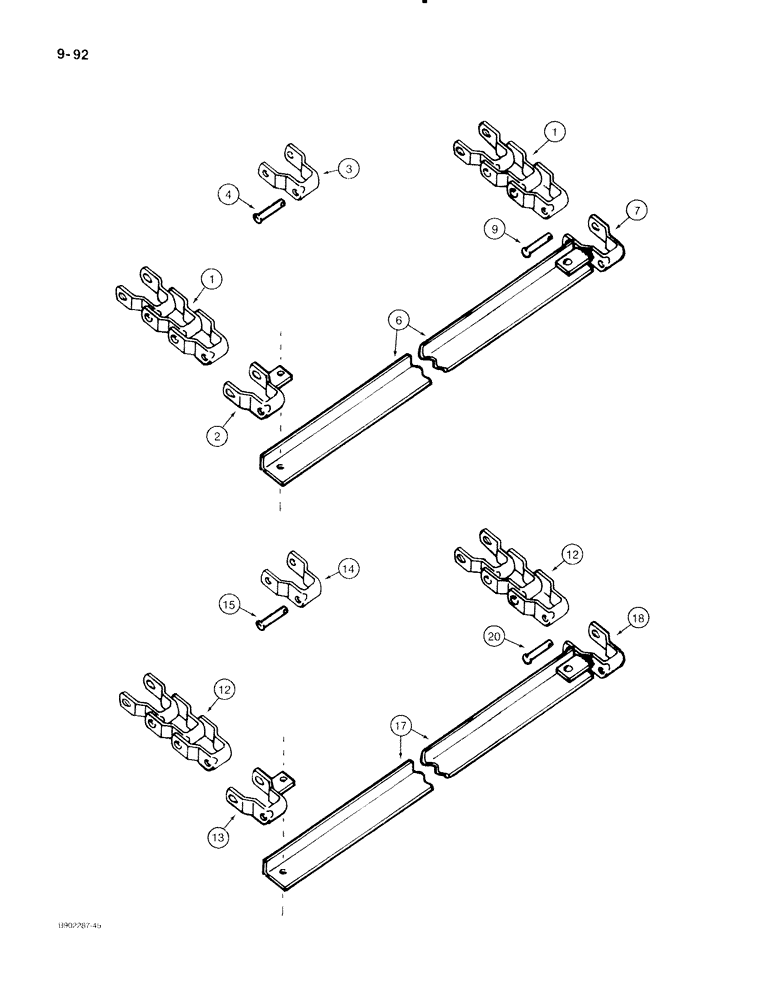

Запчасти Case IH 530 (9-092) - APRON CHAIN, PINTLE TYPE, MODEL 530 ONLY (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
820395C91
CHAIN (AG)
CHAIN ASSEMBLY - apron, complete including angles, pintle type, type, 667X, optional with 820377C91 chain assembly see below
1шт.
For chain assembly, use (92) plain links and assemble in sequence of (1) space of (2) connecting links, (1) plain link and (1) attaching link then (14) spaces of (5) plain links and (1) attaching link and (3) spaces of (6) plain links and (1) attaching link followed by (3) plain links.
1шт.
820389C91
CHAIN (AG)
CHAIN ASSEMBLY - includes plain and attaching links
1шт.
1
NSS
NOT SOLD SEPARAT
CHAIN - plain links, 10 foot long, CSD 667X
2шт.
2
820383C1
LINK
- 667X pintle type, attaching
36шт.
3
820667C1
LINK
- 667X pintle type, connecting
188шт.
4
821370C1
PIN
- chain coupler, 7/16 inch diameter
2шт.
5
187352
COTTER PIN,1/8" x 3/4", Stainless
Pin, Split (Cotter), , not shown 1/8" x 3/4", Stainless
2шт.
820344C92
ANGLE
ASSEMBLY - 667X pintle type apron with attaching links
18шт.
6
NSS
NOT SOLD SEPARAT
ANGLE - apron
1шт.
7
820383C1
LINK
- 667X pintle type, attaching
2шт.
8
106915
RIVET,Tr Hd, 5/16" x 7/8"
- truss head, 5/16 x 7/8", Not shown
2шт.
9
821370C1
PIN
- chain coupler, 7/16 inch diameter
4шт.
10
187352
COTTER PIN,1/8" x 3/4", Stainless
Pin, Split (Cotter), , not shown 1/8" x 3/4", Stainless
4шт.
11
106915
RIVET,Tr Hd, 5/16" x 7/8"
- truss head, 5/16 x 7/8", Not shown
36шт.
820377C91
CHAIN (AG)
CHAIN ASSEMBLY - apron, complete including angles, pintle type, 667J, optional with 8250395C91 chain assembly, see above
1шт.
820314C91
CHAIN (AG)
CHAIN ASSEMBLY - includes plain and attaching links
1шт.
12
NSS
NOT SOLD SEPARAT
CHAIN - plain links, 10 foot long, CSD 667X
2шт.
13
820366C1
LINK
- 667J pintle type, attaching
36шт.
14
820376C1
LINK
- 667J pintle type, connecting
188шт.
15
821371C1
PIN
- chain coupler, 3/8 inch diameter
2шт.
16
187352
COTTER PIN,1/8" x 3/4", Stainless
Pin, Split (Cotter), , not shown 1/8" x 3/4", Stainless
2шт.
820420C92
ANGLE ASSEMBLY - 667J pintle type apron with attaching links
18шт.
17
NSS
NOT SOLD SEPARAT
ANGLE - apron
1шт.
18
820366C1
LINK
- 667J pintle type, attaching
2шт.
19
106915
RIVET,Tr Hd, 5/16" x 7/8"
- truss head, 5/16 x 7/8", Not shown
2шт.
20
821371C1
PIN
- chain coupler, 3/8 inch diameter
4шт.
21
187352
COTTER PIN,1/8" x 3/4", Stainless
Pin, Split (Cotter), , not shown 1/8" x 3/4", Stainless
4шт.
22
106915
RIVET,Tr Hd, 5/16" x 7/8"
- truss head, 5/16 x 7/8", Not shown
36шт.
