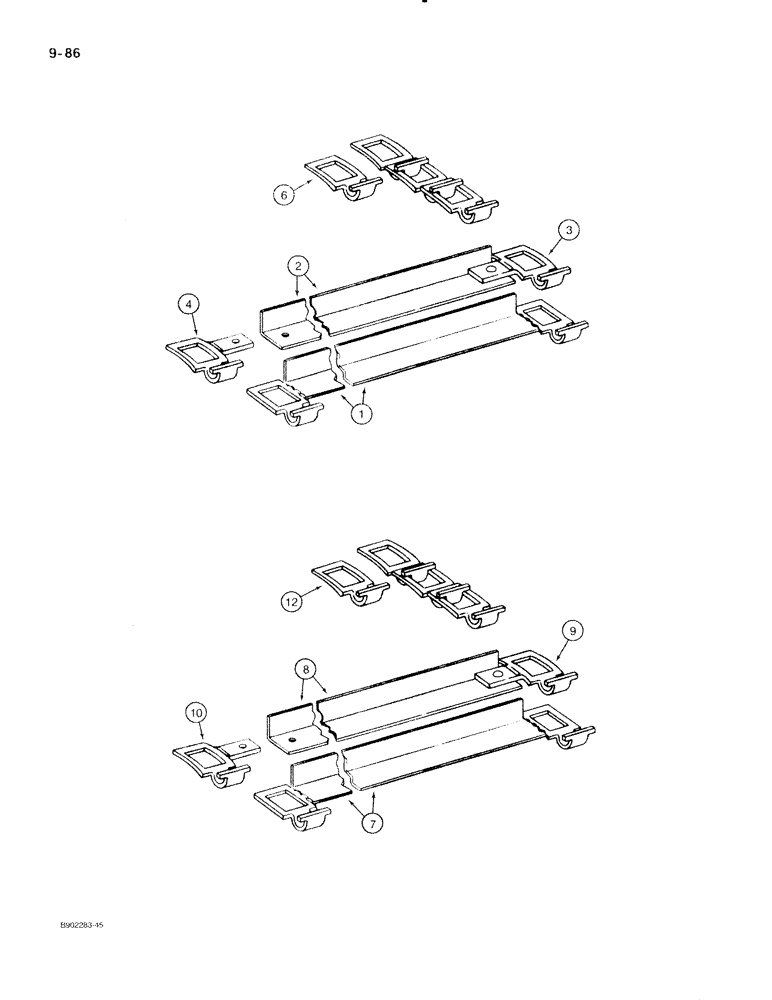

Запчасти Case IH 530 (9-086) - APRON CHAIN, HEAVY DUTY LOCK TYPE, LINKS WITH INSIDE EDGES PARALLEL, MODEL 550 ONLY (09) - CHASSIS/ATTACHMENTS

821396C91

PACKAGE

CHAIN ASSEMBLY - apron, complete including angles, heavy duty lock type , MODEL 550 ONLY

1шт.

1

NSS

NOT SOLD SEPARAT

ANGLE ASSEMBLY - apron, welded, for service order 821949C91 angle assembly , MODEL 550 ONLY

22шт.

821949C91

ANGLE

ASSEMBLY - apron , MODEL 550 ONLY

22шт.

2

NSS

NOT SOLD SEPARAT

ANGLE - apron , MODEL 550 ONLY

1шт.

3

821941C1

LINK

- left-hand attaching , MODEL 550 ONLY

1шт.

4

821942C1

LINK

- right-hand attaching , MODEL 550 ONLY

1шт.

5

106916

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, not shown , MODEL 550 ONLY

2шт.

6

821940C1

LINK

- apron, plain , MODEL 550 ONLY

192шт.

822389C91

CHAIN (CE)

CHAIN ASSEMBLY - apron, complete including angles, heavy duty lock type , MODEL 560 ONLY

1шт.

7

NSS

NOT SOLD SEPARAT

ANGLE ASSEMBLY - apron, welded, for service order 821949C91 angle assembly , MODEL 560 ONLY

26шт.

821949C91

ANGLE

ASSEMBLY - apron , MODEL 560 ONLY

26шт.

8

NSS

NOT SOLD SEPARAT

ANGLE - apron , MODEL 560 ONLY

1шт.

9

821941C1

LINK

- left-hand attaching , MODEL 560 ONLY

1шт.

10

821942C1

LINK

- right-hand attaching , MODEL 560 ONLY

1шт.

11

106916

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, not shown , MODEL 560 ONLY

2шт.

12

821940C1

LINK

- apron, plain , MODEL 560 ONLY

228шт.
