Запчасти Case IH 530 (9-080) - APRON CHAIN, STEEL DETACHABLE TYPE, MODEL 530 ONLY (09) - CHASSIS/ATTACHMENTS

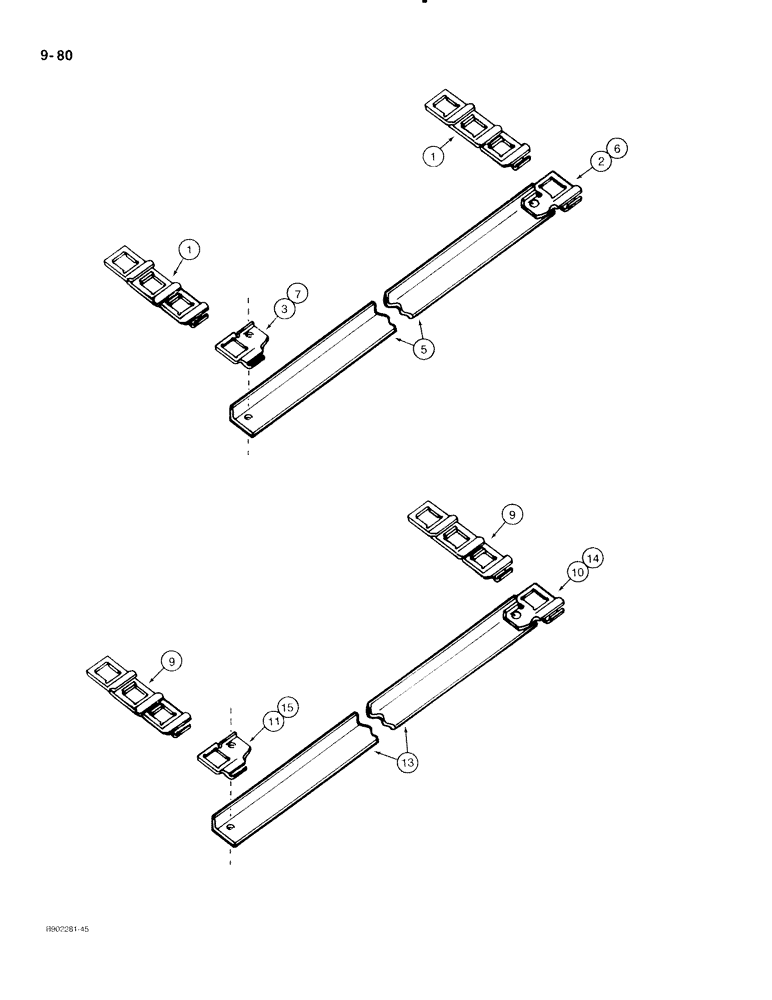

Схема запчастей Case IH 530 - (9-080) - APRON CHAIN, STEEL DETACHABLE TYPE, MODEL 530 ONLY (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

820390C91

CHAIN (AG)

CHAIN ASSEMBLY - apron, complete including angles, steel detachable type, 67H

1шт.

820391C91

CHAIN (AG)

CHAIN ASSEMBLY - includes plain and attaching links

1шт.

1

CS67H

CHAIN (AG)

CHAIN - plain links, 10 foot long

2шт.

2

820404C1

LINK

- left-hand attaching

14шт.

3

820405C1

LINK

- right-hand attaching

14шт.

4

106915

RIVET,Tr Hd, 5/16" x 7/8"

- truss head, 5/16 x 7/8", Not shown

1шт.

820329C91

ANGLE

ASSEMBLY - apron

14шт.

5

NSS

NOT SOLD SEPARAT

ANGLE - apron

1шт.

6

820404C1

LINK

- left-hand attaching

1шт.

7

820405C1

LINK

- right-hand attaching

1шт.

8

106915

RIVET,Tr Hd, 5/16" x 7/8"

- truss head, 5/16 x 7/8", Not shown

1шт.

820384C91

CHAIN (AG)

CHAIN ASSEMBLY - apron, complete including angles, steel detachable type, 67H , MODEL 540 ONLY

1шт.

820385C91

CHAIN (AG)

CHAIN ASSEMBLY - includes plain and attaching links , MODEL 540 ONLY

1шт.

9

CS67XH

CHAIN (AG)

CHAIN - plain links, 10 foot long , MODEL 540 ONLY

2шт.

10

820378C1

LINK ASSY.

LINK - left-hand attaching , MODEL 540 ONLY

15шт.

11

820379C1

LINK ASSY.

LINK - right-hand attaching , MODEL 540 ONLY

15шт.

12

106915

RIVET,Tr Hd, 5/16" x 7/8"

- truss head, 5/16 x 7/8", Not shown, Model 540 only

1шт.

820334C91

ANGLE

ASSEMBLY - apron , MODEL 540 ONLY

14шт.

13

NSS

NOT SOLD SEPARAT

ANGLE - apron , MODEL 540 ONLY

1шт.

14

820378C1

LINK ASSY.

LINK - left-hand attaching , MODEL 540 ONLY

1шт.

15

820379C1

LINK ASSY.

LINK - right-hand attaching , MODEL 540 ONLY

1шт.

16

106915

RIVET,Tr Hd, 5/16" x 7/8"

- truss head, 5/16 x 7/8", Not shown, Model 540 only

1шт.

Выбрано товаров: 22
