Запчасти Case IH 530 (9-076) - FRONT APRON SHAFT, USED ON ALL MODELS EXCEPT 560 (09) - CHASSIS/ATTACHMENTS

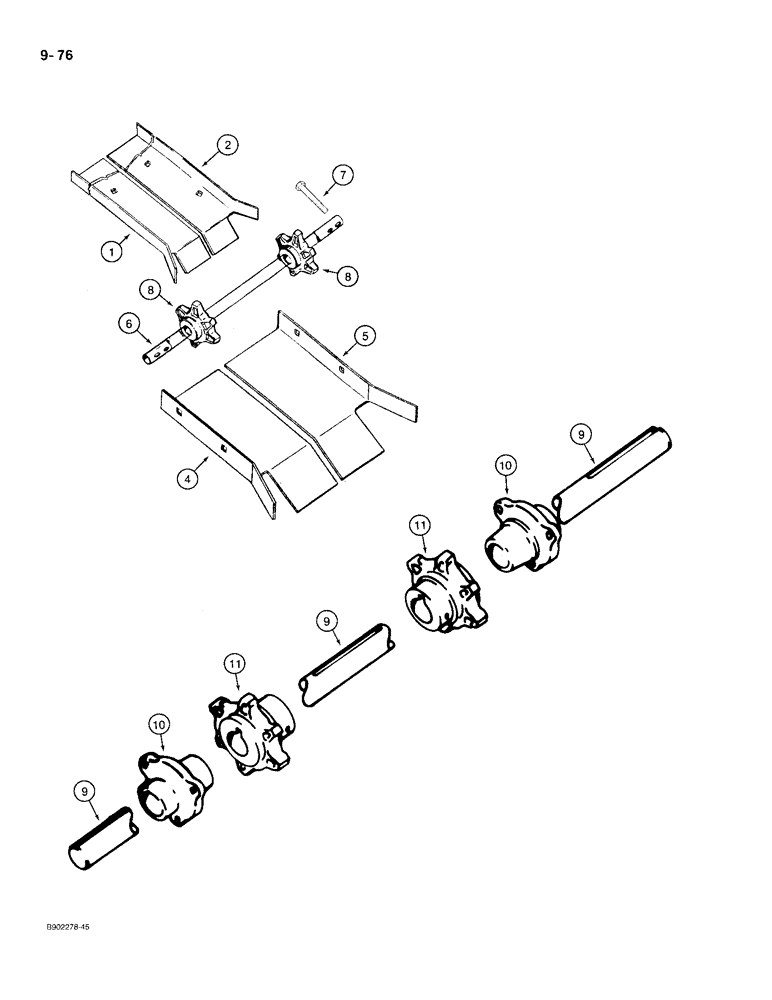

Схема запчастей Case IH 530 - (9-076) - FRONT APRON SHAFT, USED ON ALL MODELS EXCEPT 560 (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

820664C5

GUIDE

- left-hand front, apron chain

1шт.

2

820700C5

GUIDE

- right-hand front, apron chain

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, guides to hitch channels

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

3

820365C1

GUIDE

- center, apron chain, left-hand and right-hand side, replaced with one each of 822179C1 left-hand guide and 822180C1 right-hand guide, items 4 and 5, not shown

2шт.

4

822179C1

GUIDE

- center, apron chain, left-hand, replaces 820365C1 guide, by also ordering 822180C1 right-hand guide, item 5

1шт.

5

822180C1

GUIDE

- center, apron chain, right-hand, replaces 820365C1 guide by also ordering 822179C1 left-hand guide, item 4

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, guides to axle

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

6

820431C1

TUBE,1.25" OD, 51.4" Length

- front apron, used on Model 530 only

1шт.

6

820354C1

TUBE,1.25" OD, 63.4" Length

- front apron, used on Model 540 and 550

1шт.

7

820430C1

BOLT,Hex, 1/2" - 13 x 5 1/2", Full Thd

- apron tightener

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

495-81206

WASHER,32.54mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-9/32 x 2-1/2 x 3/32 inch, on apron tube

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), , in apron tube 1/4" x 2 1/2"

2шт.

8

820433C1

SPROCKET ASSY.

SPROCKET - front apron, 6 teeth

2шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch

2шт.

9

820437C1

SHAFT

- rear apron, used on Model 530 only , USED ON ALL MODELS EXCEPT 560

1шт.

9

820269C1

SHAFT

- rear apron, used on Model 540 and 550 only , USED ON ALL MODELS EXCEPT 560

1шт.

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-13/32 x 2 x 3/64 inch, four used on apron shaft ends, four used on apron shaft between gearbox and bearing , REAR, USED ON ALL MODELS EXCEPT 560

8шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), , in right-hand end of shaft, rear apron, used on all models except 560 1/4" x 2 1/2"

2шт.

10

820268C1

SUPPORT,1.381" ID x 2" OD x 2.45"

- rear apron shaft , USED ON ALL MODELS EXCEPT 560

2шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch , REAR APRON SHAFT, USED ON ALL MODELS EXCEPT 560

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, bearings to box rear sides , APRON SHAFT, USED ON ALL MODELS EXCEPT 560

6шт.

425-106

NUT,3/8"-16, Cl 5

Rear Apron Shaft, Used on all Models except 560 3/8"-16, G5

6шт.

492-11038

LOCK WASHER,3/8"

REAR APRON SHAFT, USED ON ALL MODELS EXCEPT 560 3/8"

6шт.

11

820271C1

SPROCKET ASSY.

SUPPORT - rear apron, 6 teeth , SHAFT, USED ON ALL MODELS EXCEPT 560

2шт.

Q5023

KEY,5/16" Sq x 2 1/4", Par

- 5/16 square x 2-1/4 inch parallel , REAR APRON SHAFT, USED ON ALL MODELS EXCEPT 560

2шт.

138-2029

PIN,7.92mm OD x 63.5mm L, Coiled

Rear apron shaft, used on all models except 560 5/16" x 2 1/2", Coiled

2шт.
