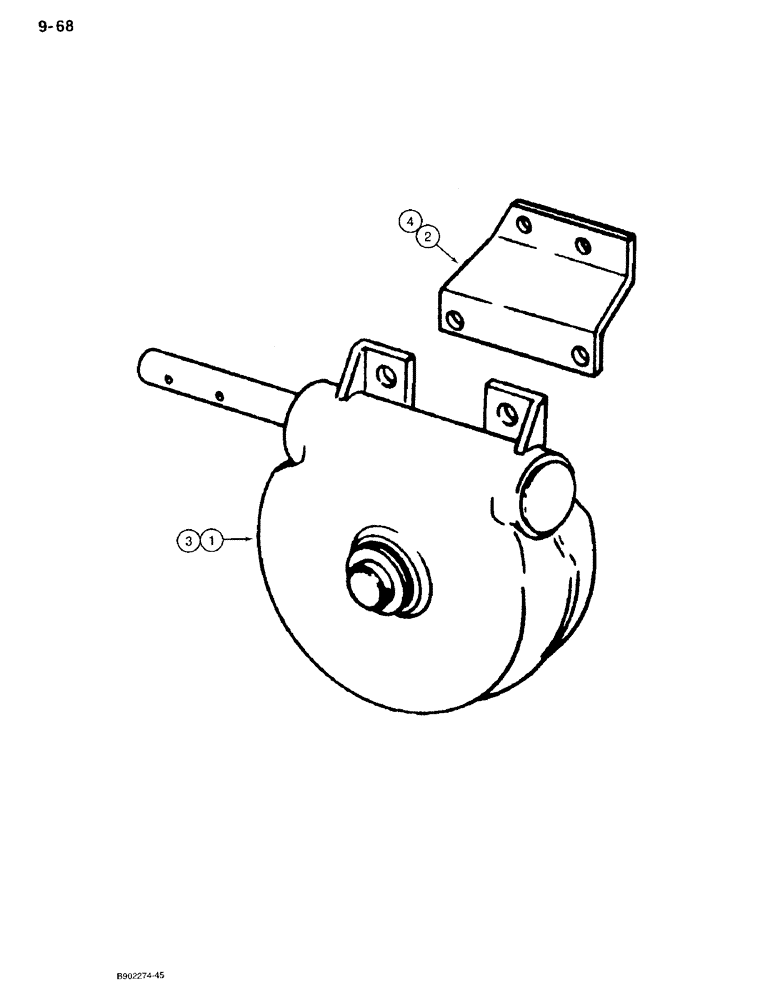

Запчасти Case IH 530 (9-068) - APRON DRIVE GEARBOX SUPPORTS, USED ON ALL MODELS EXCEPT 560 (09) - CHASSIS/ATTACHMENTS

1

820500C95

CASE ASSY.

GEARBOX - apron drive gear, parts list page 9-65

1шт.

629280R1

KEY,5/16" Sq x 3 1/2", Par

- square parallel, 5/16 x 3-1/2 inch, drive gear to apron shaft

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, gearbox to apron shaft

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

2

820319C1

SUPPORT

- gearbox

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, support to widespread drive support angle lower and box left-hand rear side

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

3

822273C93

CASE ASSY.

GEARBOX - apron drive gear, parts list page 9-67 , MODEL 560 ONLY

1шт.

Q75

KEY - square parallel, 1/4 x 2 inch, drive gear to apron shaft , MODEL 560 ONLY 3/8" Sq x 4", Par

2шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, gearbox to support , MODEL 560 ONLY

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Model 560 Only 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Model 560 only 1/2"

2шт.

4

821485C1

SUPPORT

- gearbox , MODEL 560 ONLY

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, support to widespread drive support angle lower and box left-hand rear side , MODEL 560 ONLY

2шт.

425-106

NUT,3/8"-16, Cl 5

Model 560 Only 3/8"-16, G5

2шт.

492-11038

LOCK WASHER,3/8"

MODEL 560 ONLY 3/8"

2шт.
