Запчасти Case IH 530 (9-064) - APRON DRIVE GEARBOX, USED ON ALL MODELS EXCEPT 560 (09) - CHASSIS/ATTACHMENTS

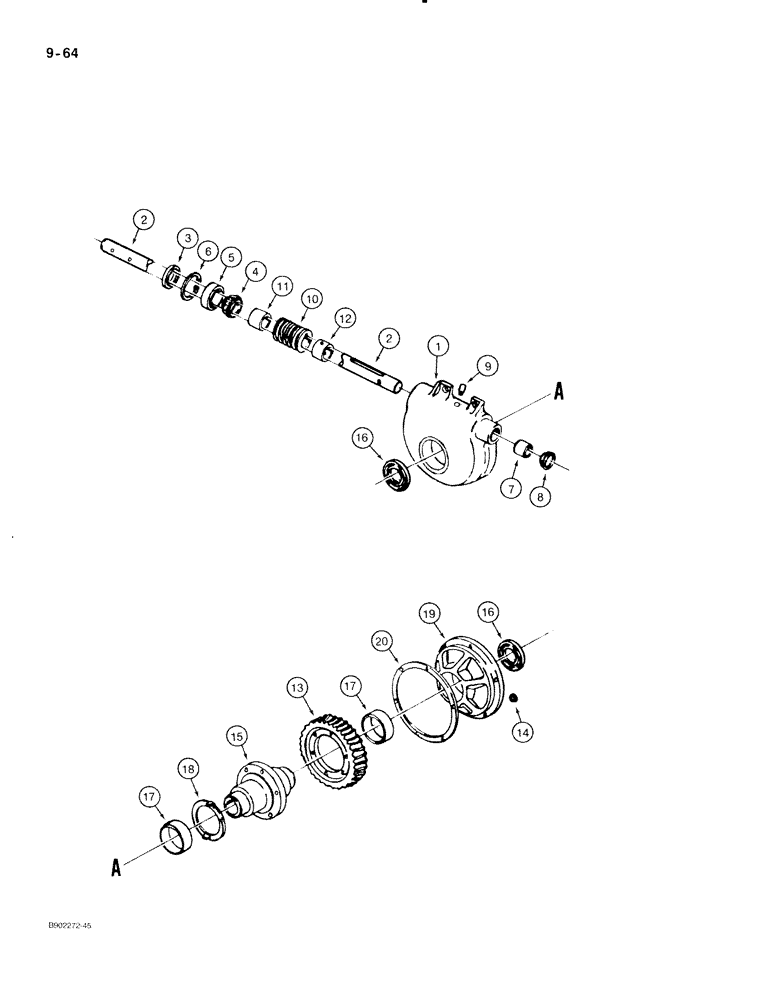

Схема запчастей Case IH 530 - (9-064) - APRON DRIVE GEARBOX, USED ON ALL MODELS EXCEPT 560 (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

820500C95

CASE ASSY.

GEARBOX ASSEMBLY - apron drive gear

1шт.

1

95925C91

CASE

HOUSING - apron drive gear, replaces 820227C1 housing

1шт.

2

820226C2

SHAFT

- gearbox input

1шт.

3

820225C1

SEAL

- input shaft

1шт.

4

594446R91

ROLLER BEARING

BEARING - tapered roller, input shaft

1шт.

5

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP - tapered roller bearing, input shaft

1шт.

6

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , brg 2.44", Int, #244

1шт.

7

820221C2

BUSHING

- input shaft

1шт.

338835R1

SNAP RING,1.125", Int, #112

Ring, Snap, , bushing 1.125", Int, #112

1шт.

8

41600D

PLUG,Cup, 1 1/8"

- cup, 1-1/8 inch diameter

1шт.

9

684184R1

PLUG

- vent

1шт.

10

820223C2

GEAR

- apron, drive worm type

1шт.

479370R1

KEY,1/4" Sq x 2", Par

- square parallel, 1/4 x 2 inch, worm gear to input shaft

1шт.

11

820224C2

SPACER

- worm gear, front

1шт.

12

820222C1

SPACER

- worm gear, rear

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

spacers to input shaft 1/4" x 1 1/2", Coiled

2шт.

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 3/64 inch

1шт.

495-81075

WASHER,1.03" ID x 2" OD x 0.03" Thk

- flat, 1-1/32 x 2 x 1/32 inch

1шт.

13

820459C1

GEAR

- apron drive, 50 teeth

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, drive gear to hub

6шт.

14

A31046

WASHER

- gasket

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

15

820460C1

HUB

- apron drive gear

2шт.

16

824097C91

SEAL

- apron drive gear

2шт.

17

820218C1

BUSHING

- apron drive gear

2шт.

18

820220C1

THRUST WASHER

- thrust, apron drive gear

1шт.

19

820216C1

COVER

- gearbox

1шт.

20

820228C1

GASKET

- gearbox cover

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, cover and gasket to gearbox

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

Выбрано товаров: 30
