Запчасти Case IH 530 (9-058) - APRON DRIVE CHAINS AND SPROCKETS, NOT USED ON MODEL 560 (09) - CHASSIS/ATTACHMENTS

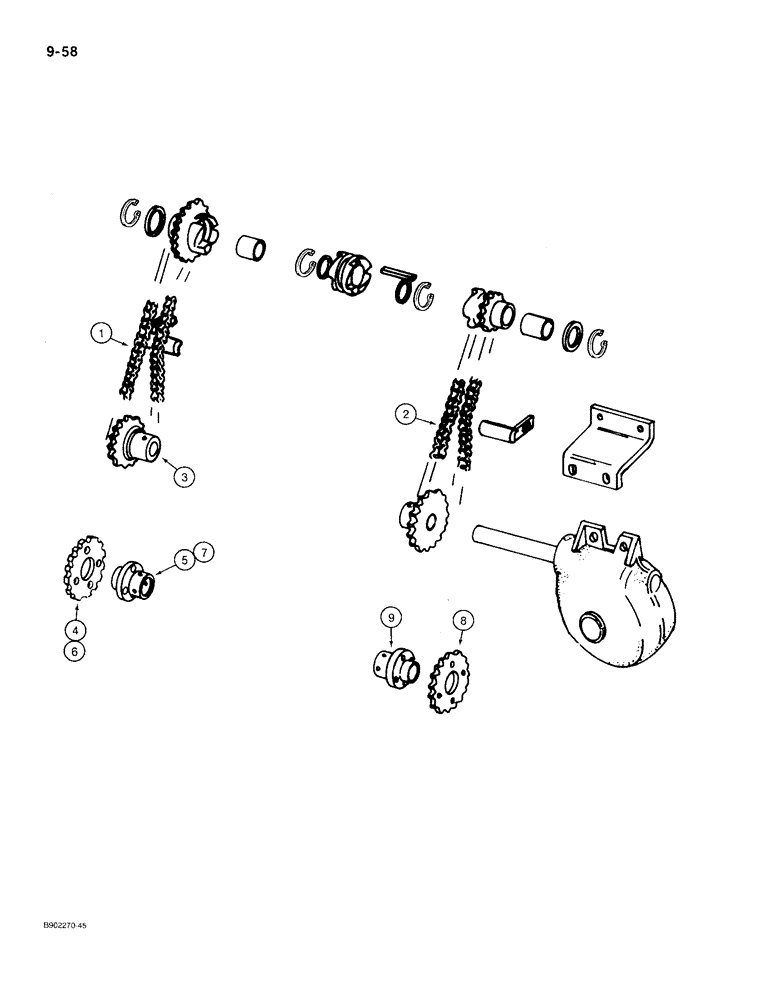

Схема запчастей Case IH 530 - (9-058) - APRON DRIVE CHAINS AND SPROCKETS, NOT USED ON MODEL 560 (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CHAIN ASSEMBLY - apron drive, regular fast speed, 26 drive to 21 teeth driven, use (61) links of 1790D roller chain plus (1) 1301D connecting link and (2) 1303D offset links

1шт.

1

REF

INSTRUCTION

CHAIN ASSEMBLY - apron drive, optional fast speed, 26 drive to 26 teeth driven, use (65) links of 1790D roller chain plus (1) 1301D connecting link and (1) 1303D offset link

1шт.

1

REF

INSTRUCTION

CHAIN ASSEMBLY - apron drive, special fast speed, 26 drive to 33 teeth driven, use (69) links of 1790D roller chain plus (1) 1301D connecting link and (1) 1303D offset link

1шт.

1

REF

INSTRUCTION

CHAIN ASSEMBLY - apron drive, special fast speed, 26 driven to 41 teeth driven, use (73) links of 1790D roller chain plus (1) 1301D connecting link and (1) 1303D offset link

1шт.

2

REF

INSTRUCTION

CHAIN ASSEMBLY - apron drive, regular slow speed, 14 drive to 26 teeth driven, use (57) links of 1790D roller chain plus (1) 1301D connecting link and (2) 1303D offset links

1шт.

2

REF

INSTRUCTION

CHAIN ASSEMBLY - apron drive, optional slow speed, 14 drive to 21 teeth driven, use (57) links of 1790D roller chain plus (1) 1301D connecting link

1шт.

2

REF

INSTRUCTION

CHAIN ASSEMBLY - apron drive, optional slow speed, 14 drive to 33 teeth driven, use (63) links of 1790D roller chain plus (1) 1301D connecting link

1шт.

2

REF

INSTRUCTION

CHAIN ASSEMBLY - apron drive, optional slow speed, 14 drive to 41 teeth driven, used (67) of links 1790D roller chain plus (1) 1301D connecting link

1шт.

3

820342C1

SPROCKET ASSY.

SPROCKET - apron driven, 21 teeth, fast speed or for use in lieu of regular sprocket for optional slow speed drive

2шт.

432-1248

COTTER PIN,3/16" x 3"

driven sprockets to apron driven 3/16" x 3"

2шт.

821594C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - apron driven, 26 teeth, for use in lieu of regular sprocket for optional fast or slow speed drives

1шт.

4

820928C1

SPROCKET ASSY.

SPROCKET - fast or slow speed, 26 teeth

1шт.

5

820494C2

HUB

- driven sprocket

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, sprocket to hub

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

820579C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - apron driven, 33 teeth, for use in lieu of regular sprocket for optional fast or slow speed drives

1шт.

6

820656C1

SPROCKET ASSY.

SPROCKET - fast or slow speed, 33 teeth

1шт.

7

820494C2

HUB

- driven sprocket

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, sprocket to hub

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

820653C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - apron driven, 41 teeth, for use in lieu of regular sprocket for optional fast or slow speed drives

1шт.

8

820237C1

SPROCKET ASSY.

SPROCKET - fast or slow speed, 41 teeth

1шт.

9

820494C2

HUB

- driven sprocket

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, sprocket to hub

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

1790D

CHAIN (AG)

CHAIN - roller, bulk, 1/2 inch x 10 foot

1шт.

Выбрано товаров: 26
