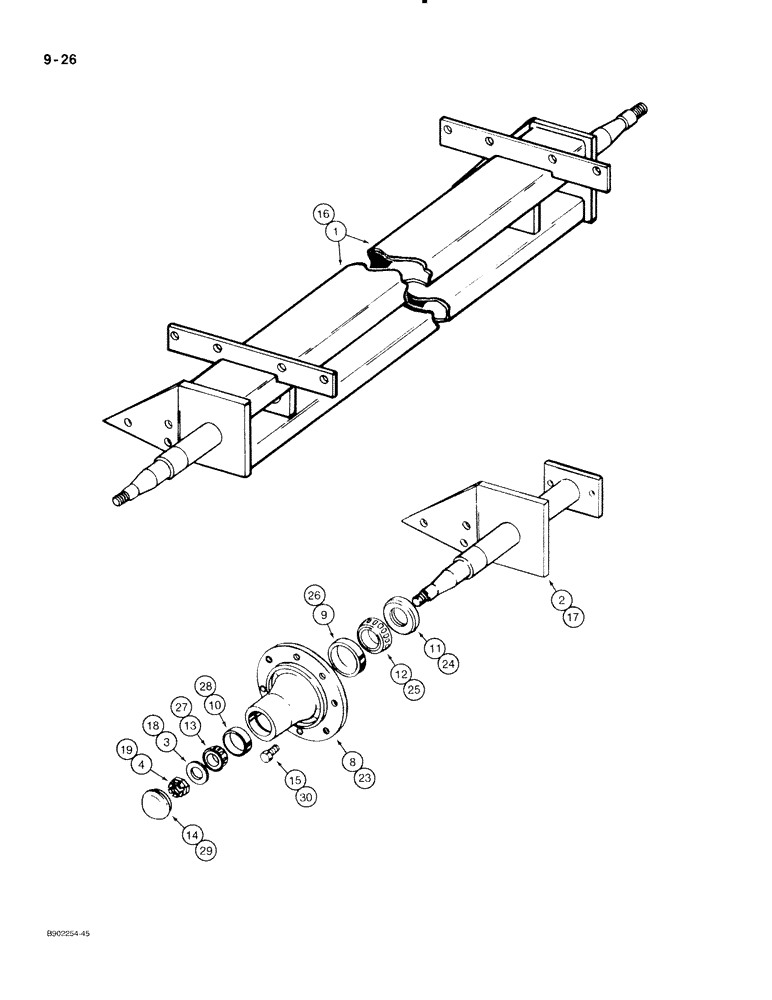

Запчасти Case IH 530 (9-026) - AXLES AND SUPPORTS, MODEL 530, 540, 550 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
820525C91
AXLE
ASSEMBLY - Model 530 only
1шт.
2
820540C91
SPINDLE
- left - hand axle
1шт.
3
95-81032
WASHER,29/32" x 2" x .179"
- flat, 29/32 x 2 x 5/32 inch
1шт.
4
70120D
SLOTTED NUT,7/8"-14
NUT - hex, slotted, 7/8 inch NF
1шт.
432-828
COTTER PIN,1/8" x 1 3/4"
PIN, SPLIT (COTTER), 1/8" x 1 3/4"
1шт.
5
820462C91
SPINDLE
- right-hand axle, not shown
1шт.
6
95-81032
WASHER,29/32" x 2" x .179"
- flat, 29/32 x 2 x 5/32 inch, not shown
1шт.
7
70120D
SLOTTED NUT,7/8"-14
NUT - hex, slotted, 7/8 inch NF, not shown
1шт.
432-828
COTTER PIN,1/8" x 1 3/4"
PIN, SPLIT (COTTER), 1/8" x 1 3/4"
1шт.
434-820
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
BOLT - carriage, 1/2 NC x 1-1/4 inch, axle mounting bar to box side and box bottom support side angle
4шт.
434-824
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
BOLT - carriage, 1/2 NC x 1-1/2 inch, axle mounting bar to box side, center vertical support and box bottom support side angle
4шт.
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
8шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
8шт.
8
606468R21
HUB
- wheel, replaces 606468R11 hub
2шт.
9
663558R1
BEARING CUP
CUP - tapered roller bearing, inner, wheel hub
2шт.
10
B12408
BEARING CUP,59.156 mm OD x 11.862 mm
CUP - tapered roller bearing, outer, wheel hub
2шт.
11
606556R91
OIL SEAL
SEAL - axle spindle oil
2шт.
12
663557R91
BEARING ASSY,1.625" ID x 2.892" OD x 0.77"
BEARING - tapered roller, inner, wheel hub
2шт.
13
B12409
BEARING, ROLLER,31.763 mm ID x 16.84 mm
BEARING - tapered roller, outer, wheel hub
2шт.
14
663906R1
CAP
- wheel hub
2шт.
219-87
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap
2шт.
15
351079R1
BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"
- wheel, 1/2 NF x 7/8 inch
12шт.
16
820569C91
AXLE
ASSEMBLY - Models 540 and 550 only
1шт.
17
820571C91
SPINDLE
- left-hand axle, MODELS 540 AND 550 ONLY
1шт.
18
95-81032
WASHER,29/32" x 2" x .179"
- flat, 29/32 x 2 x 5/32 inch, MODELS 540 AND 550 ONLY
1шт.
19
70120D
SLOTTED NUT,7/8"-14
NUT - hex, slotted, 7/8 inch NF, MODELS 540 AND 550 ONLY
1шт.
432-828
COTTER PIN,1/8" x 1 3/4"
PIN, SPLIT (COTTER), , Models 540 and 550 only 1/8" x 1 3/4"
1шт.
20
820592C91
SPINDLE
- right-hand axle, not shown, MODELS 540 AND 550 ONLY
1шт.
21
95-81032
WASHER,29/32" x 2" x .179"
- flat, 29/32 x 2 x 5/32 inch, not shown, MODELS 540 AND 550 ONLY
1шт.
22
70120D
SLOTTED NUT,7/8"-14
NUT - hex, slotted, 7/8 inch NF, not shown, MODELS 540 AND 550 ONLY
1шт.
432-828
COTTER PIN,1/8" x 1 3/4"
PIN, SPLIT (COTTER), , Models 540 and 550 only 1/8" x 1 3/4"
1шт.
434-820
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
BOLT - carriage, 1/2 NC x 1-1/4 inch, axle mounting bar to box side and box bottom support side angle, MODELS 540 AND 550 ONLY
4шт.
434-824
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
BOLT - carriage, 1/2 NC x 1-1/2 inch, axle mounting bar to box side, center vertical support and box bottom support side angle, MODELS 540 AND 550 ONLY
4шт.
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex, Models 540 and 550 Only 1/2"-13, G5
8шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, , Models 540 and 550 only 1/2"
8шт.
23
592920R2
HUB
- wheel, MODELS 540 AND 550 ONLY
2шт.
24
821414C1
OIL SEAL
- axle spindle oil, MODELS 540 AND 550 ONLY
2шт.
25
ST2118
TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"
BEARING - tapered roller, inner, wheel hub, MODELS 540 AND 550 ONLY
2шт.
26
ST987
BEARING CUP
CUP - tapered roller bearing, inner, wheel hub, MODELS 540 AND 550 ONLY
2шт.
27
642955R91
BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"
BEARING - tapered roller, outer, wheel hub, MODELS 540 AND 550 ONLY
2шт.
28
642954R1
BEARING ASSY,1" ID x 2.441" OD x 0.8125"
CUP - tapered roller bearing, outer, wheel hub, MODELS 540 AND 550 ONLY
2шт.
29
612884R1
HUB CAP
CAP - wheel hub, MODELS 540 AND 550 ONLY
2шт.
30
617918R1
BOLT,9/16" - 18 x 1 15/32"
- wheel, 9/16 NF x 7/8 inch, MODELS 540 AND 550 ONLY
16шт.
Выбрано товаров: 43
