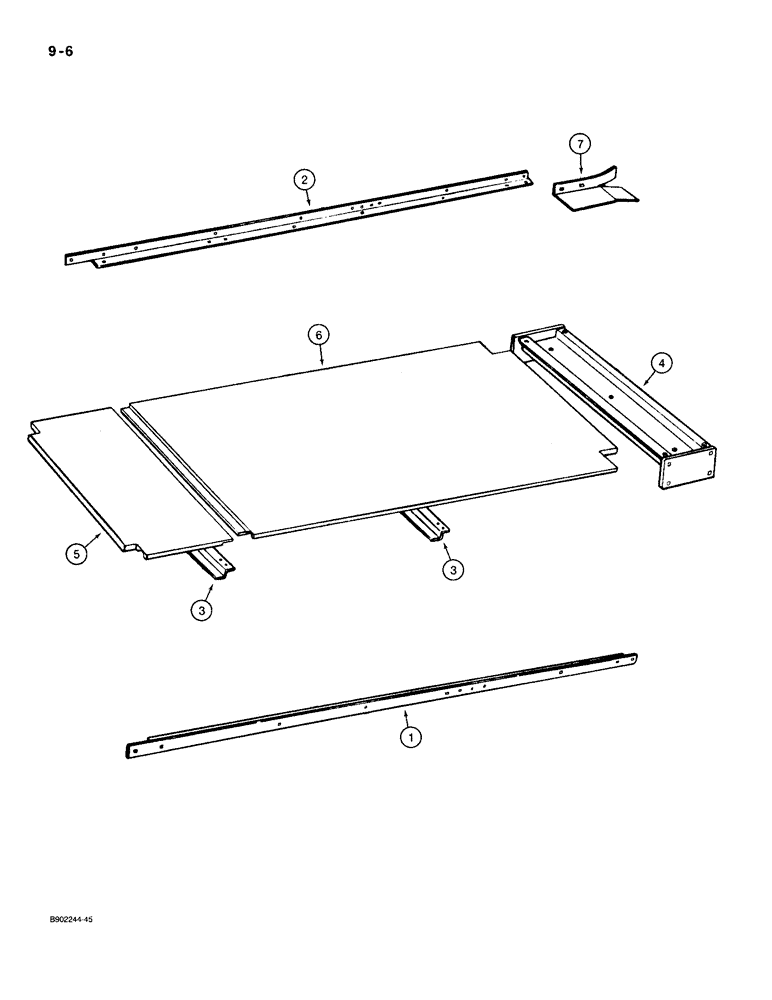

Запчасти Case IH 530 (9-006) - SPREADER BOX, BOTTOM, TWO PIECE BOARD CONNECTING, MODEL 530 ONLY, SERIAL NUMBER 5930 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

820400C2

ANGLE

- box bottom support, left-hand side

1шт.

2

820401C2

ANGLE

- box bottom support, right-hand side

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch, side angles to sides

8шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, self-locking, 3/8 inch NC

8шт.

3

821834C1

MEMBER

CROSSMEMBER - box bottom, front and intermediate

5шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, crossmembers to side angles

14шт.

425-106

NUT,3/8"-16, Cl 5

14шт.

492-11038

LOCK WASHER,3/8"

14шт.

4

821690C2

MEMBER

CROSSMEMBER - box bottom, rear

1шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch, rear crossmember to rear right-hand side, main right-hand side and rear

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

821847C2

BOARD

- box bottom, front

1шт.

6

821846C2

BOARD

- box bottom, rear

1шт.

434-520

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - carriage, 5/16 NC x 1-1/4 inch

24шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, self-locking, 5/16 inch NC

24шт.

7

REF

INSTRUCTION

GUIDE - center apron chain, for service parts see page 9-77

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.
