Запчасти Case IH 530 (9-002) - SPREADER BOX, BOTTOM, THREE PIECE BOARD CONNECTING, MODEL 530, PRIOR TO SERIAL NUMBER 5930 (09) - CHASSIS/ATTACHMENTS

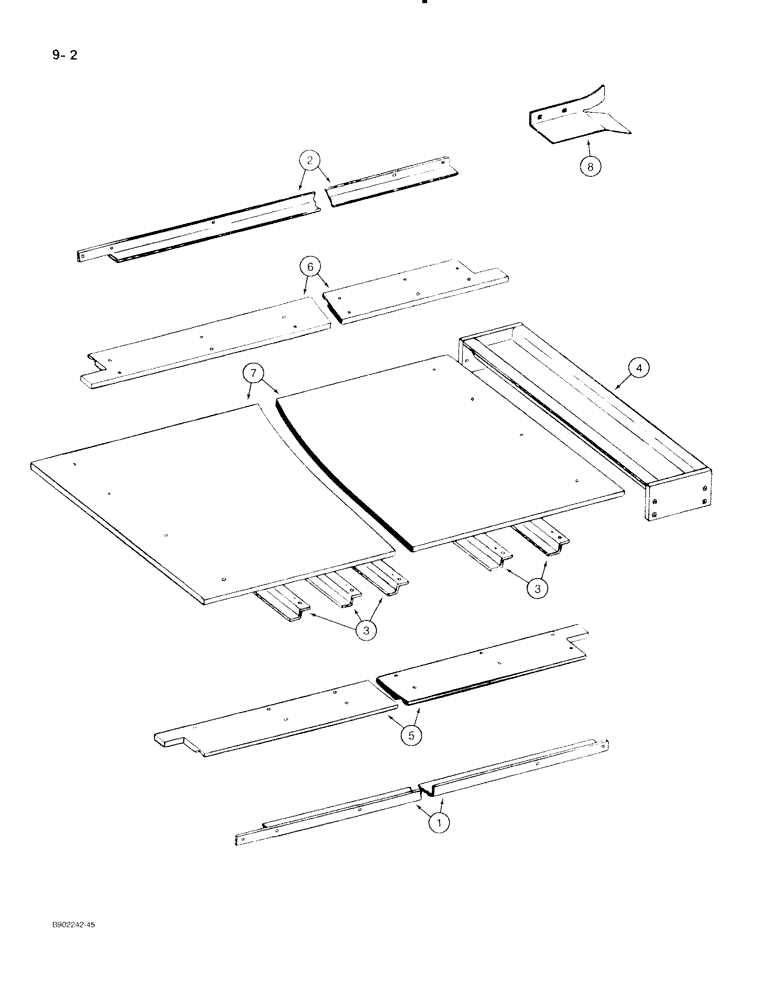

Схема запчастей Case IH 530 - (9-002) - SPREADER BOX, BOTTOM, THREE PIECE BOARD CONNECTING, MODEL 530, PRIOR TO SERIAL NUMBER 5930 (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

820400C2

ANGLE

- box bottom support, left-hand side

1шт.

2

820401C2

ANGLE

- box bottom support, right-hand side

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

10шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange, self-locking, 3/8 inch NC

10шт.

3

821834C1

MEMBER

CROSSMEMBER - box bottom, front and intermediate, use on Model 530 only, replaces 820288C1 crossmember

5шт.

3

821835C1

MEMBER

CROSSMEMBER - box bottom, front and intermediate, use on Model 540 only, replaces 820287C1 crossmember

5шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, crossmembers to side angles

14шт.

425-106

NUT,3/8"-16, Cl 5

14шт.

492-11038

LOCK WASHER,3/8"

14шт.

4

821690C2

MEMBER

CROSSMEMBER - box bottom, rear, replaces 820291C1 and 821690C1 crossmember, use on Model 530 only

1шт.

4

821474C2

MEMBER

CROSSMEMBER - box bottom, rear, replaces 820286C1 and 821474C1 crossmember, use on Model 540 only

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1 - 1/2 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

820680C2

BOARD

- box bottom, outer, left-hand

1шт.

434-420

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

BOLT - carriage, 1/4 NC x 1-1/4 inch

12шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

12шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

12шт.

6

820681C2

BOARD

- box bottom, outer, right-hand

1шт.

434-420

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

BOLT - carriage, 1/4 NC x 1-1/4 inch

12шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

12шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

12шт.

7

820679C1

BOARD

- box bottom, center, Model 530 only, no longer available, for service order (1) 821846C2 board, (1) 821847C2 board, (see page 9-7, items 5 and 6) with (1) 821834C1 crossmember, item 3 above

1шт.

7

820678C1

BOARD

- box bottom, center, Model 540 only, no longer available, for service order (1) 821848C2 board, (1) 821849C2 board, (1) 821850C2 board, and (1) 821851C2 board, (see page 9-9, items 5 through 8 with (1) 821835C1 crossmember, item 3, above

1шт.

434-420

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

BOLT - carriage, 1/4 NC x 1 - 1/4 inch, bottom board mounting

30шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

30шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

30шт.

8

REF

INSTRUCTION

GUIDE - center apron chain, for service see page 9-77

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.
