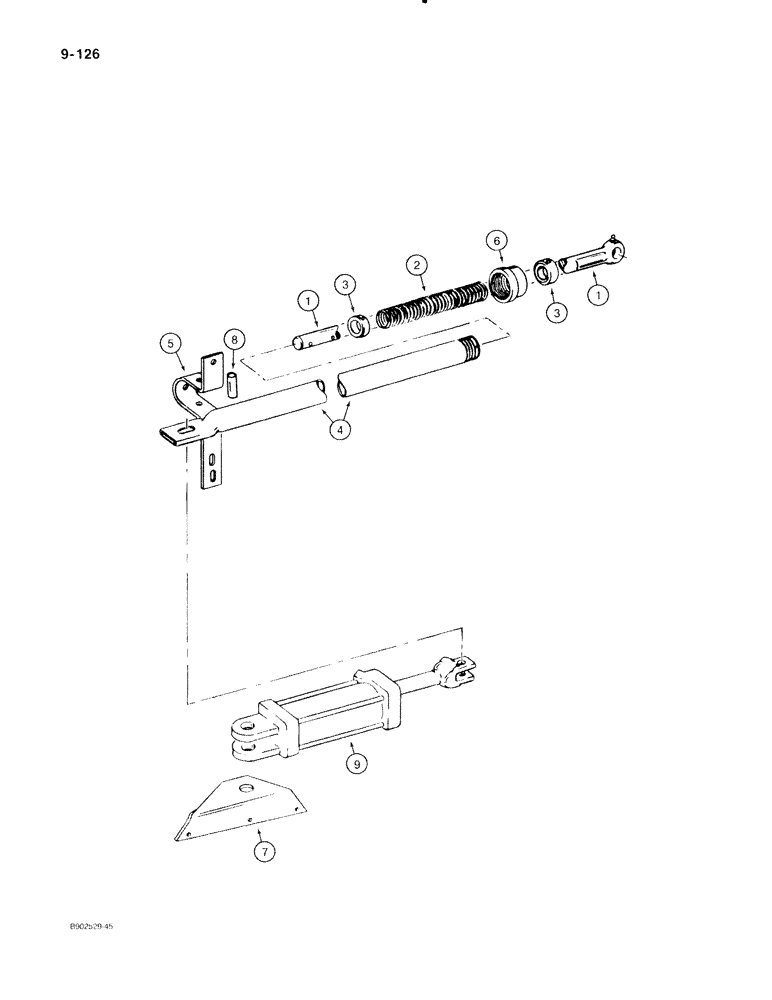

Запчасти Case IH 530 (9-126) - HYDRAULIC END GATE CONTROLS, MODELS 530, 540 AND 550, BUILT 1977 THROUGH 1979 (08) - HYDRAULICS

1

821799C1

BOLT,Eye, 1/8" - 27 x 25", Drilled

- eye, end gate conrol

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

2

602416R1

SPRING

- end gate control bolt

1шт.

3

820662C1

BUSHING

- spring stop

2шт.

138-2053

PIN,1/4" x 1 1/4", Coiled

2шт.

4

821800C1

PIPE

- cylinder push rod, used on Models 530 and 540

1шт.

4

821823C1

PIPE

- cylinder push rod, used on Model 550 only

1шт.

5

821769C1

SUPPORT

- push rod pipe

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

6

820663C1

CAP

- pipe

1шт.

7

820626C1

ANCHOR

- end gate control cylinder

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

8

11531N

SPACER,3/8" Pipe x 2"

- pipe, 3/8 x 2 inch

1шт.

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - 3-1/2 ID x 8 inch stroke, for correct assembly and components see pages 8-5 through 8-17

1шт.
