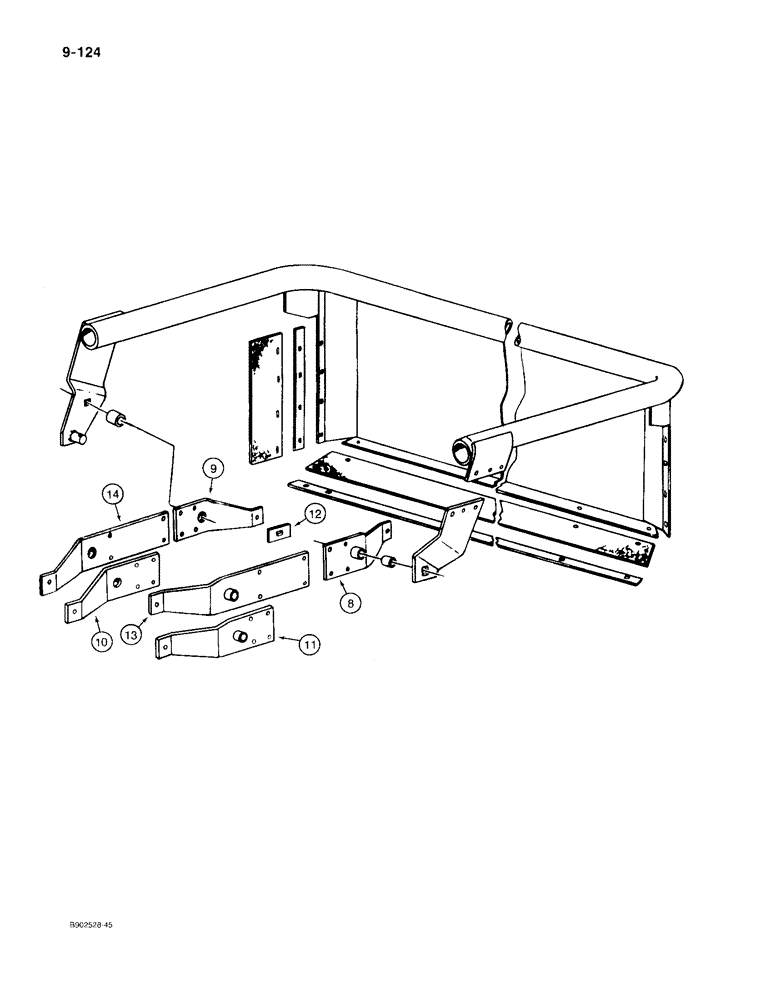

Запчасти Case IH 530 (9-124) - HYDRAULIC END GATE, BUILT 1977 AND AFTER (08) - HYDRAULICS

8

820613C2

SUPPORT

- end gate pivot, left-hand, used on Models 550 and 560 without upper beater

1шт.

9

820612C2

SUPPORT

- end gate pivot, right-hand, used on Models 550 and 560 without upper beater

1шт.

10

820613C2

SUPPORT

- end gate pivot, right-hand, used on Models 550 and 560 with upper beather

1шт.

11

820612C2

SUPPORT

- end gate pivot, left-hand, used on Models 550 and 560 with upper beater

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, in support hub

2шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, , Pivot support to box main sides and reinforcement bar Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

12

594410R2

BAR

- support reinforcing

2шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Pivot support to box main side center vertical support Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

13

821817C1

SUPPORT

- end gate pivot, left-hand, used on Models 530 and 540

1шт.

14

821818C1

SUPPORT

- end gate pivot, right-hand, used on Models 530 and 540

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, in support hub

2шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, , Pivot support to box main sides and reinforcement bar Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.
