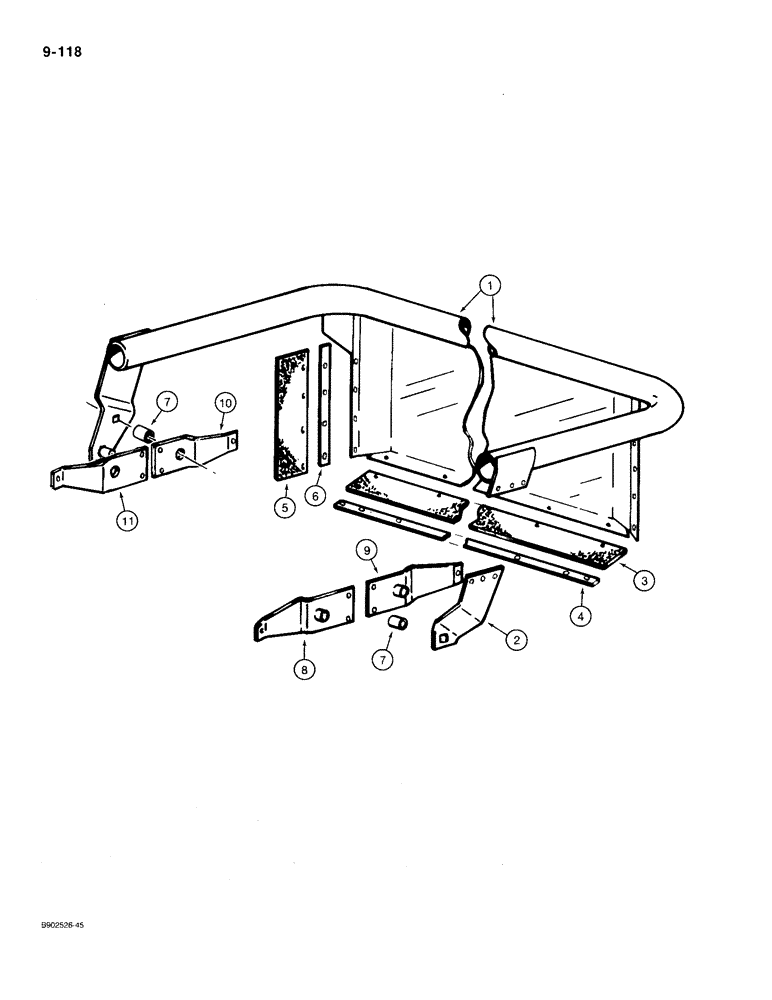

Запчасти Case IH 530 (9-118) - HYDRAULIC END GATE, MODELS 530, 540 AND 550, BUILT 1972 THROUGH 1976 (08) - HYDRAULICS

1

820600C3

GUIDE

GATE - end, use on Model 530 only

1шт.

1

820601C3

GUIDE

GATE - end, use on Models 540 and 550

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Left-hand pivot to end gate

3шт.

492-11038

LOCK WASHER,3/8"

3шт.

2

820611C1

PIVOT

- end gate, left-hand

1шт.

3

820619C1

SEALING STRIP

- end gate bottom seal, use on Model 530 only

1шт.

3

820621C1

SEALING STRIP

- end gate bottom seal, use on Models 540 and 550

1шт.

4

820620C1

BAR

- seal strip retaining, use on Model 530 only

1шт.

4

820622C1

BAR

- seal strip retaining, use on Models 540 and 550

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch, Retaining bar and seal strip to end gate bottom

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch, retaining bar and seal strip to end gate bottom, five used on Model 530, six used on Models 540 and 550

5-6шт.

425-106

NUT,3/8"-16, Cl 5

5-6шт.

492-11038

LOCK WASHER,3/8"

5-6шт.

5

820618C1

SEALING STRIP

- end gate side seal

2шт.

6

820617C1

BAR

- side seal retaining

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, retaining bar and seal strip to end gate sides

8шт.

425-106

NUT,3/8"-16, Cl 5

8шт.

492-11038

LOCK WASHER,3/8"

8шт.

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

BOLT - carriage, 5/8 NC x 3 inch, end gate pivot

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

4шт.

7

820645C1

BUSHING

- end gate pivot

2шт.

8

820612C2

SUPPORT

- end gate pivot, left-hand, used on Models 530 and 540

1шт.

9

820613C2

SUPPORT

- end gate pivot, left-hand, used on Models 550

1шт.

10

820612C2

SUPPORT

- end gate pivot, right-hand, used on Models 550

1шт.

11

820613C2

SUPPORT

- end gate pivot, right-hand, used on Models 530 and 540

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, in support hub

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Pivot support to box main sides and reinforcement bar

2шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

2шт.
