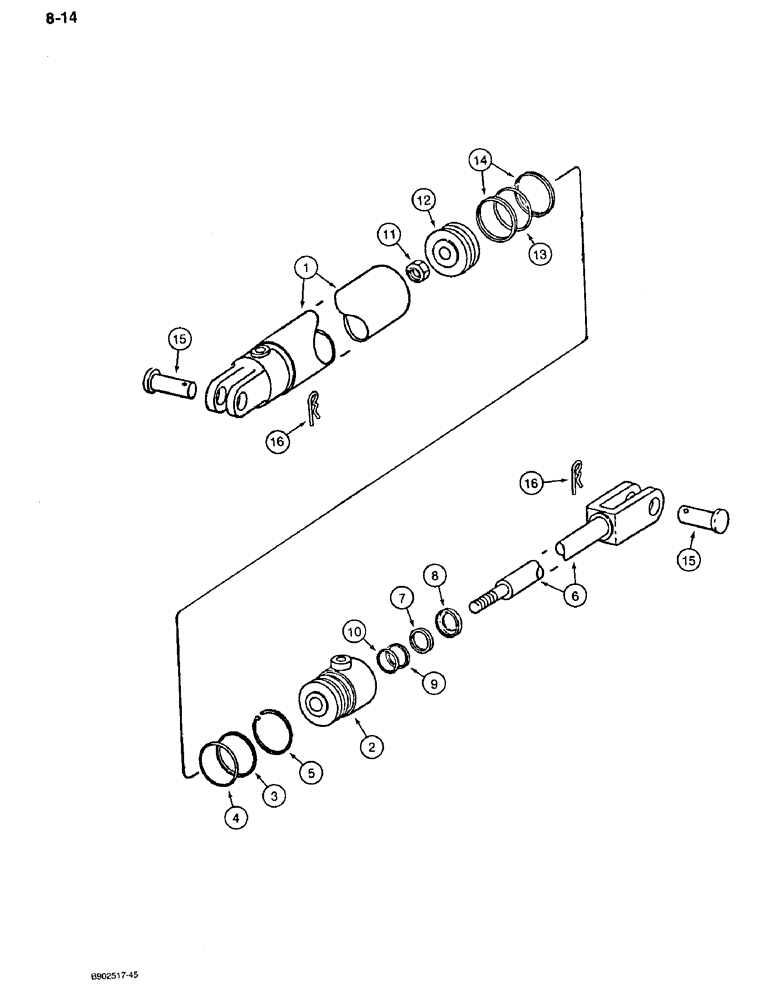

Запчасти Case IH 530 (8-014) - ENDGATE LIFT CYLINDER, 546719R91, WELDED DOUBLE ACTING, 3-1/2 ID X 8 INCH STROKE (08) - HYDRAULICS

546719R91

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke, endgate lift, no longer available, for service order 1272147C91 cylinder plus (2) 1252129C1 adapters and (2) 237-6008 O-rings, see page 8-7

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 1/8 inch wide, gland

1шт.

Part of seal kit P/N 547725R91.

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 547725R91.

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, gland

1шт.

Part of seal kit P/N 547725R91.

1шт.

6

547719R1

ROD

- piston

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 547725R91.

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - wiper

1шт.

Part of seal kit P/N 547725R91.

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 ID x 1/8 inch wide, piston rod

1шт.

Part of seal kit P/N 547725R91.

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, piston rod O-ring

1шт.

Part of seal kit P/N 547725R91.

1шт.

11

9413974

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NF

1шт.

12

547724R1

PISTON

- cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3-1/8 ID x 3/16 inch wide, piston

1шт.

Part of seal kit P/N 547725R91.

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of seal kit P/N 547725R91.

1шт.

15

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - cylinder pivot, replaces 61571C1 pin and 547659R1 pin by also ordering 520175R1 hair pin, Ref. 16

2шт.

16

520175R1

CLIP

PIN - hair, 3/16 inch diameter, replaces 547660R1 retainer by also ordering 28543R1 pin, item 15

2шт.

547725R91

SEAL KIT

KIT - seal, includes Ref. 3 - 5, 7 - 10, 13 and 14

1шт.
