Запчасти Case IH 530 (9-116) - SPRING BAR, MODELS 530, 540 AND 550, BUILT 1972 THROUGH 1976 (06) - POWER TRAIN

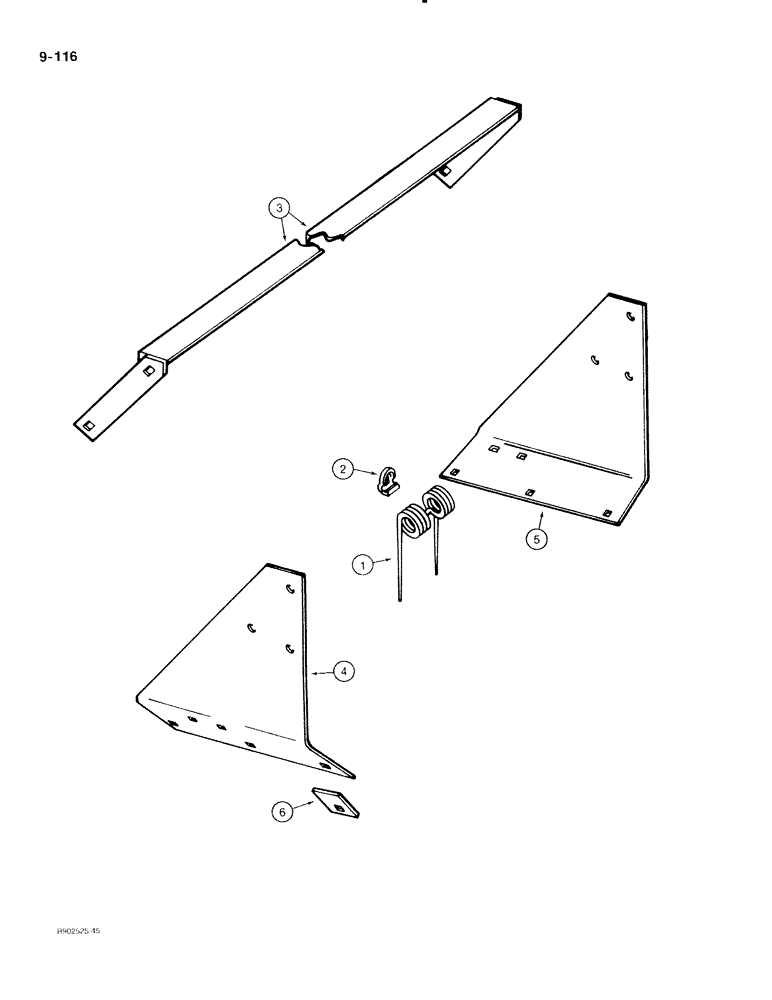

Схема запчастей Case IH 530 - (9-116) - SPRING BAR, MODELS 530, 540 AND 550, BUILT 1972 THROUGH 1976 (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

R1007RF

SPRING - bar, seven used on Model 530, nine used on Models 540 and 550

7-9шт.

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - carriage, 5/16 NC x 1-1/4 inch

7-9шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

7-9шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7-9шт.

2

NSS

NOT SOLD SEPARAT

RETAINER - spring, no longer available

7-9шт.

3

NSS

NOT SOLD SEPARAT

ANGLE - spring bar, no longer available

1шт.

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

NSS

NOT SOLD SEPARAT

SUPPORT - spring bar, left-hand, no longer available

1шт.

5

NSS

NOT SOLD SEPARAT

SUPPORT - spring bar, right-hand, no longer available

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

6

NSS

NOT SOLD SEPARAT

BAR - support rear spacer, no longer available

2шт.

Выбрано товаров: 15
