Запчасти Case IH 530 (9-052) - SIDE MAIN DRIVE SHAFT SHIELDS AND SUPPORTS, USED ON ALL MODELS EXCEPT 560 (06) - POWER TRAIN

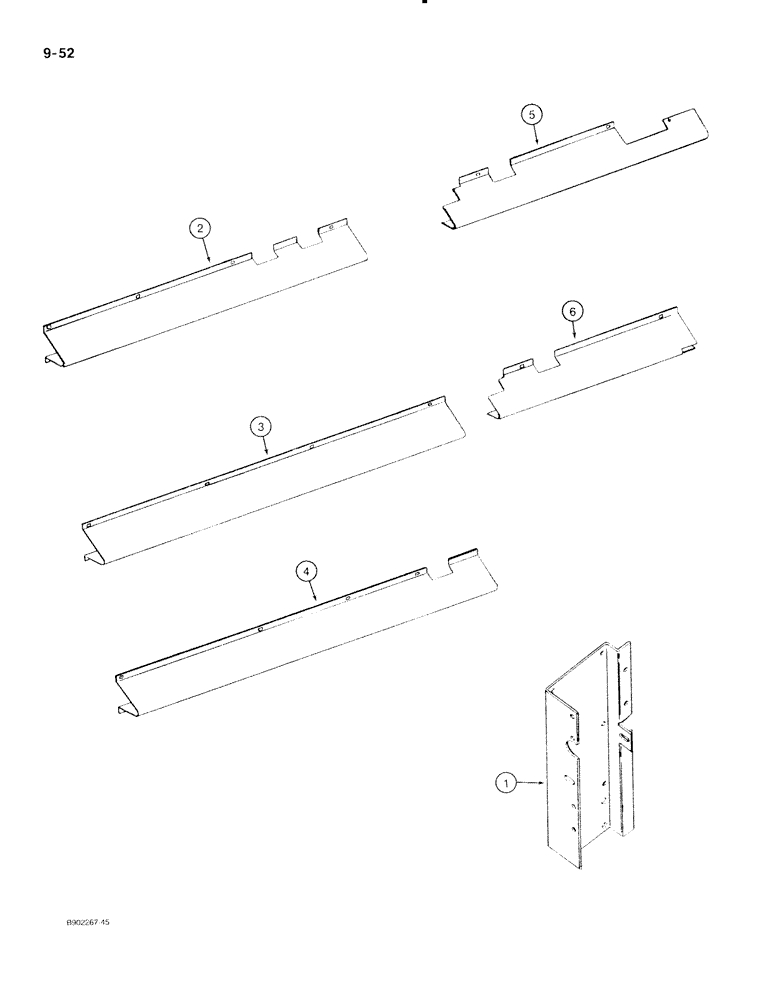

Схема запчастей Case IH 530 - (9-052) - SIDE MAIN DRIVE SHAFT SHIELDS AND SUPPORTS, USED ON ALL MODELS EXCEPT 560 (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

820239C1

SUPPORT

- rear drive

1шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1 - 1/2 inch, rear crossmember to rear left-hand side and rear drive support

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch, main and left - hand side to rear drive support

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, bottom side support left-hand angle to main and rear sides and rear drive support

2шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

2

821066C2

SHIELD

- side drive shaft, front, used on Models 530 and 540 only

1шт.

3

821067C1

SHIELD

- side drive shaft, front, used on Model 550 only prior to 1977 season

1шт.

4

821822C1

SHIELD

- side drive shaft, front, used on Model 550 only, 1977 season and after

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch, front shields to box sides

8шт.

425-106

NUT,3/8"-16, Cl 5

8шт.

492-11038

LOCK WASHER,3/8"

8шт.

5

821065C1

SHIELD

- side drive shaft, rear, used on Models 530 and 540 only

1шт.

6

821068C1

SHIELD

- side drive shaft, rear, used on Model 550 only

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch, rear shields to box sides

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

Выбрано товаров: 19
