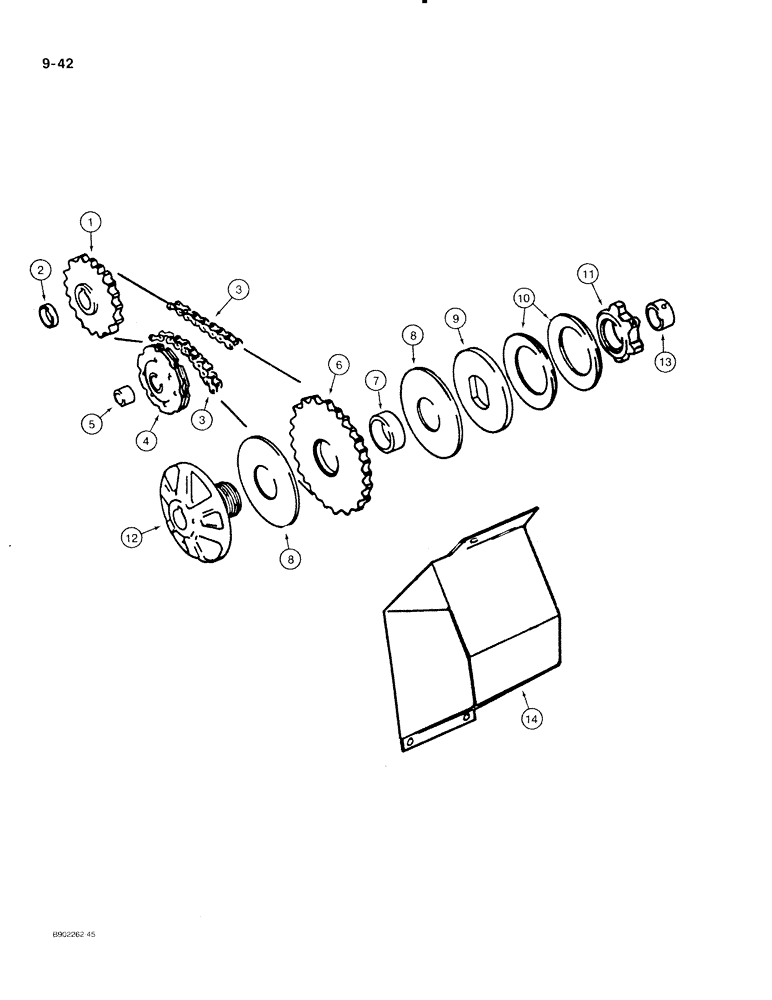

Запчасти Case IH 530 (9-042) - MAIN DRIVE CHAIN AND CLUTCH, 540 RPM, USED ON ALL MODELS EXCEPT 560 (06) - POWER TRAIN

1

820266C1

SPROCKET ASSY.

SPROCKET - main drive, 20 teeth, for front main drive shaft parts, see page 9-37

1шт.

617941R1

PIN,5/16" x 2", Coiled

Sprocket to main drive front shaft 5/16" x 2", Coiled

1шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

2

820502C1

SPACER

- drive sprocket, use on Model 530 only

1шт.

2

820503C1

SPACER

- drive sprocket, use on Models 540 and 550

1шт.

3

REF

INSTRUCTION

CHAIN ASSEMBLY - main drive, Model 530 only, use (49) links of 569090R91 roller chain (see below) and (1) 578368R91 connecting link

1шт.

3

REF

INSTRUCTION

CHAIN ASSEMBLY - main drive, Models 540 and 550, use (55) links of 569090R91 roller chain (see below) plus (1) 587368R91 connecting link and (1) 567009R91 offset link

1шт.

4

820290C91

SPROCKET ASSY.

SPROCKET - main drive, chain tightener, 8 teeth

1шт.

5

23223R1

SPACER,3/4" X-Strng Pipe x 5/8"

- 3/4 x 5/8 inch, extra strong pipe

1шт.

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch, sprocket and spacer to drive shaft, rear bearing support

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

6

820247C91

SPROCKET ASSY.

SPROCKET - main drive clutch, 31 teeth

1шт.

7

592954R2

BUSHING

- clutch sprocket

1шт.

8

95909C1

FACING

- clutch, replaces 592952R1 facing

2шт.

9

592955R1

PLATE

- clutch

1шт.

10

820669C1

WASHER

- thrust, clutch

2шт.

11

592957R1

COLLAR

- clutch locking

1шт.

12

592951R2

HUB

- clutch

1шт.

T14185

KEY - square parallel, 1/4 x 2-3/4 inch, clutch hub to main drive side shaft 1/4" Sq x 2 3/4", Par

1шт.

13

611902R2

COLLAR

- drive clutch retaining

1шт.

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - hex socket headless, 5/16 x 3/8 inch, cup point, collar to shaft

2шт.

495-81191

WASHER,1 5/32" x 2" x .060"

- flat, 1-5/32 x 2 x 3/64 inch, between clutch and front bearing

1шт.

14

820367C1

SHIELD

- main drive clutch

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Clutch shield to LH front side support and box main side Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

569090R91

CHAIN (AG)

CHAIN - bulk, 1-1/2 inch x 10 foot

1шт.
