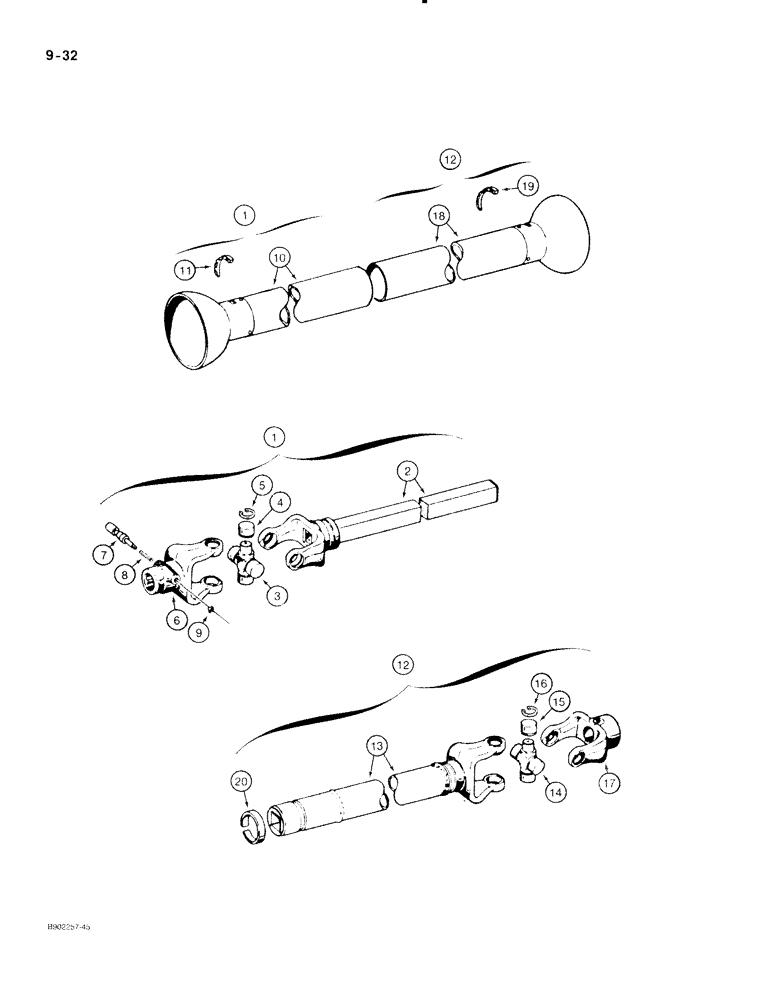

Запчасти Case IH 530 (9-032) - DRIVE SHAFT, ROCKWELL, 540 RPM (06) - POWER TRAIN

1

820684C91

SHAFT ASSEMBLY - drive, front half, not available for service

1шт.

2

820686C1

YOKE - with shaft, not available for service

1шт.

757443

U-JOINT SPIDER

JOINT ASSEMBLY - center, replaces 669564R91 universal joint assembly

1шт.

3

NSS

NOT SOLD SEPARAT

CROSS - center

1шт.

4

669565R91

CAP

BEARING - center cross

4шт.

5

661657R1

RING

- snap, cross retaining, if used

4шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

6

459463R91

YOKE

ASSEMBLY - quick detachable

1шт.

455346R21

PIN

ASSEMBLY - locking

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - yoke lock

1шт.

8

455347R1

VALVE SPRING

SPRING - lock pin

1шт.

9

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- locking pin

1шт.

10

820688C1

SHIELD

- outer

1шт.

Ref #10, 820688C1, is made by NEAPCO, (If it has 3 slots instead of two on the bell shield) you will need to order 700706872, bearing for the sheild (ref #11 & 19 part numbers 549626C1.) bj 2-16-96

1шт.

11

549626R1

BEARING

- shield

2шт.

12

820685C91

SHAFT ASSEMBLY - drive, rear half

1шт.

13

820687C1

YOKE - with tube 17.75" Length

1шт.

757443

U-JOINT SPIDER

JOINT ASSEMBLY - center, replaces 669564R91 universal joint assembly

1шт.

14

NSS

NOT SOLD SEPARAT

CROSS - center

1шт.

15

669565R91

CAP

BEARING - center cross

4шт.

16

661657R1

RING

- snap, cross retaining, if used

4шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

17

820690C1

YOKE - with keyway

1шт.

18

820689C1

SHIELD

- inner

1шт.

19

549626R1

BEARING

- shield

2шт.

20

58697C1

SHIELD

BUSHING - shield support

1шт.

617943R1

PIN,5/16" x 2 1/2", Coiled

1шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.
