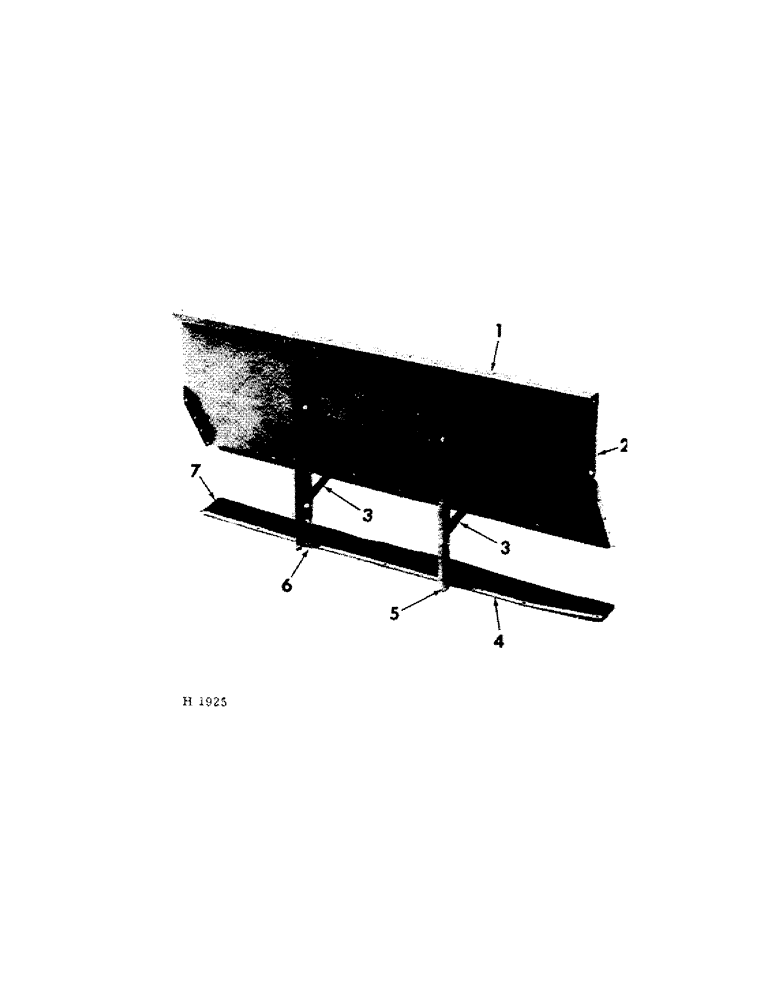

Запчасти Case IH 320 (M-05) - SPREADER BOX FRONT
№
Артикул
Название
Примечание
Количество
1
592900R1
CHANNEL, front top
1шт.
18508R11
BOLT
W/NUT, 3/8 x 3/4" cd-pltd crg
3шт.
17351R11
BOLT
W/NUT, 3/8 x 1" cd-pltd crg
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
7шт.
2
592899R1
SIDE, front
1шт.
18508R11
BOLT
W/NUT, 3/8 x 3/4" cd-pltd crg
4шт.
18684R11
BOLT
W/NUT, 3/8 x 1-1/2" cd-pltd crg
6шт.
18779R11
BOLT
W/NUT, 3/8 x 1-1/2" cd-pltd
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
12шт.
3
592898R1
SUPPORT, front side
2шт.
18494R11
SCREW
BOLT W/NUT, 3/8 x 1" cd-pltd
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
4
592902R1
STRIP
bottom cover
1шт.
18508R11
BOLT
W/NUT, 3/8 x 3/4" cd-pltd crg
5шт.
17351R11
BOLT
W/NUT, 3/8 x 1" cd-pltd crg
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
7шт.
5
592885R1
ANGLE
front side support LH
1шт.
17433R11
BOLT W/NUT, 1/2 x 1" cd-pltd
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
6
592884R1
ANGLE, front side support RH
1шт.
17433R11
BOLT W/NUT, 1/2 x 1" cd-pltd
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
7
592901R1
COVER
front side bottom
1шт.
18508R11
BOLT
W/NUT, 3/8 x 3/4" cd-pltd crg
5шт.
17351R11
BOLT
W/NUT, 3/8 x 1" cd-pltd crg
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
7шт.
Выбрано товаров: 26
