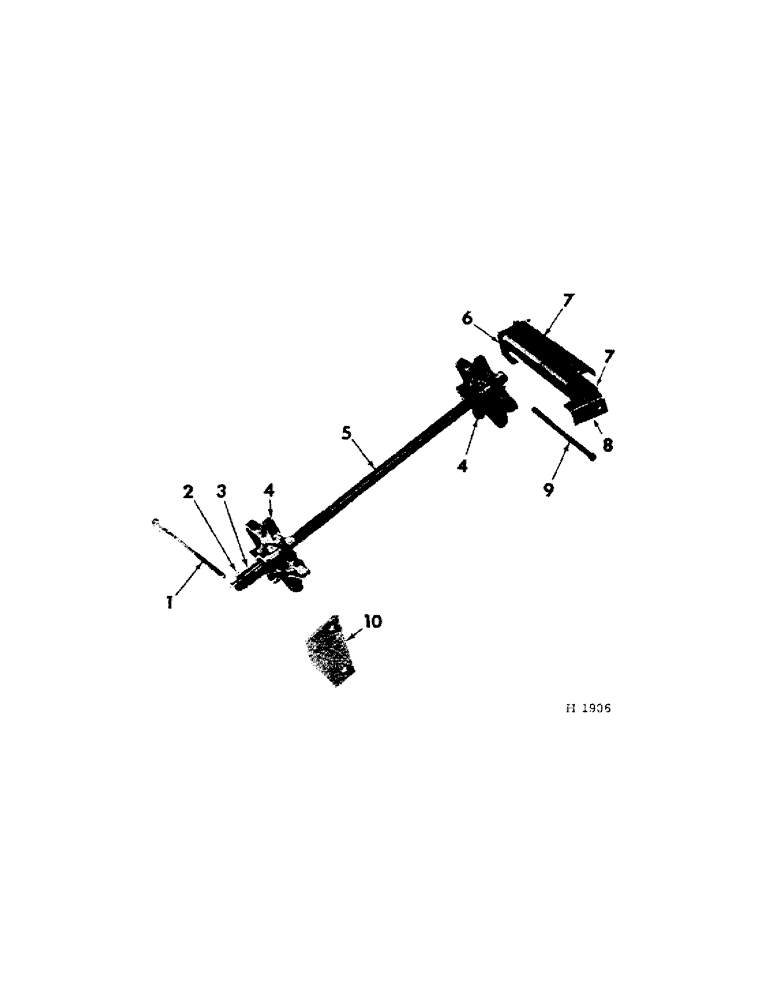

Запчасти Case IH 320 (M-05[A]) - FRONT APRON SHAFT

1

619685R1

BOLT

apron chain tightener (7/16 x 10" cd-pltd bolt)

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16" cd-pltd

4шт.

2

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga cd-pltd

10шт.

3

592993R1

SPACER

front apon shaft

2шт.

4

612976R1

SPROCKET ASSY.

SPROCKET, 7T apron shaft

4шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUB-FITTING, 1/8"-90deg. elbow

4шт.

5

592992R1

SHAFT, front apron

2шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga cd-pltd

10шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

6шт.

6

592997R1

SUPPORT, center tightener rear mounting

1шт.

17442R11

BOLT W/NUT, 1/2 x 1-1/8" cd-pltd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

592998R1

CHANNEL, shaft center tightener

2шт.

19573R11

BOLT

W/NUT, 3/8 x 7/8" cd-pltd

1шт.

19427R11

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

592996R1

ANGLE, center tightener front mounting

1шт.

19573R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" cd-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

592995R1

BOLT,Hex, 7/16" x 8 3/4"

apron chain tightener 7/16 x 8-3/4" cd-pltd bolt

2шт.

21029R1

WASHER

15/32 x 1 x 11 ga cd-pltd

2шт.

10

592994R1

BLOCK, shaft outer tightener

2шт.

17465R11

BOLT W/NUT, 1/2 x 1-3/8" cd-pltd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.
