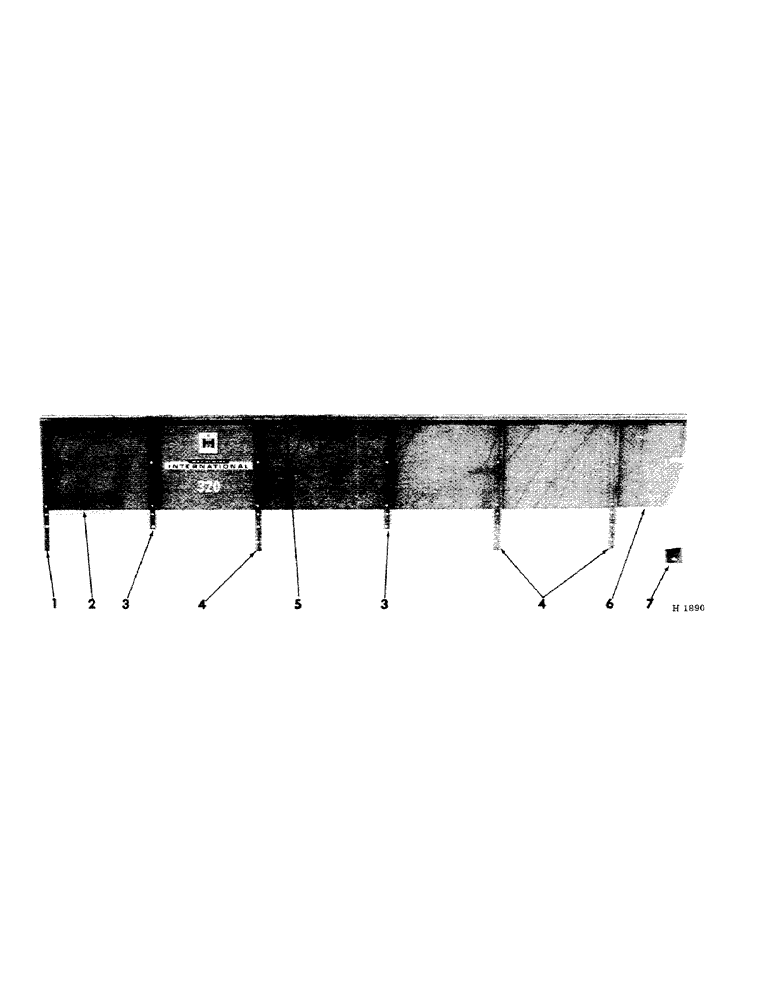

Запчасти Case IH 320 (M-04) - SPREADER BOX SIDE

1

592896R1

POST, front corner LH

1шт.

1

592897R1

POST, front corner RH

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" cd-pltd mach

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

2

592881R1

BOARD, side LH

1шт.

2

592882R1

BOARD, side RH

1шт.

19432R1

BOLT W/NUT, 3/8 x 1-3/8" cd-pltd crg

18шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

18шт.

3

592884R1

ANGLE, 1st & 3rd LH

2шт.

3

592885R1

ANGLE

1st & 3rd RH

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" cd-pltd mach

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

4

592886R1

ANGLE, 2nd & 4th & 5th LH

3шт.

4

592887R1

ANGLE

2nd & 4th & 5th RH

3шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" cd-pltd mach, (12 - LH; 11 - RH)

1шт.

120384

WASHER,1/2"

LOCK, (12 - LH; 11- RH) 1/2"

1шт.

5

592892R1

CHANNEL, top LH

1шт.

5

592893R1

CHANNEL, top RH

1шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

6шт.

19433R1

BOLT W/NUT, 3/8 x 1-1/2" cd-pltd crg

12шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT W/NUT, 3/8 x 1-3/4" cd-pltd crg

12шт.

469668R1

WASHER

WASH, 13/32 x 3/4 x 16 ga cd-pltd

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (30) 3/8"

1шт.

6

592888R1

SIDE, rear LH

1шт.

6

592889R1

SIDE, rear RH

1шт.

19433R1

BOLT W/NUT, 3/8 x 1-1/2" cd-pltd crg

4шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" cd-pltd crg

4шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT W/NUT, 1/2 x 1-1/4" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

7

592883R1

STRIP

board support (4 - LH; 5 - RH)

1шт.

19573R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" cd-pltd mach, (4 - LH, 5 - RH)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (4 - LH; 5 - RH) 3/8"

1шт.
