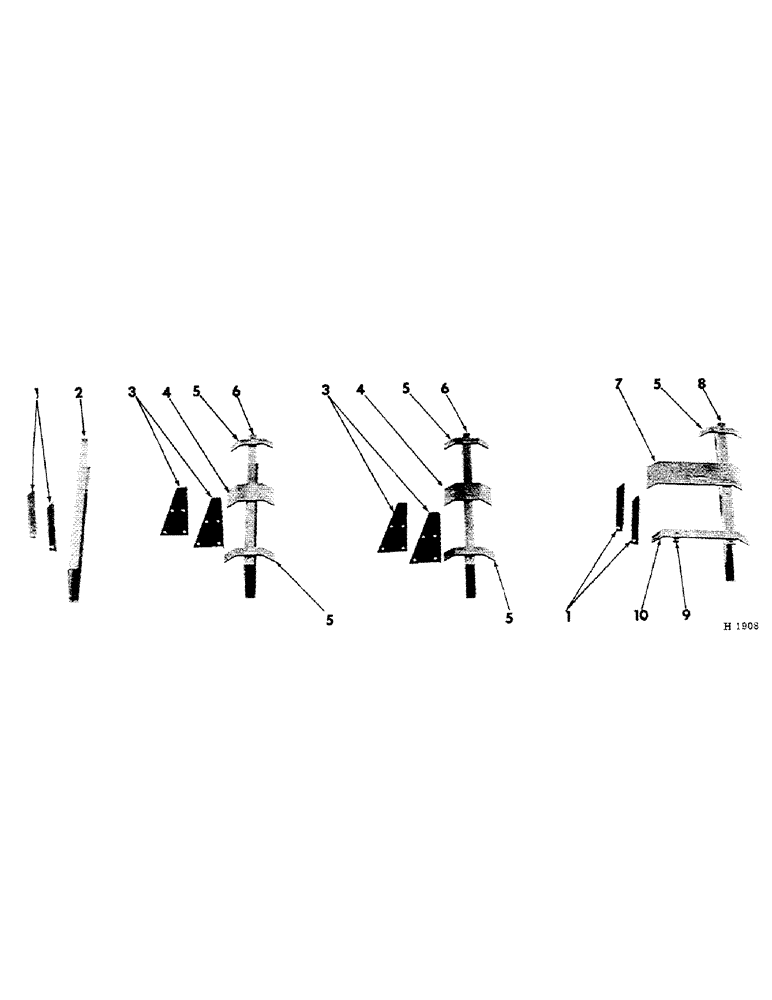

Запчасти Case IH 320 (M-03) - SPREADER BOX BOTTOM SUPPORTS

1

592851R1

ANGLE, cross channel mounting LH

4шт.

1

592852R1

ANGLE

cross channel mounting RH

4шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" cd-pltd mach

14шт.

19278R1

BOLT W/NUT, 1/2 x 4-3/4" cd-pltd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

18шт.

2

592854R1

CHANNEL, bottom first cross

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" cd-pltd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

592835R1

SUPPORT, cross channel mounting LH

4шт.

3

592836R1

SUPPORT

cross channel mounting RH

4шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" cd-plt mach

16шт.

19278R1

BOLT W/NUT, 1/2 x 4-3/4" cd-pltd mach

8шт.

120384

WASHER,1/2"

LOCK, (24) 1/2"

1шт.

4

592841R1

VALVE BLOCK

SECTION, chain raising center

2шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT W/NUT, 3/8 x 1" no. 3 cd-pltd plow

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

592860R1

SUPPORT

apron chain raising outer

5шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT W/NUT, 3/8 x 1" no. 3 cd-pltd plow

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

6

592857R1

CHANNEL, second & third cross

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" cd-pltd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

7

592862R11

GUIDE

gear case chain raising

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT W/NUT, 3/8 x 1" no. 3 cd-pltd plow

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

592859R1

CHANNEL

bottom fourth cross

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" cd-pltd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

592865R1

BAR

outer rear support LH

1шт.

19573R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" cd-pltd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

592861R1

SUPPORT

chain raising outer rear LH

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT W/NUT, 3/8 x 1" no. 3 cd-pltd plow

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
