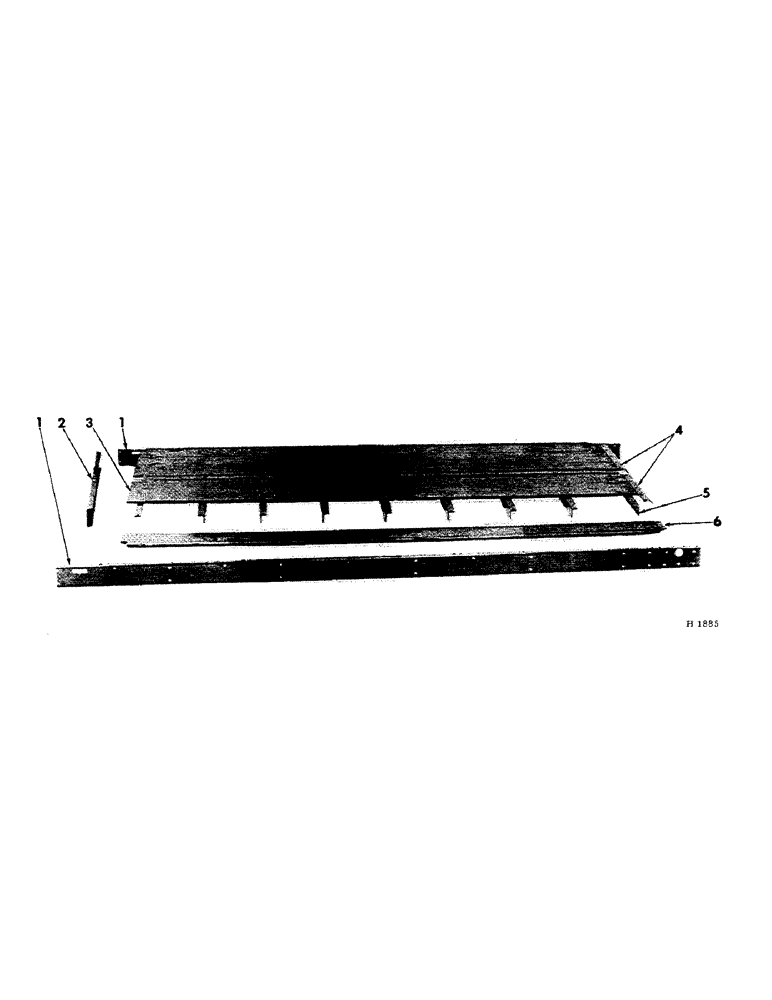

Запчасти Case IH 320 (M-02) - SPREADER BOX BOTTOM

1

592868R1

CHANNEL, bottom side LH

1шт.

1

592869R1

CHANNEL, bottom side RH

1шт.

2

592895R1

CHANNEL, box front

1шт.

3

592876R1

BOARD, bottom center

1шт.

19433R1

BOLT W/NUT, 3/8 x 1-1/2" cd-pltd crg, (45)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (45) 3/8"

1шт.

4

592877R1

SHIELD, bottom board LH

1шт.

4

592878R1

SHIELD, bottom board RH

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT W/NUT, 5/16 x 1-1/4" cd-pltd crg

10шт.

134238R1

WASHER

11/32 x 1 x 16 ga cd-pltd

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

5

592870R1

ANGLE, board support

9шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT W/NUT, 1/2 x 1-1/4" cd-pltd crg

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

6

592873R1

BOARD, bottom outer LH

1шт.

6

592874R1

BOARD, bottom outer RH

1шт.

19433R1

BOLT W/NUT, 3/8 x 1-1/2" cd-pltd crg, (30)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (30) 3/8"

1шт.
