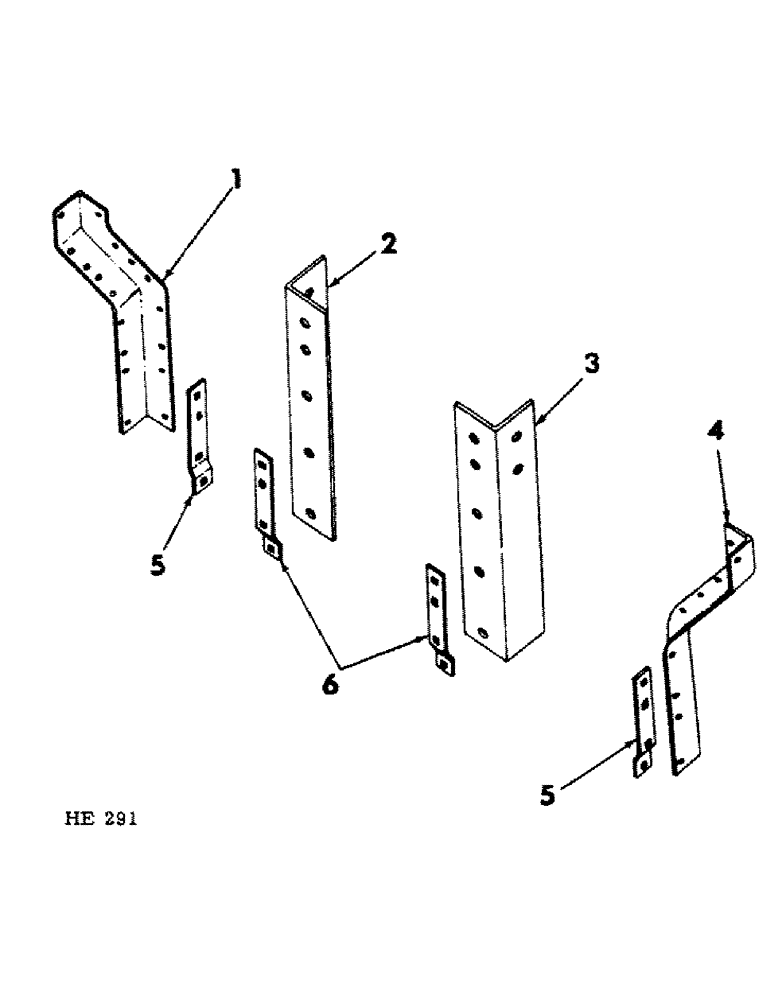

Запчасти Case IH 320 (M-27) - FORAGE BOX FRONT SIDE SUPPORTS

1

594898R1

SUPPORT, front side corner LH

1шт.

18685R11

BOLT

W/NUT, 3/8 x 1-1/2" cd-pltd crg

13шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

13шт.

18687R11

BOLT

W/NUT, 3/8 x 2-3/4" cd-pltd crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.

2

594900R1

ANGLE

front side support LH

1шт.

18695R11

BOLT

W/NUT, 3/8 x 1-1/2" cd-pltd crg

2шт.

17142R11

BOLT

W/NUT, 3/8 x 3-1/2" cd-pltd crg

1шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

3

594901R1

ANGLE

front side support RH

1шт.

18685R11

BOLT

W/NUT, 3/8 x 1-1/2" cd-pltd crg

13шт.

17142R11

BOLT

W/NUT, 3/8 x 3-1/2" cd-pltd crg

1шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

4

594899R1

SUPPORT, front side corner RH

1шт.

18685R11

BOLT

W/NUT, 3/8 x 1-1/2" cd-pltd crg

13шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

3шт.

18687R11

BOLT

W/NUT, 3/8 x 2-3/4" cd-pltd crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.

5

594891R1

BRACE, front side corner support angle

2шт.

18422R11

BOLT

W/NUT, 3/8 x 1-3/4" cd-pltd crg

6шт.

18479R11

BOLT W/NUT, 3/8 x 2" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

6

594891R1

BRACE, front side support angle

2шт.

18422R11

BOLT

W/NUT, 3/8 x 1-3/4" cd-pltd crg

4шт.

18684R11

BOLT

W/NUT, 3/8 x 1-1/4" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.
